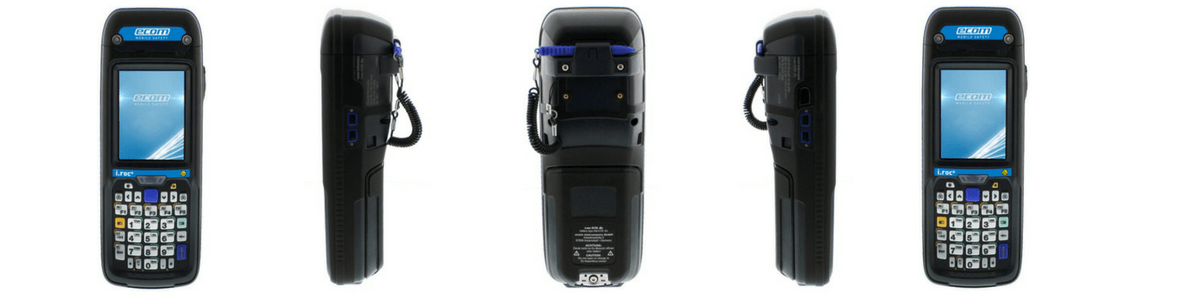

ATEX Handheld Computer Zone 1 / Zone 21 & Div 1 Hazardous Area – Ecom I.ROC Ci70-EX Handheld Computer

ATEX Handheld Computer Zone 1 Zone 21 & Div 1 Hazardous Area – Ecom I.ROC Ci70-EX Handheld Computer

ATEX Handheld Computer Zone 1 Zone 21 & Div 1 Hazardous Area – Ecom I.ROC Ci70-EX Handheld Computer

ATEX Certified Hazardous Area Handheld Computers

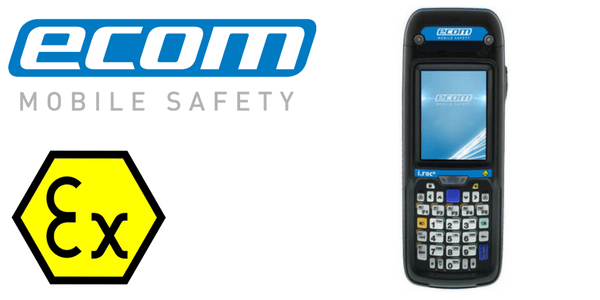

Ecom I.ROC Ci70-EX Handheld Computer

Zone 1 & Zone 21 Division 1

Hazardous Area Locations

  • ATEX Certification
  • II 2 G ia IIC T4 Gb IP64
  • II 2 D ia IIIC T135°C Db IP6X
  • I M1 Ex ia I Ma

Ecom I.ROC Ci70-EX hazardous area ATEX certified PDA is a state of the art mobile computer. With ATEX / IECEx Zone 1/21 and Class I, II, III, Division 1 approval, the Ecom I.ROC Ci70-EXhandheld PDA is safe for use in a wide range of hazardous areas.

With a flexible, modular head system and an extremely long service life, due to its inherent ruggedness and wear-resistance, the Ecom I.ROC Ci70-EX PDA is designed to provide hazardous area Zone 1 connectivity.

ATEX HANDHELD COMPUTER

Ecom I.ROC CI70-EX Key Features

Ecom I.ROC Ci70-EX handheld computer provides safe mobile communications for hazardous area workers: –

  • Classified as the world’s first Zone 1 and Class 1, Division 1 certified handheld computer with complete WLAN standard (IEEE 802.11 a/b/g/n)
  • The unique modular concept of the i.roc® Ci70 -Ex combines state-of-the-art technology with a flexible, modular head system for all kinds of data acquisition systems: (LF, HF and UHF RFID with 1D Barcode Laser Scanner and 2D Multi-Range Barcode Imager)
  • The world’s first Zone 1 and Class 1, Division 1 certified PDA with wide-area network (WWAN 3G UMTS or CDMA)
  • The world’s only PDA with global explosion protection approval for ATEX / IECEx Zone 1 and NEC Class I, Division 1, combined in a single device

    ATEX Handheld Computer

    ATEX Handheld Computer

  • The unique modular concept of the i.roc® Ci70 -Ex combines state-of-the-art technology with a flexible, modular head system for all kinds of data acquisition systems: (LF, HF and UHF RFID with 1D Barcode Laser Scanner and 2D Multi-Range Barcode Imager)
  • A large selection of peripherals and accessories make the Ecom i.roc® Ci70 -Ex a comprehensive solution
Ecom I.ROC C170-EX Handheld Computer

Ecom I.ROC C170-EX Handheld Computer

ATEX Handheld computer ZONE 1 HAZARDOUS AREA

ECOM I.ROC C170-EX Handheld Computer Technical Data

Ecom I.ROC Ci70-EX Handheld Computer – Connectivity
Physical Characteristicsincl. battery weight approx. 900 grams (2 pounds)
225 x 85 x 58 mm (8.8 x 3.3 x 2.3 inches) (standard configuration)
249 x 85 x 58 mm (9.8 x 3.3 x 2.3 inches) (with optional head modul)
EnvironmentalOperating Temperature -20 °C … +50 °C (-4 °F … +120 °F)
Storage Temperature -20 °C … +60 °C (-4 °F … +140 °F)
Drop Specifications 1.20 m (4 feet) according to MIL-STD-810G at -20 °C and +50 °C (-4 °F and +120 °F)
Electrostatic Discharge +/- 8 KV contact discharge and +/- 15KV air discharge
Rain and Dust Resistance IP65
PowerBattery 3.7 V, 4.000 mAh ∙ IEEE 1725 compliant ∙ Li-Ion ∙ swappable
Operating SystemWindows® Embedded Handheld 6.5.3
ProcessorOMAP Multi Core Processor 1GHz
Memory and Storage512 MB RAM, 1 GB Flash Memory,
Customer-accessible micro-SD slot for removable memory cards up to 32 GB
Display3.5 inches, VGA (480 x 640 pixels), 65.536 colors, ambient light sensor, LED backlight, transmissive TFT-LCD touchscreen display, highly durable due to Gorilla® Glass
InterfacesUSB – Full Speed 2.0 Client ∙ IrDA
WLANIEEE 802.11 a/b/g/n ∙ IEEE 502.11d ∙ Security: WPA2, WEP, TKIP, AES;
Authentication OPEN, SHARED-KEY, PEAP (MS-CHAP V2, Generic Token Card (GTC), MD5), TLS, TTLS (PAP, CHAP, MS-CHAP, MS-CHAP V2, PAP/Token Card, EAP with GTC), LEAP, FAST ∙ Cisco CCXv4 compliant
Wireless WAN3G WWAN for data communications: UMTS/HSDPA/HSUPA (14.4 Mbps D/L, 5.76 Mbps U/L peak); Frequencies: 850, 900, 1800, 1900 MHz
CDMA/EV-DO Rev A (3.1 Mbps D/L, 1.8 Mbps U/L peak); Frequencies: 800, 850, 1900, 2100 MHz
GSM, GPRS, EDGE; Frequencies: 850, 900, 1800, 1900 MHz
Bluetooth®Class II, Version 2.1 + EDR ∙ Operating Channels: 0 – 78 (2402 – 2480 MHz) ∙ Data Rates 1, 2, 3 Mbps
AudioLoudspeaker ∙ wireless Bluetooth® headset support ∙ VOIP audio support via headset
GPSgpsOne
Sensor TechnologyAccelerometer: Enables automatic or application-specific features
Head Options2D imager, 1D laser scanner, HF RFID, LF RFID, UHF RFID
KeyboardBacklit numeric or alpha numeric ∙ laser etched hard keycaps
Regulatory Approvals and ConformitySafety: 60950-1
EMC: FCC, CE
Laser: IEC/EN 60825-1 Class 2
Environmental: WEEE, RoHS
Radio: FCC, CE
Battery: UL 1642, IATA
Hazardous Area Certifications
ATEXEX II G ia IIC T4 Gb IP64
EX II D ia IIIC T135°C Db IP6X
IECExEX II G ia IIC T4 Gb IP64
EX II D ia IIIC T135°C Db IP6X
NEC
North America (USA / Canada)
Class I Division 1, Groups A, B, C, D T4
Class II Division 1, Groups E, F, G T4
Class III
Class I Zone 1 IIC T4 – Protection MethodNorth America (USA): AEX ia IIC T4 Gb
North America (Canada): Ex ia IIC T4 Gb
Class II Zone 21 IIIC T135°C – Protection Method (USA)AEx ia IIIC T135°C Db

ATEX Handheld Computer Zone 1 Zone 21 & Div 1 Hazardous Area – Ecom I.ROC Ci70-EX Handheld Computer

ATEX Handheld Computer Zone 1 Zone 21 & Div 1 Hazardous Area – Ecom I.ROC Ci70-EX Handheld Computer - Dimensions

Ecom I.ROC Ci70-EX Handheld Computer – Dimensions

Hazardous Area INTERNATIONAL Certifications

Ecom I.ROC Ci70-EX handheld computer is ATEX certified to most international hazardous area certification bodies:

ATEXATEX (Europe)



  • II 2 G ia IIC T4 Gb IP64
  • II 2 D ia IIIC T135°C Db IP6X
  • I M1 Ex ia I Ma

IECEXIECEx (International)



  • Ex ia IIC T4 Gb IP64
  • Ex ia IIIC T135°C Db IP6X
  • Ex ia I Ma

NCC BrazilINMETRO (Brazil)



  • Ex ia IIC T4 Gb IP64
  • Ex ia IIIC T135 °C Db IP6X

CSAMSHA (United States)



  • Certification: I.S. Approved for use in Methane Air Mixtures
  • Approval No. 23-A 150001-0

japan

TIIS (Japan)



  • Ex ib IIC T4
  • Ex ib IIIC T135°C

south africa

Explolabs (South Africa)



  • Ex ia IIC T4 Gb IP64
  • Ex ia IIIC T135°C Db IP6X
  • Ex ia I Ma -20 °C ≤ Ta ≤ +50 °C

T&D are Main Distributors for the complete range of Ecom Hazardous Area Mobile Communications & Computers – this includes mobile smartphones, tablets and handheld computers.
