ATEX Certified Hazardous Area Handheld Computers

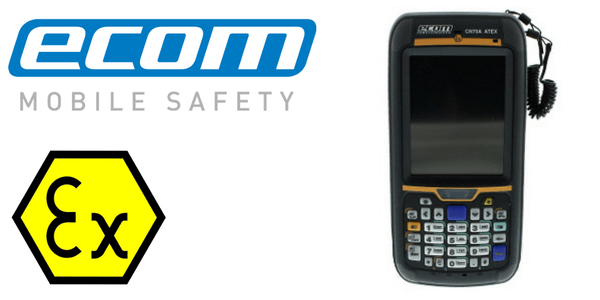

Ecom CN70X ATEX PDA

Zone 2 & Zone 22

Hazardous Area Locations

  • ATEX Certification
  • II 3G Ex ic IIC T4 Gc
  • II 3D Ex ic IIIB T130°C Dc IP54

Ecom CN70X ATEX hazardous area mobile computers (PDA’s) have a no-compromise design and is both highly functional as it is equally rugged and ergonomically designed.

The Ecom CN70A ATEX and Ecom CN70E ATEX’s design is optimized for mobility within the field. Specifically, the Ecom CN70A ATEX is optimal for mobile field service and transportation workers who require both power and performance in a compact form for enable safe working in Zone 2 hazardous areas.

The Ecom CN70E ATEX mobile computer offers excellent power-packed computing power with a larger keypad design making it ideal for delivery environments where workers may be wearing gloves or have other applications that may be more data input intensive.

ATEX HANDHELD COMPUTER

Ecom CN70X ATEX PDA Key Features

Ecom CN70E ATEX tablet provides safe mobile communications for hazardous area workers:

  • ATEX / IECEx certified (ATEX Zone 2/22)
  • Windows® Embedded Handheld 6.5 Professional Operating System
  • Flexible radio technology provides optimal network coverage and a superior solution for implementing least cost routing strategies
  • Advanced barcode imaging technology with motion tolerance for snappy scanning and white illumination with laser aiming for high read rates
  • Brilliant display with extended life touch panel
  • Pre-Loaded with Intermec HTML5 Browser
  • Ecom CN70E includes large numeric keypad with backlit shifted plane legends and calculator keypad with backlit shifted plane legends
  • IP67
  • Microsoft Windows Embedded Handheld 6.5
  • 512 MB RAM
  • Customer-accessible microSD slot for removable memory cards up to 32 GB
  • IEEE® 802.11 a/b/g/n Dual Band WLAN
ATEX Handheld Computer

ATEX Handheld Computer

Ecom CN70X ATEX PDA

Ecom CN70X ATEX PDA

ATEX Handheld computer ZONE 2 HAZARDOUS AREA

ECOM CN70X ATEX PDA Technical Data

CN70X ATEX PDA – Connectivity
CN70A ATEX
Dimensions with battery
L x W x D : 16.9 x 8.0 x 3.4 cm (6.65 x 3.15 x 1.34 in)
Weight: 450 g (15.9 oz) with battery
CN70E ATEX
Dimensions with battery
L x W x D : 19.5 x 8.0 x 3.4 cm (7.66 x 3.15 x 1.34 in)
Weight: 491 g (17.3 oz) with battery
Operating Temperature-20° C to +50° C (-4° F to +122° F)
Storage Temperature-30° C to +70° C (-22° F to +158° F)
Charging Temperature+5° C to +35° C (41° F to 95° F)
Relative HumidityNon-condensing, 95%
Rain & Dust ResistanceIP67
Drop Specification2.4 m (8 ft.) to concrete per MIL-STD 810G,
1.8 m (6 ft.) to concrete across operating temperature range per MIL-STD 810G 2,000 tumbles at 1m
per IEC 60068-2-32 specification
Electrostatic Discharge+/- 15 kV air discharge;
+/- 8 kV direct discharge
Battery Pack3.7 V; 4000 mAh; IEEE 1725 compliant, rechargeable Li-Ion battery IEEE 1725 compliant
Operating SystemMicrosoft© Windows© Embedded Handheld 6.5.3
ProcessorTexas Instruments (OMAP3) architecture with 1 GHz multi-engine processor
Memory and StorageRAM: 512 MB
ROM: 1 GB Flash
Customer-accessible microSD slot for removable memory cards up to 32 GB
Display• 3.5 in Transmissive VGA
• 480 x 640 pixels
• 65,536 (16 bit RGB) Colors
• High-Durability Touch Screen
• LED Backlight
• Ambient Light Sensor
Standard CommunicationsUSB – Full Speed 2.0 Host©, USB – Full Speed 2.0 Client©, IrDA
Device ManagementIntermec SmartSystems™ support includes ScanNGo provisioning for use alone or with
device management software from Intermec ISV s
Device Health MonitoringRemote access requires SmartSystem Management option
Application DevelopmentIntermec Developer Library
Imaging SolutionsIntermec Shipment Address Verification (SAV)
and Mobile Document Imaging (MDI) are compatible, licensed and sold separately
Web BrowsingIntermec HTML5 Browser
Data ManagementSkynax® Mobile Communications
UMTS-Frequencies800, 850, 900, 1900, 2100 MHz
GSM/GPRS-Frequencies850, 900, 1800, 1900 MHz
Max Speeds
(Network dependent)
Uplink – 5.76 Mbps, Downlink – 7.2 Mbps
CDMA-Frequencies800, 1900 MHz
Max. Speeds
(Network dependent)
Uplink – 1.8 Mbps, Downlink – 3.1 Mbps
UMTS/HSPA + Frequencies800, 850, 900, 1700, 1900, 2100 MHz GSM/GPRS/EDGE
GSM/GPRS/EDGE Frequencies850, 900, 1800, 1900 MHz
Max Speeds
(Network dependent)
Uplink – 5.76 Mbps: Downlink 14.4 Mbps
CDMA/EV-DO Frequencies800, 1900 MHz
Max. Speeds
(Network dependent)
Uplink – 1.8 Mbps Downlink 3.1 Mbps
Wireless LANIEEE® 802.11 a/b/g/n Dual Band WLAN
SecurityWiFi certified for WPA and WPA2, WAPI certified
Authentication802.1x
Cisco CompatibilityCCXv4
EncryptionWEP (64 or 128 bit), AES, TKIP
Wireless PANBT Class II, Version 2.1+EDR
Operating channels0 to 78 (2402-2480 MHz)
Data Rates1, 2, 3 Mbps
GPS12 channel integrated GPS; Network independent autonomous mode; supports assisted operation via WAN
AccelerometerEmbedded accelerometer enables automatic or application-specific features such as
screen rotation or system suspend
Audio SupportSupports VoIP / Speech recognition / Push-to-talk applications; front and rear speakers; rear speaker
>80 dB at 40 cm (15.7 in); Front receiver and front panel microphone for handset audio communication
and audio recording; Wireless Bluetooth headset support; Wired headset support via snap on adapter
Integrated Scanner OptionsEA30 high performance motion tolerant 2D Imager; white LED illumination; red laser aimer optimized
for all lighting conditions; 35 degree downward scan angle; capable of scanning all common 1D and
2D barcodes; 1D as small as 5 mm; PDF as small as 6.6 mm; Data Matrix as small as 7.5 mm; and
standard UPC codes from distances up to 33 cm (13 in)
Integrated RFID Reader OptionThe CN70A ATEX and CN70E ATEX are available with integrated UHF RFID reading capabilities
Integrated Camera Option5 Megapixel auto focus color camera with LED flash
Keypad OptionsAll keypad options feature hard keycaps with laser-etched legends

ATEX Handheld Computer Zone 2 Hazardous Area – Ecom CN70X ATEX PDA

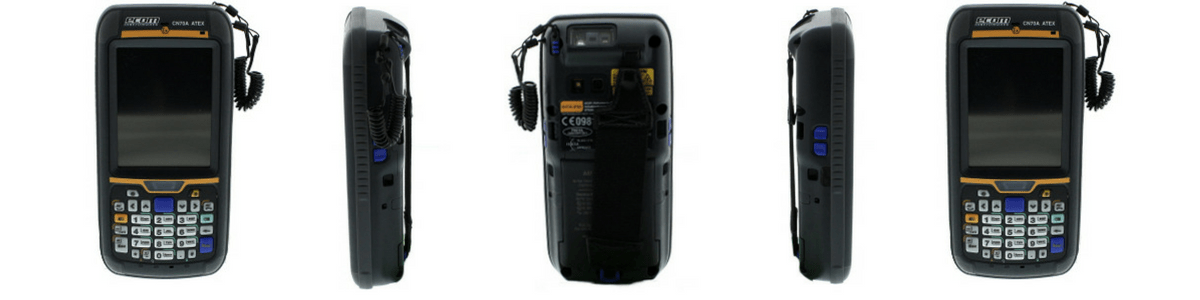

Ecom CN70X ATEX PDA - Dimensions

Ecom CN70X ATEX PDA – Dimensions

Hazardous Area INTERNATIONAL Certifications

Ecom CN70X ATEX PDA is ATEX certified to most international hazardous area certification bodies:

ATEXATEX (Europe)



  • II 3G Ex ic IIC T4 Gc
  • II 3D Ex ic IIIB T130°C Dc IP54
