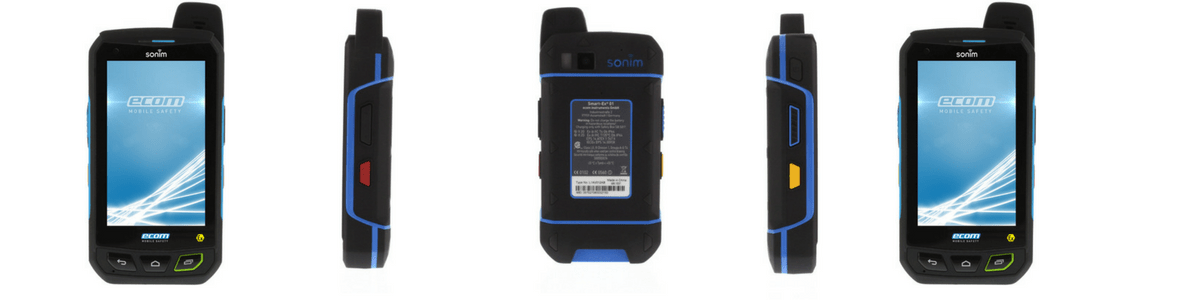

ATEX Mobile Phone Zone 1 Hazardous Area - Ecom Smart-Ex-01 Smart Phone

ATEX Mobile Phone Zone 1 Hazardous Area – Ecom Smart-Ex 01 Smart Phone

ATEX Certified Hazardous Area Mobile Phones

ECOM SMART-EX 01 MOBILE PHONE

Zone 1 & Zone 21 Division 1

Hazardous Area Locations

  • ATEX Certification
  • II 2 G Ex ib IIC T4 Gb IP64
  • II 2 D Ex ib IIIC T135°C Db IP6X

Ecom Smart-Ex 01 is an ATEX certified, LTE / WiFi / Android, smart phone suitable for use within Zone 1, Zone 21 and Division 1 hazardous areas. The Ecom Smart-Ex 01 features a 4″ touchscreen that can be used easily with wet or dirty work gloves and can easily be viewed in direct sunlight.

Ecom Smart-Ex 01 hazardous area mobile phone has an extremely loud speaker, noise cancellation and a powerful battery with water and drop resistance – the ATEX mobile phone also provides access to productivity applications and worker safety in hazardous area locations.

ATEX Mobile Phone

Ecom Smart-Ex 01 Key Features

Ecom Smart-Ex 01 smart phone provides safe mobile communications for hazardous area workers:

  • Large display increases the workers productivity due to the larger work surface
  • Google certified / certification (GMS)
  • FOTA (Firmware Over The Air) ability keeps the intrinsically safe smartphone everytime up to date
  • 4G / LTE -standard (SIM unlocked and free)
  • Android™ 4.4, KitKat operating system
  • 4.0“ capacitive multi-touch screen made of extreme shock and scratch resistant Gorilla® Glass 2
  • Glove Touch Screen
  • High Visibility Display in Direct Sunlight
  • NFC functionality
  • 3600 mAh Li-Ion battery pack
  • Bluetooth® 4.0 incl. BLE (Bluetooth® Low Energy) BLE (30 times faster, 1/100th of power)
  • (Optional) 8 MP rear camera with auto focus and LED flash with torchlight function and 1 MP front camera
  • 5-pins water-proof magnetic USB 2.0 High Speed connector
  • IP68 – Dust proof, water proof
  • Push-to-talk (App solution)
  • Dedicated Hardware buttons for PTT, LWP functions
  • (Optional) Lone Worker Protection (App solution)
  • (Optional) Service Level Agreement (SLA)
  • Chipset MSM8926 1.2 GHz Quad core

    ATEX Mobile Phone - Smart Phone

    ATEX Mobile Phone – Smart Phone

  • EU: B1, B3, B7, B8, B20, B38 (TDD)
    • Quad Band UMTS 850 / 900 / 1900 / 2100 MHz
    • Quad Band GSM 850 / 900 / 1800 / 1900 MHz
  • US: B1, B2, B3, B4, B5, B7, B8, B12, B17
    • Quad Band GSM 850 / 900 / 1800 / 1900 MHz
    • Quad Band UMTS 850 / 900 / 1900 / 2100 MHz
  • MIMO antenna for LTE
  • WiFi 802.11 a/b/g/n dual-band, WiFi Direct, WiFi Hotspot
  • 16GB Internal Storage / 1GB RAM
  • 12GB user memory
ATEX Mobile Phone Zone 1 Hazardous Area - Ecom Smart-Ex 01 Smart Phone

Ecom Smart-Ex 01 ATEX Smart Phone

ATEX MOBILE PHONE ZONE 1 HAZARDOUS AREA

ECOM SMART-EX 01 SMART PHONE Technical Data

Ecom Smart-Ex 01 Smart Phone – Connectivity
Bluetooth, SMS, MMS (Text, Image, Audio, Video)BT 4.0 / BLE (Bluetooth Low Energy), Support SMS and MMS
A-GPS, NFCA-GPS, GLONASS, NFC
Supported LanguageArabic, Simplified Chinese, Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Norwegian, Persian, Polish, Portuguese, Romanian, Russian, Spanish, Swedish, Turkish
Email ClientEAS, Gmail, POP 3, IMAP
Capacity (mAh)3600mAh
Ecom Smart-Ex 01 Smart Phone – Physical Characteristics
Battery LifeUp to 1000 hours standby, up to 40 hours talk time
Ambient Temperature-20ºC to +55ºC (Smart-Ex 01)
0ºC to +50ºC (Smart-Ex 01M)
Protection ClassIP68
Size137mm x 72.1mm x 26.8mm (5.39″ x 2.84″ x 1.06″)
WeightApprox 370g (13.05oz)
CertificationsFCC, PTCRB, IEEE1725, CEC, Bluetooth, SIG, WFA, IC
Dedicated KeysPTT key, Alarm key, Power key
Ports3.5mm audio connector / Magnetic USB connector plug
Display
Size4.0 inch
TypeCorning Gorilla Glass 2 with Glove Touch, blank view display
ResolutionWVGA (480×800)
Outdoor VisibilityYes
Colours16.7m
Audio
MicrophoneDual Mic Solution with Noise Cancellation
Speaker19mm Loud Speaker with Gore Protective Vents, Output up to 103dB
Multimedia
Audio FormatsMP3, WMA 9, AAC, AAC +, eAAC, AMR-NB/WB
Video FormatsSupport AV I, MP4, 3GPP
Media PlayerAndroid native + GMS
FM RadioYes
Camera8MP auto focus rear, 1MP fixed focus front
LED Torch LightYes
Hazardous Area Certifications
ATEXII 2 G, Ex ib IIC T4 Gb IP64, II 2 D Ex iB IIIC T135ºC Db IP6X
Mining: I M1 Ex ia I Ma IP64 (Smart-Ex 01M)
CSAClass I, II, III, Div 1 Groups A-G T4
IECExEx ib IIC T4 Gb IP64, Ex ib IIIC T135ºC Db IP6X
Mining: Ex ia I Ma IP64 (Smart-Ex 01M)
KC (Korean)Ex ib IIC T4, Ex ib IIIC T135ºC
NCC (Brazil)Ex ib IIC T4 Gb IP64, Ex ib IIIC T135ºC Db IP64
Ta – -20ºC to +55ºC

ATEX Mobile Phone Zone 1 Hazardous Area - Ecom Smart-Ex 01 Smart Phone

ATEX Mobile Phone Zone 1 Hazardous Area - Ecom Smart-Ex 01 Smart Phone

ATEX Mobile Phone – Ecom Smart-Ex 01 Smart Phone Dimensions

Hazardous Area INTERNATIONAL Certifications

Ecom Smart-Ex 01 smart phone is ATEX certified to most international hazardous area certification bodies:

ATEXATEX (Europe)



  • II 2 G Ex ib IIC T4 Gb IP64
  • II 2 D Ex ib IIIC T135°C Db IP6X
  • Mining: I M1 Ex ia I Ma IP64 (Ecom Smart-Ex® 01M)

IECEXIECEx (International)



  • Ex ib IIC T4 Gb IP64
  • Ex ib IIIC T135°C Db IP6X
  • Mining: Ex ia I Ma IP64 (Ecom Smart-Ex® 01M)

NCC BrazilNCC (Brazil)



  • Ex ib IIC T4 Gb IP64
  • Ex ib IIIC T135 °C Db IP64
  • Ta = -20°C to +55°C

CSACSA (Northern America)



  • Class I, II, III Div 1 Groups A-G T4

South Korea

KC – Korean Certification



  • Ex ib IIC T4
  • Ex ib IIIC T135°C

Group 1 Mining Certified Mobile Phone

Ecom Smart-Ex 01M Certifications for mining locations.

  • ATEX: I M1 Ex ia I Ma IP64
  • IECEx: Ex ia I Ma IP64
  • Ambient temperature: 0°C … +50°C
Group 1 Mining Certified Mobile Phone

Ecom Smart-Ex 01M – Group 1 Mining Certified Mobile Phone

Android

ANDROID 4.4.4 enables the intrinsically safe, hazardous area mobile phone to be used in hazardous areas without any compromises, especially when compared to conventional smartphones – with the online integration and the use of a variety of applications, the Ecom Smart – Ex 01 & 201 / Ecom Ex-Handy 09 & 209 allows an efficiency potential and access to productivity and safety applications in hazardous area locations.

T&D are Main Distributors for the complete range of Ecom Hazardous Area Mobile Communications & Computers – this includes mobile smartphones, tablets and handheld computers.

ATEX Mobile Phone Zone 1 Hazardous Area - Ecom Smart-Ex 01 Smart Phone

Ecom Smart-Ex 01 Smart Phone comes supplied with a charger, safety box and belt clip as standard.
