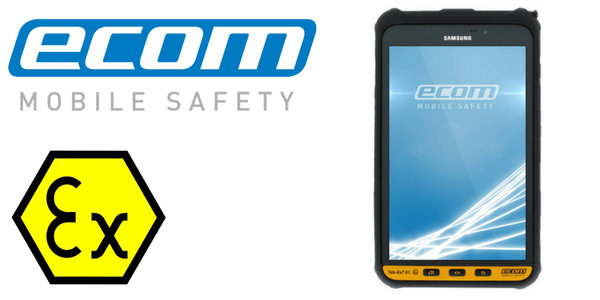

ATEX Tablet Zone 2 & Div 2 Hazardous Area – Ecom TAB-EX 01 Android Tablet

ATEX Tablet Zone 2 & Div 2 Hazardous Area – Ecom TAB-EX 01 Android Tablet

ATEX Tablet Zone 2 & Div 2 Hazardous Area – Ecom TAB-EX 01 Android Tablet

ATEX Certified Hazardous Area Tablet

ECOM TAB-EX 01 Android Tablet

Zone 2 & Division 2

Hazardous Area Locations

  • ATEX Certification
  • II 3G Ex ic IIC T5 Gc
  • Ta = -20°C to +55°C

Ecom TAB-EX 01 is the world’s thinnest Zone 2 & DIV 2 hazardous area tablet computer based on Samsung GALAXY Tab Active. Lightweight and compact this tablet, operates on Android™ 5.1.1 Lollipop (optionally 4.4.4 KitKat), the Ecom Tab-Ex® is suitable for multiple mobile worker roles performing a range of applications, such as Asset Surveys, Material Tracking, Operator Rounds, Inspection and Maintenance.

The 8“ android tablet screen enables standard desktop applications to become mobile in hazardous areas, allowing workers to view and interact with SCADA/DCS systems, enterprise systems (SAP, Maximo), and computer aided design systems. The Ecom TAB-EX 01 has the option for a built in camera and a full range of wireless capabilities as extras.

ATEX Tablet

Ecom TAB-Ex 01 Zone 2 Key Features

Ecom TAB-EX 01 tablet provides safe mobile communications for hazardous area workers:

  • Global certifications – including ATEX and IECEx one common platform
  • Android™ 5.1.1 Lollipop (optionally 4.4.4 KitKat) Operating System
  • Wireless capability as WWAN, 4G LTE*, WLAN, etc.
  • Front and rear camera (optional)
    • 3 MP with rear camera Flash with Barcode Scanner capability
    • 1.3 MP front camera
  • Reinforced security with Samsung KNOX™
  • Tablet accessories and peripherals to enable wide range of uses
  • Suitable for use with gloves
  • NFC technology for wireless applications
  • GPS
  • Water & Dust resistance rating of IP67
  • ATEX Tablet

    ATEX Tablet

    Capacitive Pen

  • Firmware Over-the-Air (FOTA)
  • Quad core 1.2 GHz processor
  • 8” TFT display with 1280 x 800 pixels
Ecom TAB-EX 01 Android Tablet

Ecom TAB-EX 01 Zone 2 Android Tablet

ATEX Android Tablet ZONE 2 HAZARDOUS AREA

ECOM TAB-EX 01 Android Tablet Technical Data

Ecom TAB-Ex 02 Tablet
Operating SystemAndroid™ 5.1.1 Lollipop (optionally 4.4.4 KitKat)
ProcessorQuad core 1.2 GHz processor
Memory and
Storage
RAM 1.5 GB
ROM 16 GB, with microSD up to 64 GB (optional)
Display8″ TFT display with 1280 x 800 pixels
EnvironmentalOperating temperature -20 … +55 °C
WWAN4G LTE* (optional)
Category 4: 800 / 850 / 900 / 1800 / 2100 / 2600
UMTS (3G) / HSPA (3.5G): 850 / 900 / 1900 / 2100
GPRS / EDGE (2G): 850 / 900 / 1800 / 1900
Weight562,1g
Bluetooth®Bluetooth SmartReady LE 4.0
Wireless LANWiFi 802.11 a/b/g/n
Powerup to 11 hours battery life / 4450 mAh
Camera3 MP with rear camera
Flash with Barcode Scanner capability
1.3 MP front camera
SecuritySamsung KNOX™ EMM (MDM+IAM), Secure file management & H/W & S/W Secure platform
Programmable KeysYes
Dimensions (W x H x D)131,1 x 225,1 x 13,6 mm (incl. protective case)
world’s thinnest Zone 2 / DIV 2 tablet – 13,6 mm
Hazardous Area Certifications
ATEXII 3G Ex ic IIC T5 Gc Ta = -20°C to +55°C
CSAClass I, Division 2, Groups A,B,C,D, T4 Class I, Zone 2, Group IIC, T4 Ta = -20°C to +55°C
IECExEx ic IIC T5 Gc Ta = -20°C to +55°C
NCC (Brazil)Ex ic IIC T5 Gc IP64 Ta = -20°C to +55°C

ATEX Tablet Zone 2 & Div 2 Hazardous Area – Ecom TAB-EX 01 Android Tablet



Ecom TAB-Ex 01 Android Tablet Dimensions.

Ecom TAB-Ex 01 Zone 2 Android Tablet Dimensions.

Hazardous Area INTERNATIONAL Certifications

Ecom TAB-Ex 01 tablet is ATEX certified to most international hazardous area certification bodies:

ATEXATEX (Europe)



  • II 3G Ex ic IIC T5 Gc
  • Ta = -20°C to +55°C

IECEXIECEx (International)



  • Ex ic IIC T5 Gc
  • Ta = -20°C to +55°C

NCC BrazilNCC (Brazil)



  • Ex ic IIC T5 Gc IP64
  • Ta = -20°C to +55°C

CSACSA (Northern America)



  • Class I, Division 2, Groups A,B,C,D, T4
  • Class I, Zone 2, Group IIC, T4
  • Ta = -20°C to +55°C

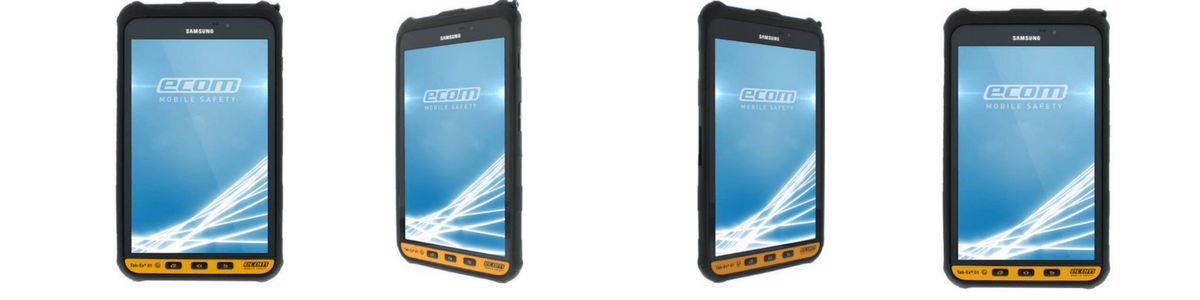

Ecom TAB-EX 01 Android Tablet

Ecom TAB-EX 01 Android Tablet supplied with charger, battery, protective cover & capacitive pen as well as all the relevant documentation

T&D are Main Distributors for the complete range of Ecom Hazardous Area Mobile Communications & Computers – this includes mobile smartphones, tablets and handheld computers.

Ecom Smart-Ex 01

Ecom Smart-Ex Hazardous Area Mobile & Smart Phones – Safe Working In Explosive Atmospheres
