***THIS PRODUCT HAS BEEN DISCONTINUED. The follow-up product is Ecom Tab-Ex 02 D2***

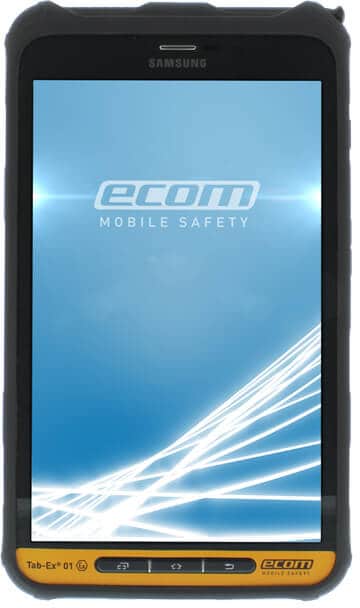

ECOM TAB-EX 01 Android Tablet

Division 2

Hazardous Area Locations

  • CSA Certification
  • Class I, Division 2, Groups A,B,C,D, T4
  • Class I, Zone 2, Group IIC, T4
  • Ta = -20°C to +55°C

TAB-EX 01 from Ecom is the world’s thinnest DIV 2 hazardous area tablet computer based on Samsung GALAXY Tab Active. Lightweight and compact this tablet, operates on Android™ 5.1.1 Lollipop (optionally 4.4.4 KitKat), the Ecom Tab-Ex® is suitable for multiple mobile worker roles performing a range of applications, such as Asset Surveys, Material Tracking, Operator Rounds, Inspection and Maintenance.

The 8“ android tablet screen enables standard desktop applications to become mobile in hazardous areas, allowing workers to view and interact with SCADA/DCS systems, enterprise systems (SAP, Maximo), and computer aided design systems. The Ecom TAB-EX 01 has the option for a built in camera and a full range of wireless capabilities as extras.

CSA Tablet

Ecom TAB-Ex 01 DIV 2 Key Features

Ecom TAB-EX 01 tablet provides safe mobile communications for hazardous area workers:

  • Global certifications – including CSA one common platform
  • Android™ 5.1.1 Lollipop (optionally 4.4.4 KitKat) Operating System
  • Wireless capability as WWAN, 4G LTE*, WLAN, etc.
  • Front and rear camera (optional)
    • 3 MP with rear camera Flash with Barcode Scanner capability
    • 1.3 MP front camera
  • Reinforced security with Samsung KNOX™
  • Tablet accessories and peripherals to enable wide range of uses
  • Suitable for use with gloves
  • NFC technology for wireless applications

    ATEX Tablet

    ATEX Tablet

  • GPS
  • Water & Dust resistance rating of IP67
  • Capacitive Pen
  • Firmware Over-the-Air (FOTA)
  • Quad core 1.2 GHz processor
  • 8” TFT display with 1280 x 800 pixels
Ecom TAB-EX 01 Android Tablet

Ecom TAB-EX 01 DIV 2 Android Tablet

CSA Android Tablet DIV 2 HAZARDOUS AREA

ECOM TAB-EX 01 Android Tablet Technical Data

Ecom TAB-Ex 01 Tablet
Operating System Android™ 5.1.1 Lollipop (optionally 4.4.4 KitKat)
Processor Quad core 1.2 GHz processor
Memory and
Storage
RAM 1.5 GB
ROM 16 GB, with microSD up to 64 GB (optional)
Weight 495g
Dimensions 131,1 x 225,1 x 13,6 mm (incl. protective case)
world’s thinnest Zone 2 / DIV 2 tablet – 13,6 mm
Display 8″ TFT display with 1280 x 800 pixels
Environmental Operating temperature -20 … +55 °C
WWAN 4G LTE* (optional)
Category 4: 800 / 850 / 900 / 1800 / 2100 / 2600
UMTS (3G) / HSPA (3.5G): 850 / 900 / 1900 / 2100
GPRS / EDGE (2G): 850 / 900 / 1800 / 1900
Bluetooth® Bluetooth SmartReady LE 4.0
Wireless LAN WiFi 802.11 a/b/g/n
Power up to 11 hours battery life / 4450 mAh
Camera 3 MP with rear camera
Flash with Barcode Scanner capability
1.3 MP front camera
Security Samsung KNOX™ EMM (MDM+IAM), Secure file management & H/W & S/W Secure platform
Programmable Keys Yes
Hazardous Area Certifications
CSA Class I, Division 2, Groups A,B,C,D, T4 Class I, Zone 2, Group IIC, T4 Ta = -20°C to +55°C



CSA Tablet Division 2 Hazardous Area – Ecom TAB-EX 01 Android Tablet

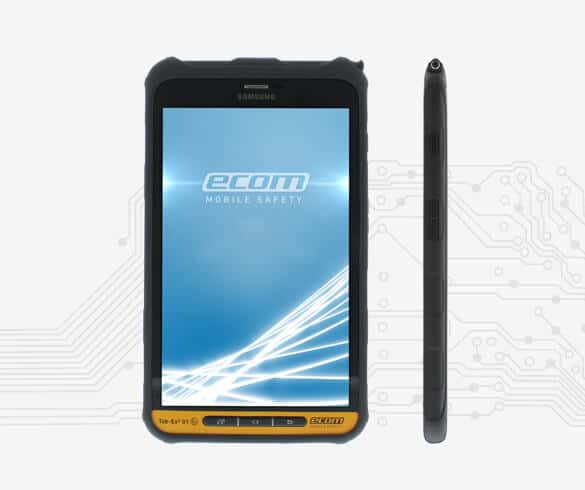

Ecom TAB-Ex 01 Android Tablet Dimensions

Ecom TAB-Ex 01 Div 2 Android Tablet Dimensions

Hazardous Area INTERNATIONAL Certifications

Ecom TAB-Ex 01 tablet is CSA certified to most international hazardous area certification bodies:

CSACSA (Northern America)



  • Class I, Division 2, Groups A,B,C,D, T4
  • Class I, Zone 2, Group IIC, T4
  • Ta = -20°C to +55°C
Ecom TAB-EX 01 Android Tablet

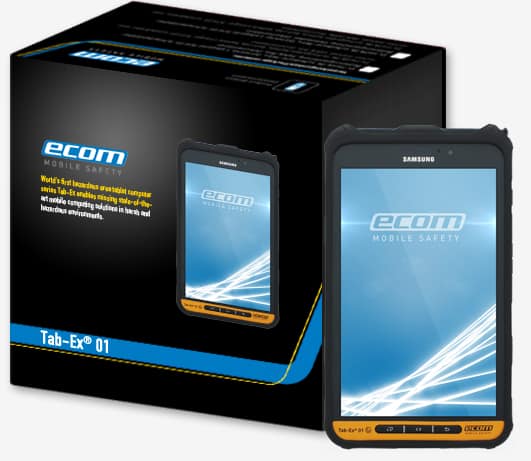

Ecom TAB-EX 01 Android Tablet supplied with charger, battery, protective cover & capacitive pen as well as all the relevant documentation
