Deeter DE23-1A01 Float Switch – Nylon – 1/8 NPT, 1 Watt, 24V, 0.1A Form A SPST

Level Sensors - Deeter 20 Series 30 Series 40 Series

Float Switches & Liquid Level Sensors

Deeter DE23-1A01 FLOAT SWITCH

    • Designed for cost sensitive high volume OEM applications.
    • High reliability reed switch lifetime of 5 x 107 operations.
    • Available in UL/WRC listed PVC, Polypropylene, Nylon and Acetal materials.
    • Change from N/O to N/C by inverting float.
    • Ideal for beverage, automotive and consumer applications

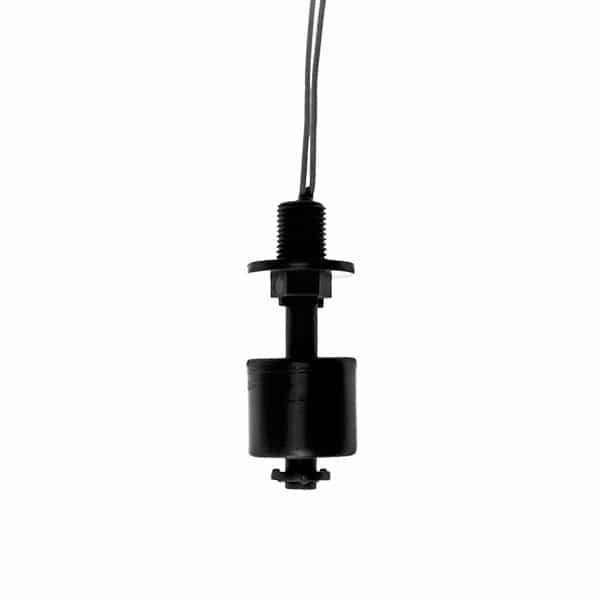

Deeter DE23-1A01 Float Switch & Liquid Level Sensor

Deeter DE23-1A01 Float Switch & Liquid Level Sensor

MECHANICAL SPECIFICATION
•M10 or 1/8” NPT Thread
•200mm Cable length
   (custom lengths available)
•0.1A switching current max.
•Float Specific Gravity
    PVC (0.63)
    Polypropylene (0.49)
    Nylon (0.50)
    Acetal (0.62)
•M10 supplied with nut and washer
ELECTRICAL SPECIFICATION
•Form A switch.
•24v DC switching volt max.
•0.1A switching current max.
•1 Watt max.
•150v DC breakdown voltage min.
•7/0.2mm PVC insulated cable
•7/0.2mm PTFE insulated cable with
Acetal switch
Float Switches & Level Sensors

Deeter electronic sensors, switches and control and instrumentation systems are specified across all industries.

➡ Deeter hazardous area float switches, liquid level sensors and load cells with ATEX & IECEx certification are used for Ex d Explosion Proof requirements.

Hazardous Area Level Sensors & Float Switches

Level Sensors & Float Switches : ATEX IECEx & CSA Certified flameproof and explosion proof equipment is available for hazardous area applications. Image : ENPPI.
