Marechal DSN12C Description
Offering up to 12 contacts, the DSN12C provides compact, high-performance multichannel power and signal connectivity — ideal for automation systems, control panels and hazardous area wiring networks.
Rated at 16 A and 480 V, the Marechal DSN12C Multicontact Connector ensures safe and reliable operation in the most demanding environments. With built-in protection of IP66/IP67/IP69 and IK09, it excels in harsh, wet or dusty industrial locations, rated for a temperature range of -40 °C to +60 °C.
Designed with a robust glass-reinforced polymer housing and silver-nickel butt contacts, the DSN12C delivers both mechanical strength and outstanding conductivity. Its compact 12-contact footprint accommodates both power and low-level control wiring in one sealed connector.
The Marechal DSN Multicontact Connector range includes wall-mount sockets, inlets, outlet boxes, handles and adapters — available in multiple contact configurations for LV and signal applications.
A full range of Marechal accessories, sleeves, boxes and handles is available to support complete system integration.
Contact our experts – order or find out more about the DSN12C and our complete range of Marechal Plugs, Sockets & Connectors for your operations. We provide technical advice, quotations and fast delivery for both UK & export projects.
Contact Our Experts
DSN12C Multicontact Connector Technical Specifications

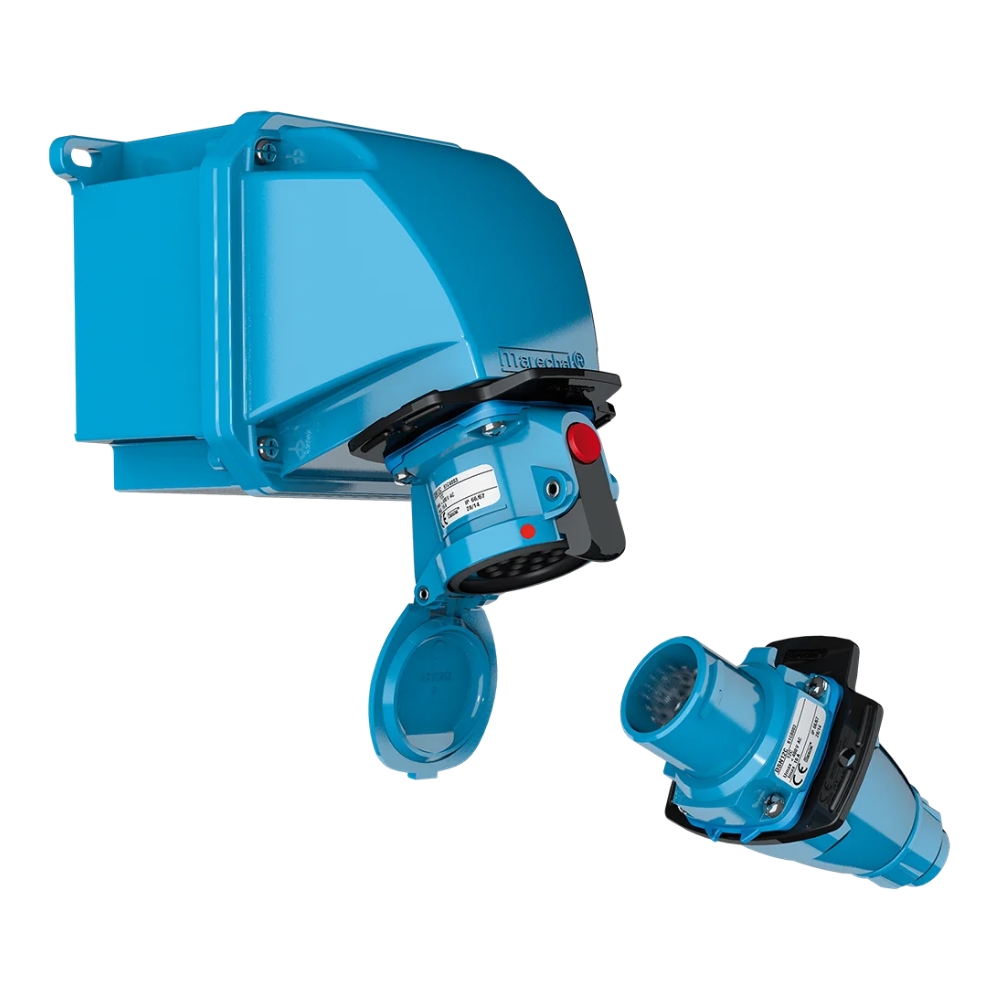

Marechal DSN12C Plugs, Sockets & Multi-Contact Connectors
| DSN12C Electrical Features |
| Maximum voltage |
480 V |
| Impulse withstand voltage |
5 kV |
| Contact resistance |
‹ 2 mΩ |
| Permitted current range |
4 – 20 mA / 16 A |
| Total current (∑ contacts) |
110 A |
| Wiring (terminals) |
To weld / crimp |
| DSN12C Climatic Features |
| Ambient temperature |
-40 °C to +60 °C |
| IP protection |
IP66 / IP67 / IP69 (automatic closure) |
| Impact resistance |
IK09 |
| DSN12C Mechanical Features |
| Number of contacts |
12 |
| Butt contacts |
Silver-nickel tips |
| Contact protection |
Silvering |
| Load cycles |
> 5 000 cycles |
| Vibration resistance |
5 – 1000 Hz, 1 g (90 mins each critical frequency) – IEC 6068-2-6 |
Marechal DSN12C Outlet & Inlet Part References
| Product Type |
Description |
Part Reference |
Specifications |
Image |
| Socket-Outlet (Female) |

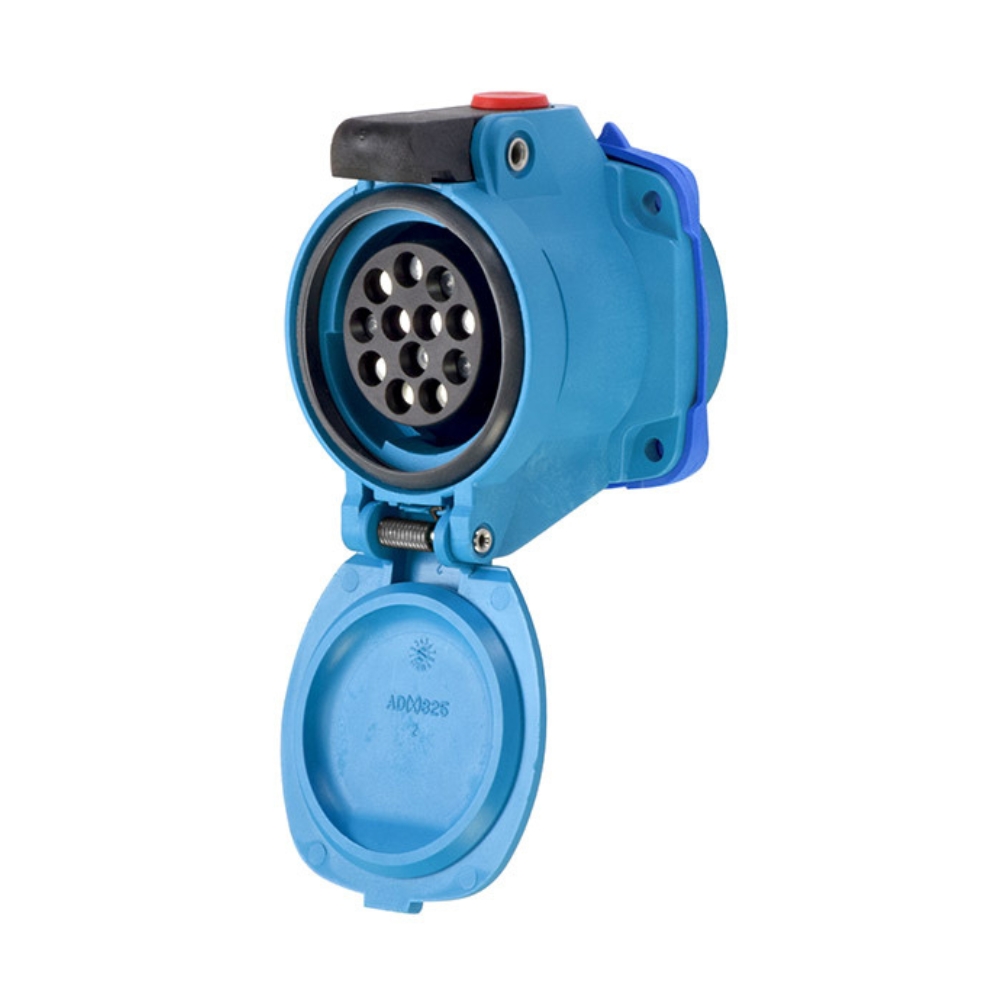

Marechal DSN12C Multicontact Connector – 12 Contacts, Female Outlet |
61A4001 |
480 V AC, 12 Contacts
IP66/IP67, Impact Resistance IK09 |
|
| Inlet (Male) |

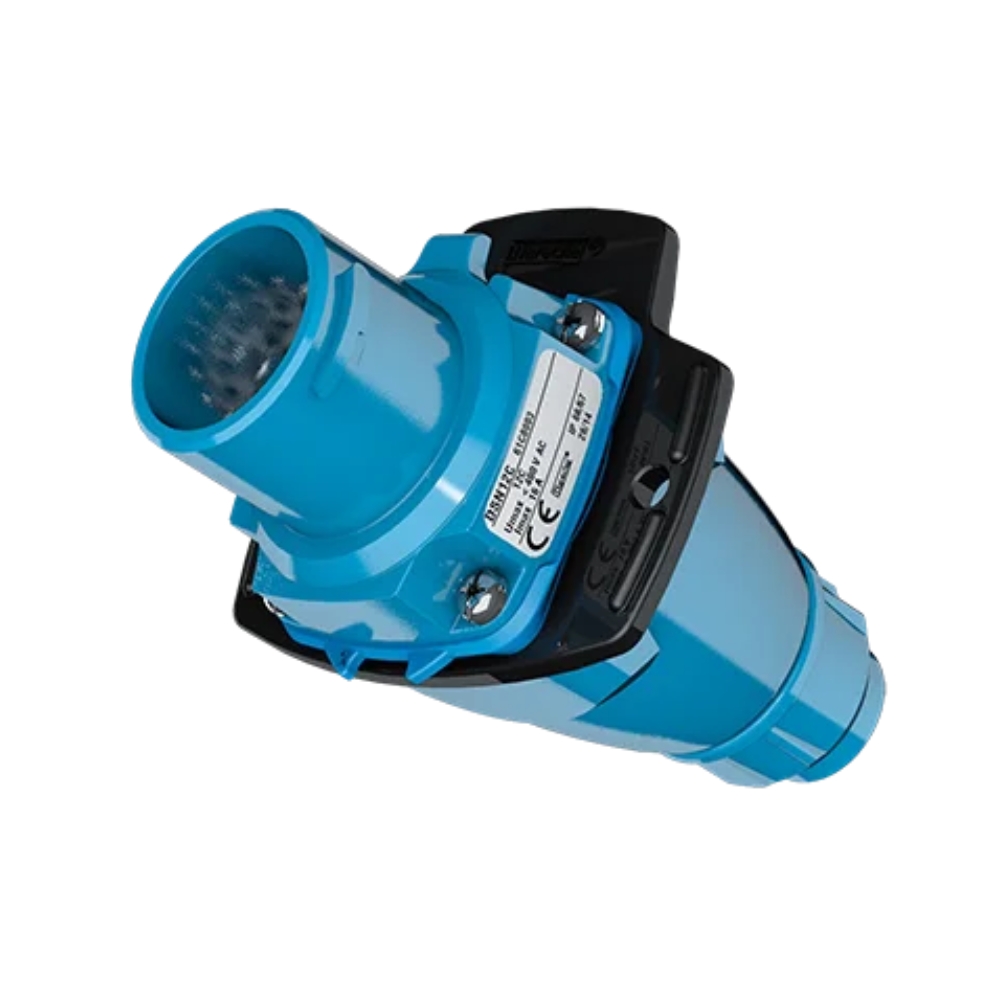

Marechal DSN12C Multicontact Connector – 12 Contacts, Male Inlet |
61A8001 |
480 V AC, 12 Contacts
IP66/IP67, Impact Resistance IK09 |
|
Each DSN12C connector is supplied with one bag of 13 contacts, including insulation sleeves and ferrules.
|
Marechal DSN12C Accessories & Options
Marechal DSN12C Accessories & Options
| Accessory / Category |
Description |
Reference |
| OPTIONS |
| Locking pin for 2 padlocks (Ø 4–8 mm) |
Provides secure locking for socket cover (padlocks not supplied) |
Ref. + 843 |
| Larger release button |
Replacement release button for socket-outlet |
Socket ref. + 453 |
| In-line connections |
Pair of finger draw plates to aid closing |
611A346 |
| Inlet cap (IP66 / IP67) |
Protective cap for male inlet, rated IP66/IP67 |
611A426 |
| IP40 self-returning lid (manual closing) |
Manual return lid option for socket-outlet |
Socket ref. + R |
| Self-ejection |
Self-ejection mechanism (see catalogue page 192) |
— |
| Bag of 13 female contacts |
Includes insulation sleeves and ferrules (supplied with product) |
01AA213 |
| Bag of 13 male contacts |
Includes insulation sleeves and ferrules |
01AA113 |
| Black colour option |
Products are also available in black; replace 2nd character of reference with “5” |
— |
| BOXES |
| Poly box – 30° (M20) |
Angled poly enclosure, M20 cable entry |
511B3M20 |
| Poly box – 30° (M25) |
Angled poly enclosure, M25 cable entry |
511B3M25 |
| Poly box + poly sleeve |
Combined poly box and sleeve; earth bar ref. shown |
Earth bar: 51AA089 |
| Poly box – 70° (no hole) |
70° angled box without gland hole |
511C7000 |
| Poly box – 70° (Ø20 hole) |
70° angled box with Ø20 gland hole |
511C7M20 |
| Poly box – 70° (Ø25 hole) |
70° angled box with Ø25 gland hole |
511C7M25 |
| Poly box – 70° (Ø32 hole) |
70° angled box with Ø32 gland hole |
511C7M32 |
| Metal box + earthing wire + poly sleeve |
Robust metal enclosure with earthing and sleeve (cable glands not supplied) |
511C3M20 |
| SLEEVES |
| Poly sleeve – 30° |
Polyethylene sleeve for 30° installations |
511M3 |
| Poly sleeve – 70° |
Polyethylene sleeve for 70° installations |
511M7 |
| Metal sleeve – 0° (straight) |
Straight metal sleeve for heavy duty installations |
591M0 |
| Metal sleeve – 30° |
30° metal sleeve for angled installations |
591M3 |
| HANDLES |
| Poly handle with gland |
For cable Ø 9–18 mm |
511P0D18 |
| Poly handle with gland |
For cable Ø 5–21 mm |
511P0D21 |
| 60° poly handle with gland |
For cable Ø 9–18 mm |
511P6D18 |
| Poly handle + poly cable gland |
5–12 mm (self-ejection ref. +443) |
511P020P — Ref. +443 |
| Poly handle + poly cable gland |
9–18 mm (self-ejection ref. +443) |
511P025P — Ref. +443 |
| Poly handle + poly cable gland |
14–25 mm (self-ejection ref. +443) |
511P032P — Ref. +443 |
| Poly handle (without cable gland) |
M20 threaded entry |
511P0M20 |
| Poly handle (without cable gland) |
M25 threaded entry |
511P0M25 |
| Poly handle (without cable gland) |
M32 threaded entry |
511P0M32 |
