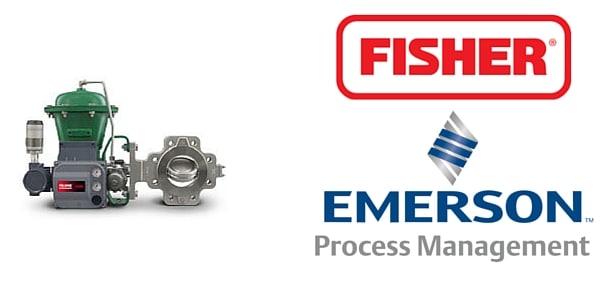

Fisher Control Disk Valve Butterfly Valve – Rotary Valves

Fisher Control Disk Valve is a high performance butterfly valve offering excellent throttling performance. The Control Disk valve is able to offer control closer to the target set point in spite of process disturbances allowing the brilliant throttling performance and make this valve preferable to segmented ball valves.

The Control Disk valve body meets PN 10 through PN 40, CL150, and CL300 ratings. Face-to-face dimensions meet EN 558, API 609, and MSS-SP68 standards. Line centering clips provide for versatility to mount and align the same wafer style valve body in different piping configurations (ASME and EN ratings).

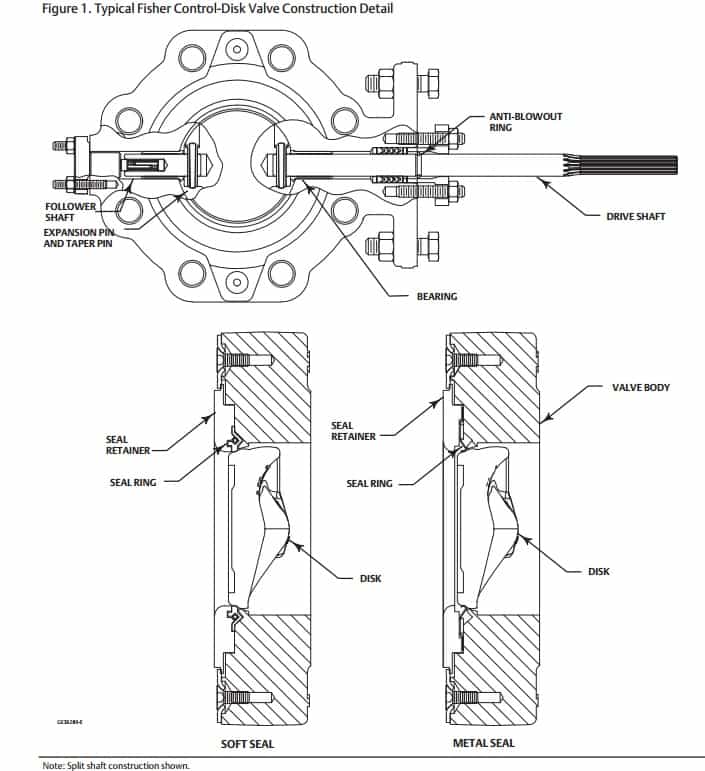

The Control Disk rotary valve features an eccentrically-mounted disk with either soft or metal seal, providing capability for enhanced shutoff

Fisher Control Disk Valve Butterfly Valve – Product Features

• Equal percentage flow characteristic – provides an improved throttling range comparable to that of a segmented ball valve. This improved capability allows you to control closer to the target set point, regardless of process disturbances, which results in a reduction in process variabilit
• Global Standards – valve meets API, ASME, and EN standards, making it suitable for use in all world areas
• PEEK/PTFE bearing as standard – PTFE-lined PEEK bearing is a low friction, low wear bearing. It allows the valve to operate under high pressure drops for a high cycle life while maintaining low torque. The “drop-in” bearing design enables fast, easy maintenance
• Lower Operating Torques – equal percentage disk reduces operating torque at peak angles of disk opening
• Spline-ended Shaft – splined shaft with clamped lever and single-pivot linkage reduces lost motion between the actuator and the valve shaft
• Improved shaft-disk pinning – spring in the outboard shaft provides support to the drive train and disk, enabling the shaft to be installed in both horizontal and vertical orientations with no detriment to performance or cycle life. This complements the ability to mount the actuator on the left- or right-hand side, enabling access for any installation
• New Spring-Loaded Shaft – the ENVIRO-SEAL packing system can control emissions below the EPA (Environmental Protection Agency) limit of 100 ppm (parts per million)
• Excellent Emissions Capabilities – optional ENVIRO-SEALt packing systems, are designed with very smooth shaft surfaces and live-loading to provide improved sealing, guiding, and loading force transmission. The seal of the ENVIRO-SEAL system can control emissions to below 100 ppm (parts per million)
• Easy Installation – line-centering clips engage the line flange bolts to simplify installation and provide for centering of wafer-style valves in the pipeline. End connections are compatible with EN and ASME standards

FISHER Control Disk VALVE BUTTERFLY VALVE

PRODUCT Specification

Specifications		EN	ASME
Valve Body Sizes		DN 50, 80, 100, 150, 200, 250, and 300	NPS 2, 3, 4, 6, 8, 10, and 12
Pressure Rating		PN 10 to 40 per EN 12516-1	CL150 / 300 per ASME B16.34, CL150-600 for NPS 2
Valve Body Materials		EN 1.0619 steel	WCC steel
		EN 1.4409 stainless steel	CF3M (316L) stainless steel
		LCC	LCC
		CW2M(1)	CW2M(1)
		M35-2(2)	M35-2
Disk Materials	PTFE or RPTFE(4) Seal	EN 1.4409 stainless steel	CF3M stainless steel
		CW2M	CW2M
		M35-2	M35-2
	Metal or UHMWPE(3) Seal	Chrome-plated EN 1.4409 Stainless Steel	Chrome-plated EN 1.4409 Stainless Steel
End Connections		Mates with raised-face flanges per EN 1092-1	Mates with raised-face flanges per ASME B16.5
Valve Body Style		Wafer (flangeless) and lugged with tapped or through holes
Face-to-Face Dimensions		Meets MSS SP68, API 609, and EN 558 standards
Shutoff		PTFE, RPTFE, or UHMWPE seal ring – Class VI per ANSI/FCI 70-2 and IEC 60534-4
		S31600 (316 SST) seal ring – Class IV per ANSI/FCI 70-2 and IEC 60534-4
Flow Direction		Standard (forward flow) is with the seal retainer facing upstream; reverse flow is permissible for soft seals only
Flow Characteristic		Equal percentage
Disk Rotation		Counterclockwise to open (when viewed from actuator side of valve body) through 90 degrees of disk rotation

1. This material is not listed in EN 12516-1 or ASME B16.34. See figure 6 for pressure/temperature ratings. 2. This material is not listed in EN 12516-1. See figure 6 for pressure/temperature ratings. 3. UHMWPE stands for ultra high molecular weight polyethylene. 4. RPTFE is a reinforced PTFE seal.
