Hazloc Heaters AEU1 Hazardous Area Electric Heater

Hazloc Heaters AEU1 Hazardous Area Electric Heater

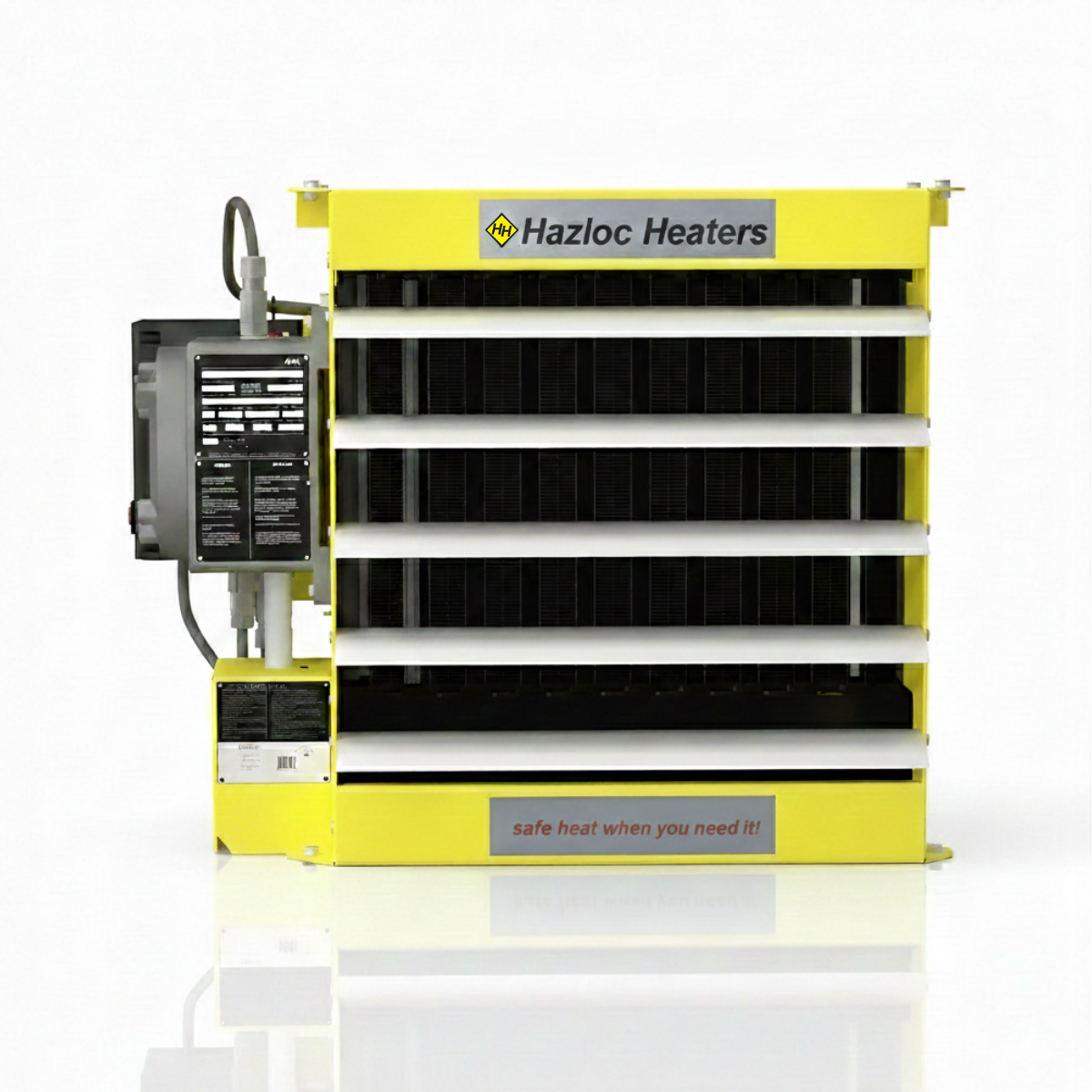

Explosion Proof Electric Air Heater

Hazloc Heaters AEU1 is an explosion proof hazardous area heater unit for providing safe heating suitable for use within ATEX and IECEx rated hazardous areas.

The harsh operating conditions of hazardous area locations require electric heating equipment that is safe, reliable, dependable.

The Hazloc AEU1 range of electric air heaters are designed to provide either primary or supplementary heating for comfort or for freeze protection in areas that are classified by ATEX and IECEx as hazardous locations due to gas or dust atmospheres.

The Hazloc Heaters AEU1 range is available in three sizes all featuring the ExCaliber high performance liquid-to-air heat exchanger cores that are available in twenty-six 230VAC or 400VAC, 50 Hz model choices to meet specific heat output requirements and sixteen 480VAC, 60 Hz models to accommodate shipping vessels, offshore rigs, etc.

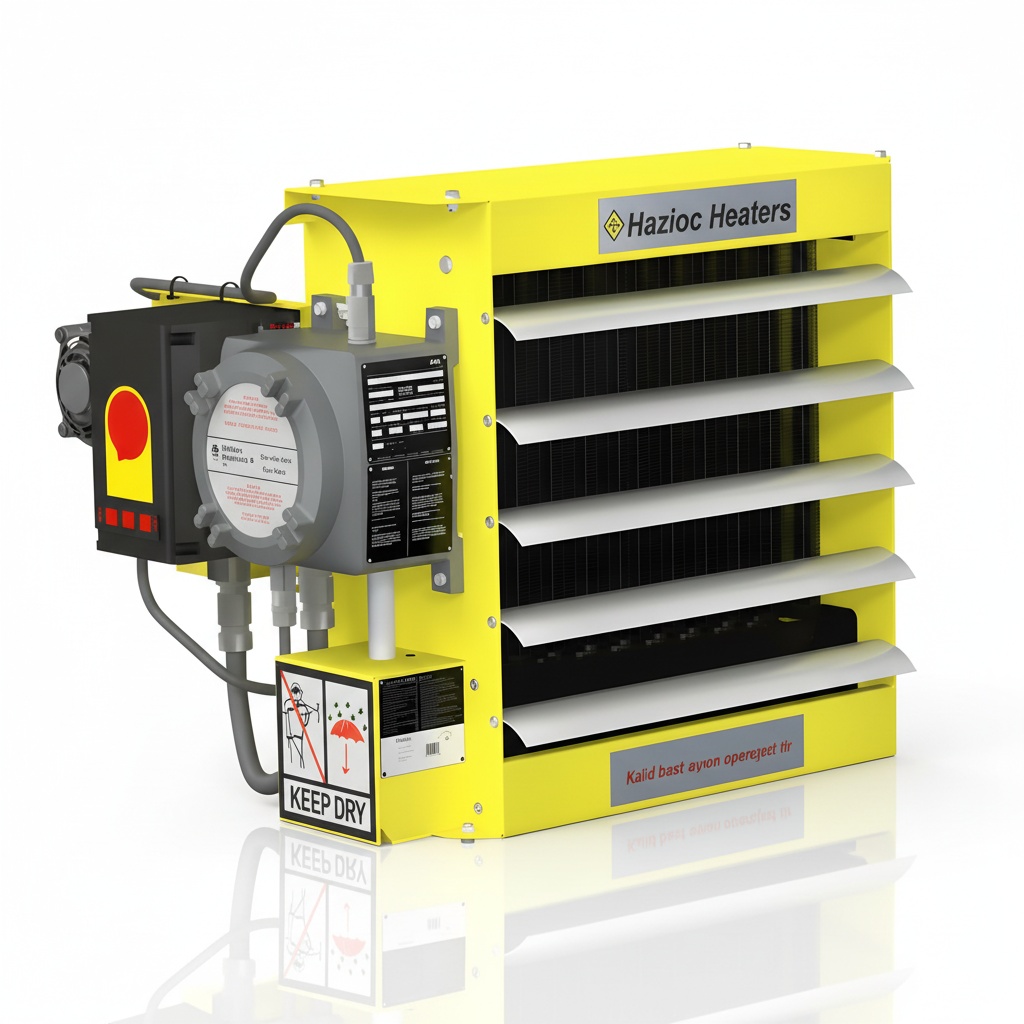

Hazloc Heaters AEU1

ATEX IECEx IEC EAC CE Approved

Explosion Proof Hazardous Area Heater

Product Benefits

The rugged and versatile Hazloc AEU1 incorporates a high quality immersion heater, fan and motor assembly housed within a sturdy 2 mm (14 GA) steel cabinet with epoxy/polyester powder coating for corrosion resistance. As well as a large control enclosure with an extra port for convenient wiring of an external room thermostat, and enclosure O-rings to minimise moisture ingress.

Standard safety features include two temperature high limits and a pressure relief device.

All Hazloc Heaters AEU1 are designed for use in the toughest hazardous area applications.

All cabling used on the AEU1 heater is marine-grade armoured cable and marine-grade cable glands between enclosures.

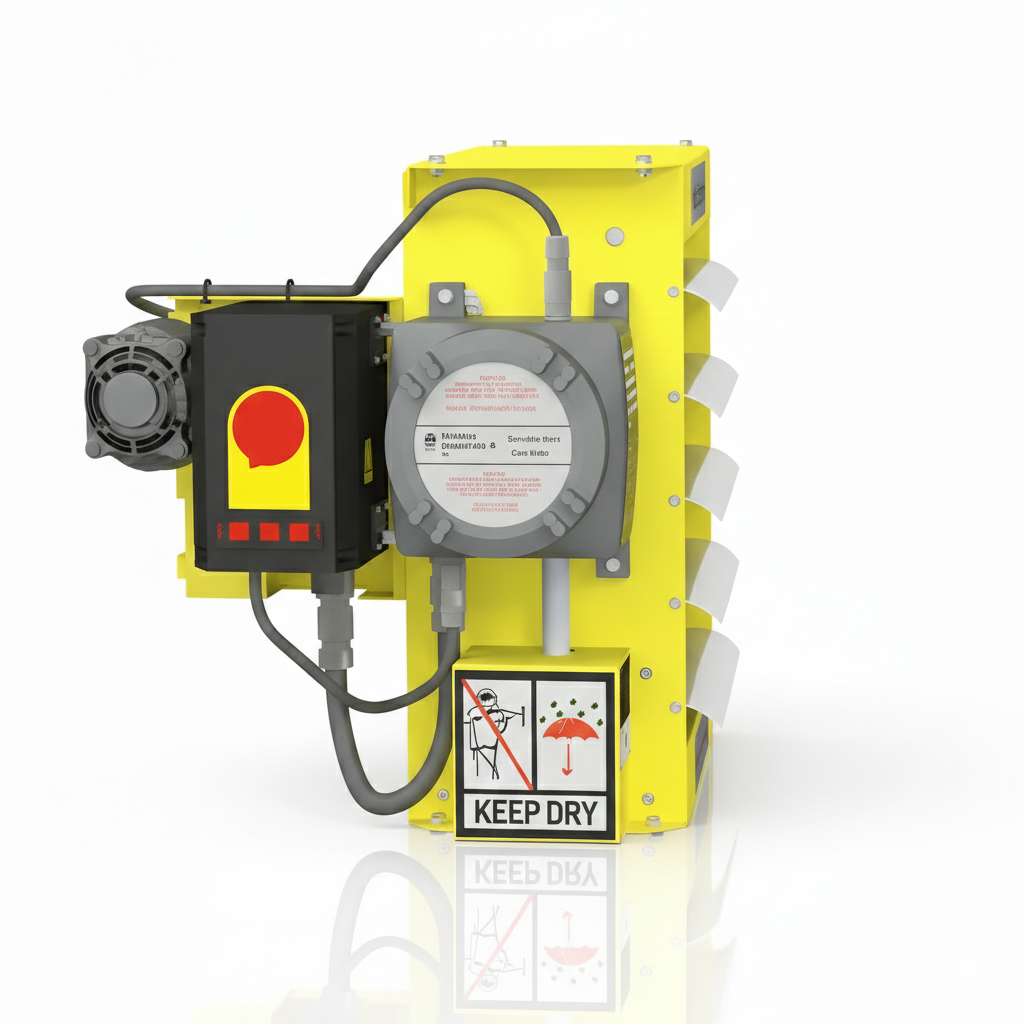

Hazloc Heaters Aeu1

Key Features of Hazloc AEU1

  • Four mounting holes in top panel for dynamic load mounting
  • High-quality pressure relief device prevents premature venting
  • Stiffened top panel improves mounting strength
  • 1″ NPT, main electrical entry shipped with M25 adaptor
  • Additional 3/4″ NPT external thermostat entry shipped with certified blanking plug
  • Flameproof (Ex d) and dust protected (Ex tb) control box with large opening for easy access to controls
  • Epoxy/Polyester coated 2 mm steel cabinet construction for durability
  • Automatic and manual high limits in element enclosure housing for added protection
  • Flameproof (Ex d) or dust protected (Ex tb) 1500 RPM , 71 frame
  • Steel braided flexible control cable and cable glands for secure connections
  • O-rings on control & element enclosure lids to minimise moisture ingress
  • 3kW model across all voltages
  • 230V, 3 Phase, 50 Hz models up to 15 kW are now available
  • Bi-metal BTX1-E-A thermostat or electronic XET1-1-E-A thermostat options now available
  • Disconnect switch option
  • Continuous fan
  • Heresite costed core and cabinet options
Hazloc Heaters AEU1 Hazardous Area Heater Product Benefits

Hazloc Heaters AEU1 Hazardous Area Heater | Product Benefits

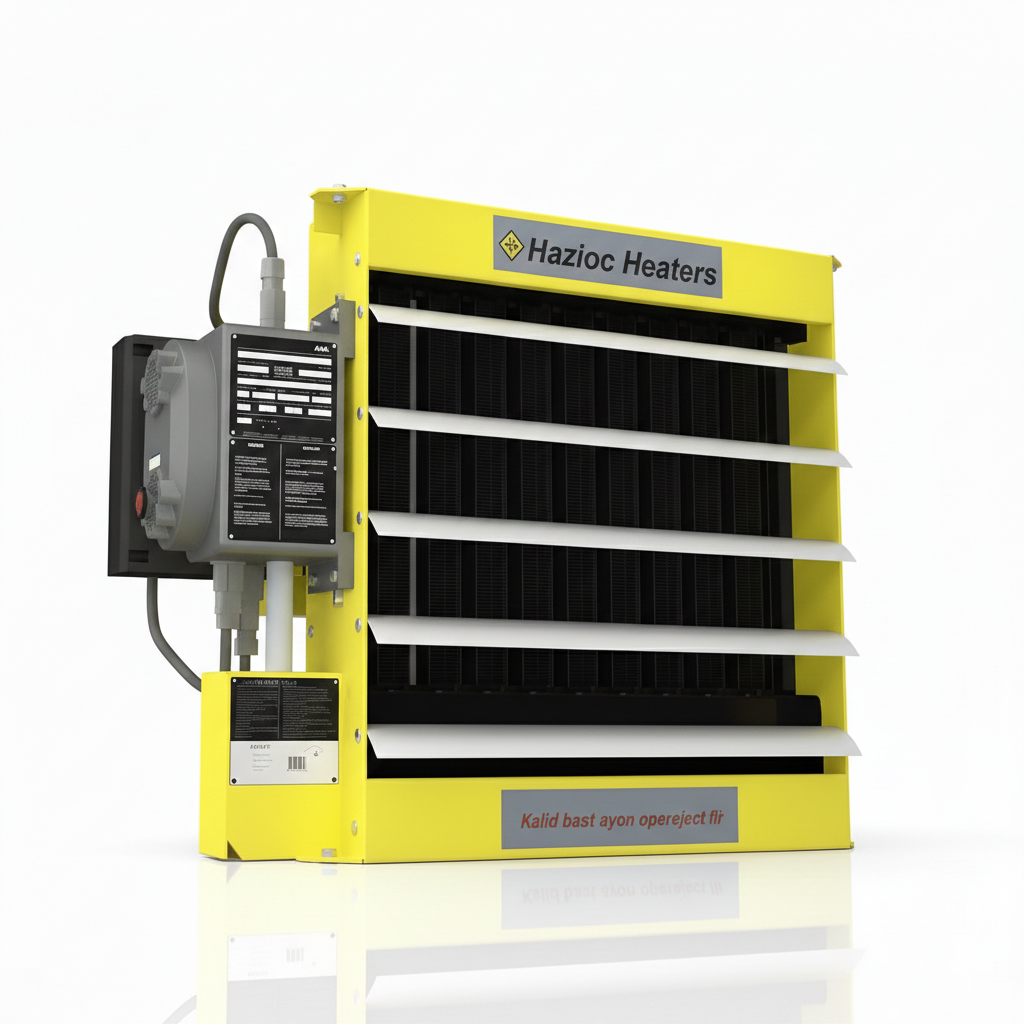

Hazloc Heaters AEU1

Technical Specifications

Hazardous
Location
Approvals
ATEX (Gas atmospheres)SIRA 13 ATEX 1240X CE 2813 Ex II 2G Ex d IIB T4 Gb IP55
(Suitable for Zone 1 and 2)
-40°C ≤ Tamb ≤ +40°C
ATEX (Dust atmospheres) 5 mm maximumSIRA 13 ATEX 1240X CE 2813 Ex II 2D Ex tb IIIB T135°C Db IP65
(Suitable for Zone 21 and 22)
-30°C ≤ Tamb ≤ +40°C
IECEx (Gas atmospheres)IECEX CSA 13.0034X Ex d IIB T4 Gb IP55 (Suitable for Zone 1 and 2)-40°C ≤ Tamb ≤ +40°C
IECEx (Dust atmospheres) 5 mm maximumIECEX CSA 13.0034X Ex tb IIIB T135°C Db IP65 (Suitable for Zone 21 and 22)Without disconnect: -30°C ≤ Tamb ≤ +40°C
With disconnect: -20°C ≤ Tamb ≤ +40°C
EAC Ex (Gas atmospheres)1Ex d IIB T4 Gb X IP55 (Suitable for Zone 1 and 2)-40°C ≤ Tamb ≤ +40°C
EAC Ex( Dust atmospheres) 5 mm maximumEx tb IIIB T135°C Db X IP65 (Suitable for Zone 21 and 22)-30°C ≤ Tamb ≤ +40°C
CabinetCabinet material2 mm (14-gauge) steel. Yellow epoxy/polyester powder coated with five-stage pre-treatment, including iron phosphate.
Fan guardSplit design with close wire spacing. A 9.5 mm diameter probe will not enter. Black polyester powder coated.
Louvre bladesAnodised extruded aluminium.
FastenersZinc plated steel for corrosion resistance.
EnclosureFlame proof (Ex d) and dust protected (Ex tb) cast aluminium with O-ring.
Mounting holes14 mm diameter holes – Four located on the top face of heater.
Motor/FanMotor typeFlameproof (Ex d) or dust protected (Ex tb), thermally protected, 1500 RPM (nominal) permanently lubricated ball bearing type with 71 frame and “easy-off” fan blade replacement feature.
FanThree-blade non sparking aluminium, steel spider and hub with 14 mm bore.
HeatExchangerHeating elementsLong-life, low watt-density, high grade metal-sheathed.
Heat transfer fluidEthylene glycol and water including corrosion inhibitors.
ExCaliberTM CoreCarbon steel headers and element housing with O-ring. Fin tubes are carbon steel tubes with copper-free, roll-formed aluminium fins @ 2.5 mm pitch. Vacuum sealed. Coated with black, high-heat enamel.
ProtectionTemperature high limitsOne automatic reset rated for 100,000 cycles, and one manual reset. Both are snap-action bi-metal type, open on temperature rise.
Pressure reliefHigh-quality stainless steel pressure relief device.
ControlsControl circuitBuilt-in 24VAC control. (1.04 amps, 25VA, grounded)
Control contactor40 FLA amp (50 A resistive per pole) Definite Purpose. Rated for 500,000 mechanical operations.
Control transformerMultitap primary, 24VAC secondary.
Fuse protectionThermal delay fuse with spare, .25” x 1.25” , 24VAC = 1A.
Room thermostat with lockable temperature dial (option code T1 or T2)Built-in, BTX1-E-A bi-metal (T1) or XET1-1-E-A (T2) electronic explosion-proof thermostat, 5°C to 25°C (40°F to 80°F). Marine-grade armoured cable and cable glands between enclosures. Wall mount thermostats also available – Contact T&D.
Load
Isolation
Disconnect switch with lockable handle
(option code D2 or D4)
Built-in CEAG 20 Amp (D2) or 40 Amp (D4) disconnect switch with lockout feature. Built-in disconnect switch is shipped with a prebuilt gland/cable assembly that must be installed and inspected on site.
Additional
Options
Continuous fan (option code F)Continuous fan operation. Circulates air and prevents gas pockets from forming.
Heresite Coating(option code H1, H2, H3)H1 = Heresite core; or H2 = Heresite cabinet (includes louvres & fan blade); or H3 = Heresite core and cabinet. Note: contact T&D for Heresite lead time.
Operating
Limits
Ambient temperatureOperation: refer to above Hazardous Location Approvals. Storage: -50°C to 60°C.
Maximum altitude3000 m above sea level.



Offshore Heaters

Shipping Vessel & Offshore Rig Heaters



AEU1 EXPLOSION PROOF ELECTRIC air HEATER

PRODUCT SPECIFICATION

Hazloc AEU1 specifications for all 50 Hz models by size

ModelAEU1-12AEU1-16AEU1-20
Fan Diameter in (mm)12 (305)16 (406)20 (508)
Nominal kW357.51015202530
Air Delivery m3/hr595680101913592039288835685097
Approx. Air Velocity m/s2.12.43.64.94.15.84.66.6
Approx. Horizontal Air Throw m3.94.66.79.110.114.012.518.6
Motor Power kW (HP)0.37 (½)
Max. Mounting Height m (to underside of heater)2.12.12.32.93.03.43.64.6

AEU1 Explosion Proof Electric Heater

Product Specification

Hazloc AEU1 specifications for all 60 Hz models by size

ModelAEU1-12AEU1-16AEU1-20
Fan Diameter in (mm)12 (305)16 (406)20 (508)
Nominal kW357.51015202530
Air Delivery m3/hr714815122516302445346542806115
Approx. Air Velocity m/s2.22.94.35.94.97.05.57.9
Approx. Horizontal Air Throw m4.75.58.011.012.116.815.022.3
Motor Power kW (HP)0.37 (½)
Max. Mounting Height m (to underside of heater)2.12.12.32.93.03.43.64.6
Hazardous Area Electrical Heaters - Hazloc XEU1

Hazardous Area Electrical Heaters – Hazloc XEU1

Hazloc HEATERS

FOR HAZARDOUS AREA & industrial heating

Hazloc Heaters range of Industrial grade and ATEX, IECEx and CSA certified electrical heating equipment include – Hydronic High Performance Heater (HHP2), Hydronic Unit Heater (HUH2) and Explosion-Proof Electrical Heaters (XEU1 AEU1).

380V, 440V and 480V elecric heaters are available in 50 Hz – 60 Hz frequency models and suitable for steam, hot water, glycol or other fluid circulating heating systems.



Hazloc Heaters - Hazardous Area Electrical Heating Equipment (ATEX IECEX CSA)

Hazloc Heaters – Hazardous Area Electrical Heating Equipment (ATEX IECEX CSA)

HAZARDOUS AREA HEATING APPLICATIONS

Heating Hazardous Areas With Electrical Heaters

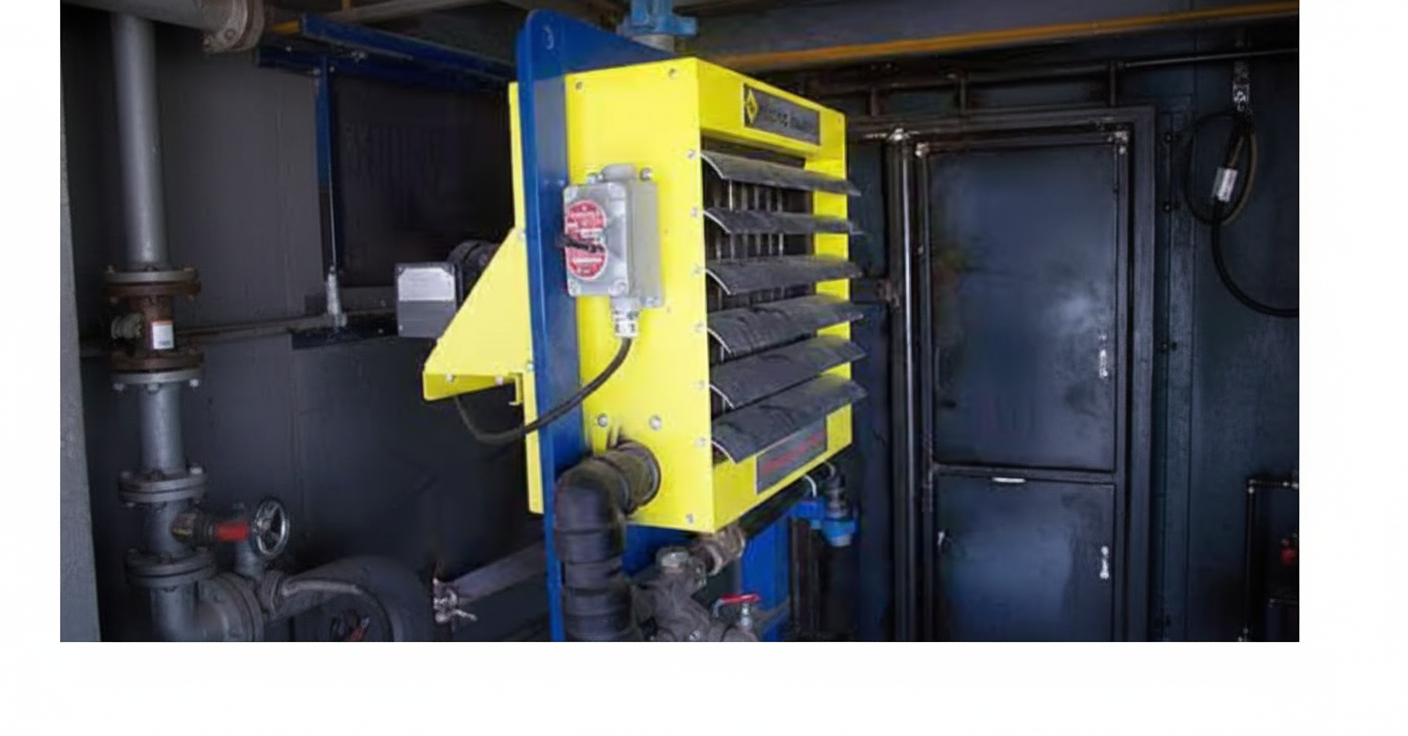

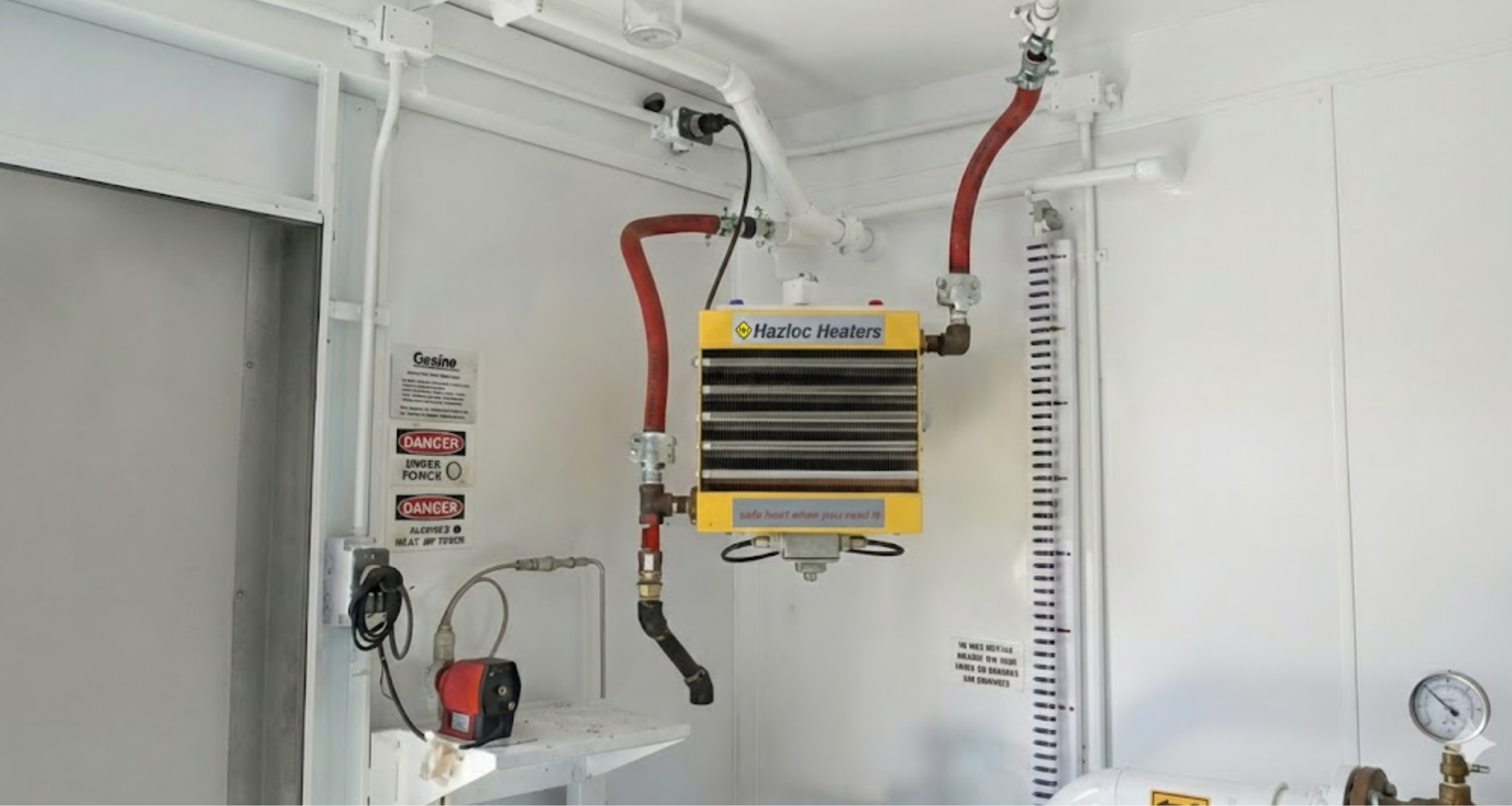

Mud Tank Building, Boiler Packages, Service Rigs, Drilling Rigs, Paint Spray Booths, Offshore Cabins & Containers.
