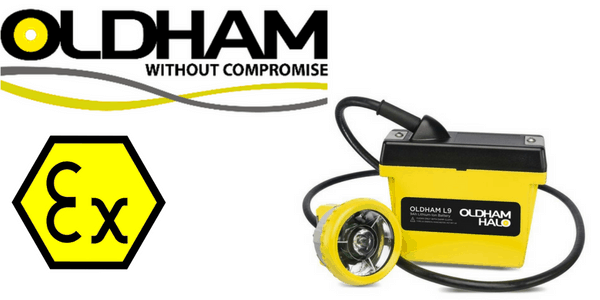

Oldham Caplamps are Hazardous Area Group 1 Mining Caplamps for safe use in underground hazardous location mines and non-hazardous (hard-rock) type mines.

Oldham Caplamp DL9 combines reliability and rugged construction with the latest LED and lithium-ion (li-ion) technologies to produce a brighter, longer lasting and smaller/lighter lamp.

The Oldham DL9 is not certified against mining safety standards and is therefore only recommended for use in hard-rock mining and tunnelling or other non-hazardous mining applications.

Oldham Caplamp DL9 ATEX Lamps – Features & Benefits

Portable ATEX Heaters For Zone 1 & Zone 2 Hazardous Area Applications

ATEX Mining  Caplamps

  • Extreme lightweight of the Lithium-ion battery – reduced weight for user to carry, less fatigue.
  • Lithium-ion battery does not suffer from “memory effect” – full capacity available every time after recharge.
  • Lithium-ion battery has low self-discharge rate – long caplamp shelf life if stored during mine down-time.
  • Rugged battery and headpiece design – longer life expectancy, even in the harshest environments.
  • Maintenance-free battery design – reduced lamp room maintenance requirements.
  • Maintenance-free “D” headpiece – no downtime due to maintenance or failed light source.
  • 53 lumen output focussed over 4.5 degrees angle – high intensity light concentrated in the field of vision.
  • Dual reflector technology – optimum focus of LED for precise and intense illumination.
  • Genuine 3 Watt LED main light source – greater light output intensity, superior to any competitor.
  • Inter-modular battery and lamptop design – fully compatible & interchangeable with other Oldham products.
  • Mixed charging versatility – although micro-processor type chargers always give the best performance, the L9 battery is fully suited to recharge on conventional constant-current chargers

OLDHAM CAPLAMP DL9 ATEX LAMPS – Technical Specification

Oldham Caplamp DL9 – Hazardous Area Group 1 Mining M2 ATEX Lamps – “D” Headpiece & Cable Specification
Number of LEDs 2 (1 main, 1 auxillary)
Main LED Rating 4.1V-3W 53 Lumens ~ 12 Hour Shift
Auxillary LED Rating 0.08 Watts
Type of Cable Flexible Twin Core Short Lay Polychloroprene Sheath
Light Output 2500 Lux at 1.0m
Maximum Beam Intensity Over 4.5º 10,000cd
Angle Over Which Intensity Is Not Less Than 1 Candela 120º
Burning Time With Auxillary Light 500 Hours
Fuse Rating 3A
Length of Battery (At Base / At Lid) 111 / 152mm
Height of Battery Terminals / Cover 95 / 125mm
Width of Battery 55mm
Battery Case & Cover Material Polycarbonate
Nominal Battery Voltage 4.20V
Numbers of Cells 8
Fuse Rating 3A
Capacity to 3.3 Volts 9Ah
Lamp Weight 400g
Battery Weight 400g
Maintenance None – Maintenance Free
Charging Care should be taken to recharge the DL9 at a maximum of 4.2- volt. Charging at higher voltages will invalidate warranty and may lead to permanent damage to the battery.
Hazardous Area Certification ATEX M2 Rated EEx1 (Ta = 0ºC to +40ºC)
ATEX EPSILON 07 ATEX 2151, IECEx ITS 08.0019



OLDHAM CAPLAMP DL9 ATEX LAMPSMining

Battery & Caplamp PArt Numbers

  • L9 Lithium-Ion Battery M456623
  • DL9 Lamp (53 Lumen main LED) M271351
  • Single Lamp Charger M656501
  • 10-Lamp Charger M656601

Group 1 Mining LampsMining Caplamps - Group 1 M1 M2 Hazardous Area Lighting

Category M0, M1 & M2 Underground Coal Mining Hazardous Area Location Caplamps

Group 1 mining locations refer to underground coal mining areas and parts of surface mines liable to exposure of firedamp (methane) and/or combustible dusts. The 3 risk levels of explosion protection according to Group 1 are:

  • Mining Category M2 Occasional Short Duration Risk
  • Mining Category M1 Frequent Risk In Normal Operation
  • Mining Category M0 Permanent Risk, Continually Present
