Raytec SPX-BL24-HO | Floodlight Zone 1 & Zone 21 4,250 Lumens
Zone 1 Flood Lights ATEX, UKEX & IEC Ex Rated for Gas & Dust Explosive Atmospheres
SPARTAN Flood Light High Output range of Zone 1 floodlights form part of the ATEX Lighting range manufactured by Raytec and are designed for illuminating smaller areas which require high performance, high reliability and white-light illumination in potentially explosive atmospheres. Supplied complete with an adjustable stirrup bracket which allows full rotation so the ideal configuration can be achieved.
The hazardous area lighting has thermal management technology ensures a lifetime of 10 years+ while providing a lumen output of up to 4,250 delivered lumens. All SPARTAN luminaires come with an industry leading 5 year warranty.
Hazardous Area Rating: Zone 1 – Gas & Dust
Zone 1 Gas
- II 2 G D
- Ex e mb op is IIC T4 Gb
- Ta= Up to -52°C to +55°C (-20°C to +46°C for emergency variants)
Hazardous Area T Rating – T4
Zone 21 Dust
- Ex tb op is IIC T98°C Db
- Ta= Up to -52°C to +55°C (-20°C to +46°C for emergency variants)
- IP66 & IP67

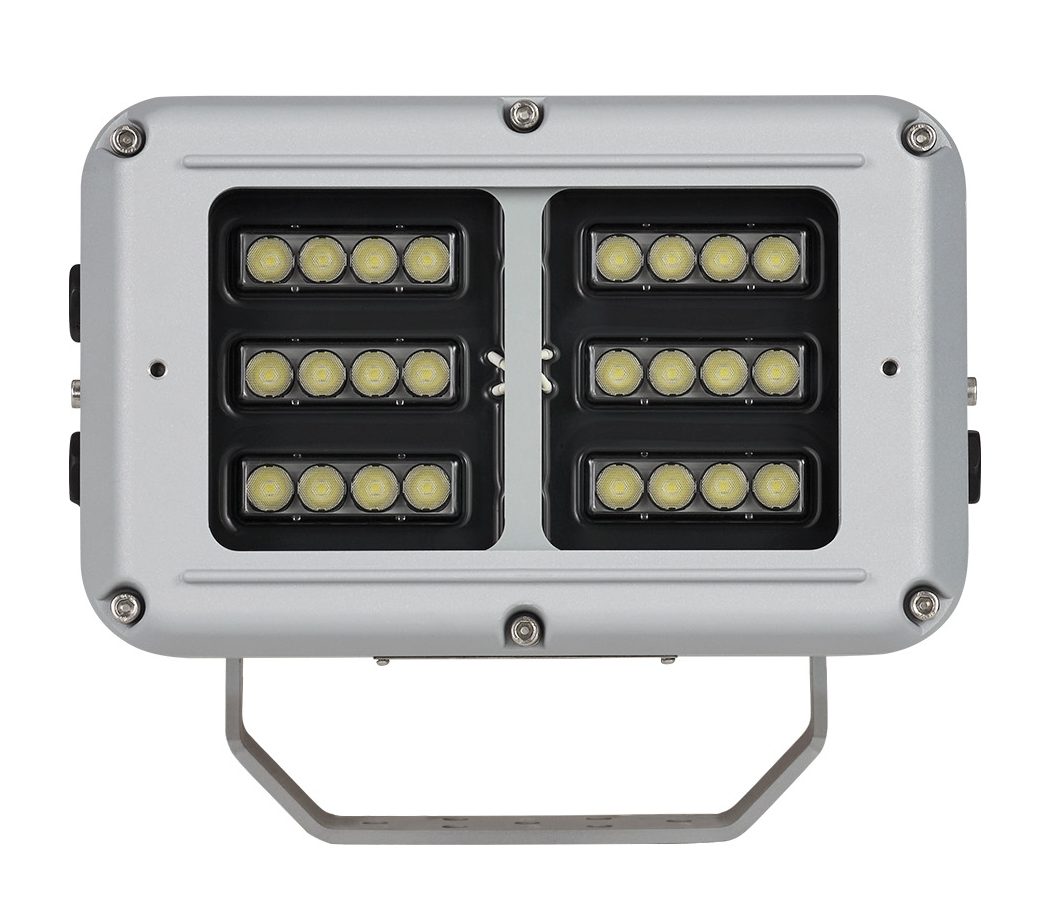

SPARTAN Flood SPX-BL24-HO
Zone 1 floodLights
Features & Benefits
ATEX FloodLight
- Raytec Part Number – SPX-BL24-HO
- ATEX & IEC Ex approved – Zone 1 (Gas) & Zone 21 (Dust)
- UKCA approved
- Ultra Long Life LED
- High Lumen Output LED
- Compact, Low Profile Design
- Easy Installation and Maintenance
- Emergency Variants
- Wide Operating Temp -50° to +55°
- Zone 2 Variants available
- 5 Year Warranty
- UK Designed and Manufactured
Flood BL24 is designed from marine grade aluminium with stainless steel bracketry and fastenings to ensure it can withstand the most extreme environments. Raytec are specialists in LED and SPARTAN Flood has been specifically designed around the LEDs with a bespoke housing for optimum performance and reliability.

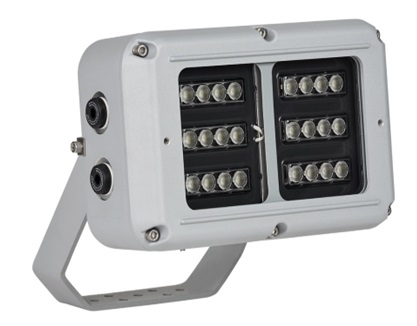

BL24 Bulkhead Stirrup Bracket Mount

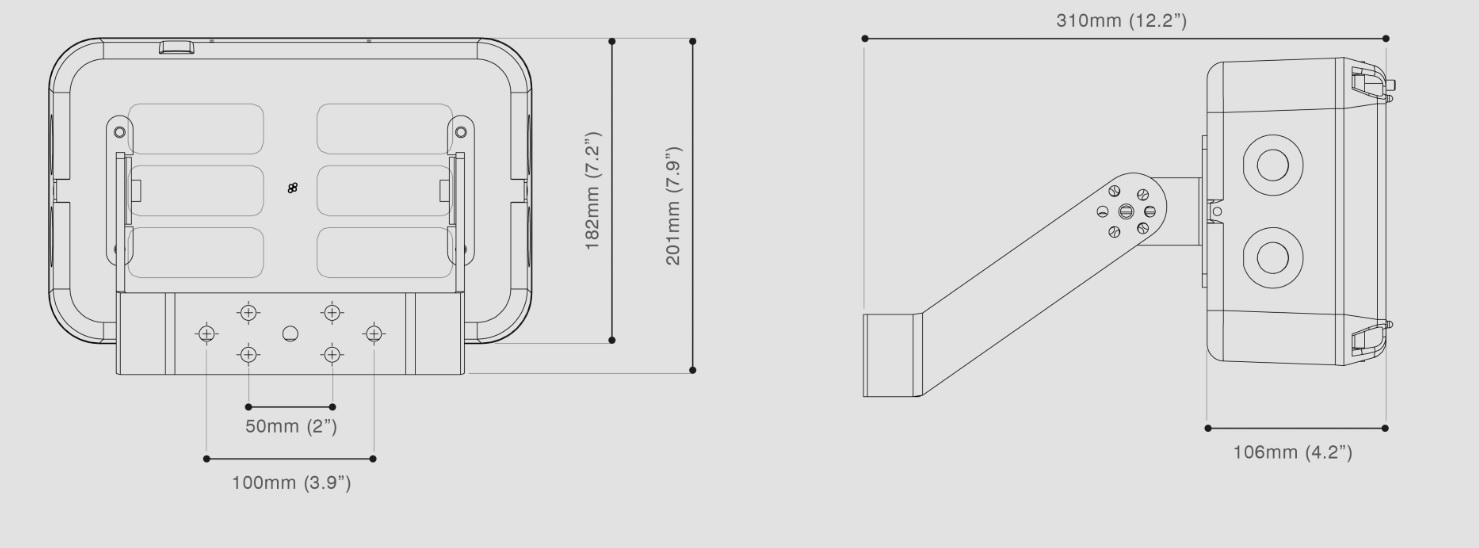

Flood BL24 – Product Dimensions
Raytec SPARTAN FLOOD Light
Technical Specification
| Certification: | ATEX and IEC Ex rated for Zone 1 and 21 Gas and Dust. UKCA approved. |
| Beam Angles: | 10°x 10° or 30°x 30° or 50°x 50° or 80°x 80° or 120°x 120° (10 x 10 option can be upgraded to Vario Technology) |
| Input: | 110-254V 50/60Hz AC only Low voltage: 18-48V AC and 18-69V DC Extra low voltage: 12V AC/DC |
| Beam Shape: |
Elliptical or Circular |
| Lumen Output: | 4,250 lm – circular beam patterns 4,000 lm – elliptical beam patterns (VARIO) |
| Beam Angle System: | VARIO interchangeable lens system (elliptical) / Fixed (circular) |
| Consumption: | 34W |
| LED Type: | Platinum SMT LEDs |
| Number of LEDs: | 24 |
| Wavelength: | White-Light (6,500K+) |
| IP Rating: | IP66 and IP67 |
| Temperature Range: | -50°C to +55°C |
Zone 1 FloodLights Product Codes
Circular Beam Pattern
| SPX-BL24-HO-W-1010-SB30 | SPARTAN Bulkhead 24 LED, Zone 1/21, High Output, White Light 10°x10° beam Stirrup Bracket Mount |
| SPX-BL24-HO-W-1010-EMX25 -SB30 | SPARTAN Bulkhead 24 LED, Zone 1/21, High Output,White Light 10°x10° beam – Intelligent Emergency Variant (25% Output) Stirrup Bracket Mount |
| SPX-BL24-HO-W-3030-SB30 | SPARTAN Bulkhead 24 LED, Zone 1/21, High Output,White Light 30°x30° beam Stirrup Bracket Mount |
| SPX-BL24-HO-W-3030-EMX25-SB30 | SPARTAN Bulkhead 24 LED, Zone 1/21, High Output,White Light 30°x30° beam – Intelligent Emergency Variant (25% Output) Stirrup Bracket Mount |
| SPX-BL24-HO-W-5050-SB30 | SPARTAN Bulkhead 24 LED, Zone 1/21, High Output,White Light 50°x50° beam Stirrup Bracket Mount |
| SPX-BL24-HO-W-5050-EMX25-SB30 | SPARTAN Bulkhead 24 LED, Zone 1/21, High Output,White Light 50°x50° beam – Intelligent Emergency Variant (25% Output) Stirrup Bracket Mount |
| SPX-BL24-HO-W-8080-SB30 | SPARTAN Bulkhead 24 LED, Zone 1/21, High Output,White Light 80°x80° beam Stirrup Bracket Mount |
| SPX-BL24-HO-W-8080-EMX25-SB30 | SPARTAN Bulkhead 24 LED, Zone 1/21, High Output,White Light 80°x80° beam – Intelligent Emergency Variant (25% Output) Stirrup Bracket Mount |
| SPX-BL24-HO-W-120120-SB30 | SPARTAN Bulkhead 24 LED, Zone 1/21, High Output,White Light 120°x120° beam Stirrup Bracket Mount |
| SPX-BL24-HO-W-120120-EMX25-SB30 | SPARTAN Bulkhead 24 LED, Zone 1/21, High Output,White Light 120°x120° beam – Intelligent Emergency Variant (25% Output) Stirrup Bracket Mount |
Elliptical Beam Pattern
| SPX-BL24-HO-W-3510-SB30 | SPARTAN Bulkhead 24 LED, Zone 1/21, High Output,White Light 35°x10° beam Stirrup Bracket Mount |
| SPX-BL24-HO-W-3510-EMX25-SB30 | SPARTAN Bulkhead 24 LED, Zone 1/21, High Output,White Light 35°x10° beam – Intelligent Emergency Variant (25% Output) Stirrup Bracket Mount |
| SPX-BL24-HO-W-6025-SB30 | SPARTAN Bulkhead 24 LED, Zone 1/21, High Output,White Light 60°x25° beam Stirrup Bracket Mount |
| SPX-BL24-HO-W-6025-EMX25-SB30 | SPARTAN Bulkhead 24 LED, Zone 1/21, High Output,White Light 60°x25° beam – Intelligent Emergency Variant (25% Output) Stirrup Bracket Mount |
| SPX-BL24-HO-W-8030-SB30 | SPARTAN Bulkhead 24 LED, Zone 1/21, High Output,White Light 80°x30° beam Stirrup Bracket Mount |
| SPX-BL24-HO-W-8030-EMX25-SB30 | SPARTAN Bulkhead 24 LED, Zone 1/21, High Output,White Light 80°x30° beam – Intelligent Emergency Variant (25% Output) Stirrup Bracket Mount |
| SPX-BL24-HO-W-12050-SB30 | SPARTAN Bulkhead 24 LED, Zone 1/21, High Output,White Light 120°x50° beam Stirrup Bracket Mount |
| SPX-BL24-HO-W-12050-EMX25-SB30 | SPARTAN Bulkhead 24 LED, Zone 1/21, High Output,White Light 120°x50° beam – Intelligent Emergency Variant (25% Output) Stirrup Bracket Mount |
- Intelligent Emergency variant available, add -EMX25 to the above codes
- 18-69V variants available, add -LV to the above codes
- 12V variants available, add -ELV to the above codes
- For options fitted with photocell add ‘-PC’ to the above codes
- Contact T&D for T5 variants
ATEX Lighting manufactured by Raytec for use in Zone 1 and Zone 2 hazardous areas – this includes floodlights, linear light fittings, bulkheads and high bay lighting for explosion protection concepts including Ex d Flameproof and Ex e Explosion Proof applications.
Raytec ATEX FloodLight SPARTAN Zone 1 SPX-BL24
