ATEX Bulkhead Light (Linear) | Zone 1 LED Hazardous Area Lighting

Raytec SPARTAN Bulkhead Light (Linear) is a globally certified (ATEX, IEC Ex & EAC) range of LED bulkhead lights designed for all Zone 1 and Zone 2 hazardous area lighting environments – LED luminaires designed for all new Zone 1 and Zone 2 hazardous area installations or to retrofit existing fluorescent installations.

• Ultra Long Life LED Bulkhead Light
• High Lumen Light Output LED
• Certification: ATEX and IEC Ex rated for Zone 1 and 2 Gas and Dust, and UL/CSA inc. C1D2 and ABS

ATEX

Zone 1 Bulkhead Light ATEX Rating: ATEX and IEC Ex rated for Gas & Dust Explosive Atmospheres

Hazardous Area Rating: Zone 1 – Gas & Dust

The Raytec ATEX range of light fittings are certified according to international lighting classifications and approvals including ATEX & IECEx according to the following types of explosion protection and codes:

ATEX Bulkhead Lights

Zone 1 Gas

• II 2 G D
• Ex e mb op is IIC T4 Gb
• Ta= Up to -52°C to +55°C (-20°C to
• +46°C for emergency variants)

Zone 21 Dust

• Ex tb op is IIC T98°C Db
• Ta= Up to -52°C to +55°C (-20°C to
• +46°C for emergency variants)
• IP66 & IP67

Specification

• ATEX and IEC Ex approved – Zone 1
• UL/CSA approved including C1D2 and ABS
• Ultra Long Life LED
• High Lumen Output LED
• Compact, Low Profile Design
• Easy Installation and Maintenance
• Emergency Variants
• Wide Operating Temp -50° to +55°
• VARIO Lens Technology – easy modification of beam patterns
• Zone 2 Variants available
• 5 Year Warranty
• UK Designed and Manufactured

LED Bulkhead Light Zone 1

Hazardous Area LED Lighting

Zone 1 hazardous area lighting products are manufactured in the UK by Raytec and are ATEX and IEC Ex approved and supplied with a 5 year warranty – a full family of ATEX lighting products includes SPARTAN Flood, Linear, Bulkhead, High Bayand Crane Floodlights for Zone 1.

SPARTAN Bulkhead by Raytec | Linear Bulkhead Light Zone 1 – standard or emergency variant lights with lumen output of up to 2,500 delivered lumens. SPARTAN bulkhead lights are globally certified for all Zone 1, Zone 2 and Industrial lighting applications.

LED bulkhead lights provide high performance, high specification, hazardous area lighting delivering world class leading performance and reliability and compliance with international classifications including ATEX and IEC Ex.

Zone 1/21 ATEX and IEC Ex LED Bulkhead luminaire

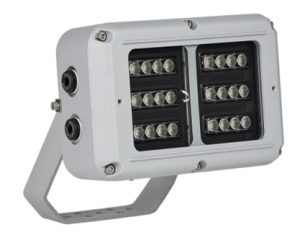

SPARTAN Zone 1/21 Bulkhead BL24
Circular Beam Pattern
SPX-BL24-W-1010-SB30	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 10°x10° beam Stirrup Bracket Mount
SPX-BL24-W-1010-EMX25-SB30	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 10°x10° beam – Intelligent Emergency Variant (25% Output)  Stirrup Bracket Mount
SPX-BL24-W-3030-SB30	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 30°x30° beam Stirrup Bracket Mount
SPX-BL24-W-3030-EMX25-SB30	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 30°x30° beam – Intelligent Emergency Variant (25% Output)  Stirrup Bracket Mount
SPX-BL24-W-5050-SB30	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 50°x50° beam Stirrup Bracket Mount
SPX-BL24-W-5050-EMX25-SB30	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 50°x50° beam – Intelligent Emergency Variant (25% Output)  Stirrup Bracket Mount
SPX-BL24-W-8080-SB30	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 80°x 80° beam Stirrup Bracket Mount
SPX-BL24-W-8080-EMX25-SB30-SB30	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 80°x80° beam – Intelligent Emergency Variant (25% Output) Stirrup Bracket Mount
SPX-BL24-W-120120-SB30	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x120° beam Stirrup Bracket Mount
SPX-BL24-W-120120-EMX25-SB30	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x120° beam – Intelligent Emergency Variant (25% Output)  Stirrup Bracket Mount
Elliptical Beam Pattern
SPX-BL24-W-3510-SB30	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 35°x10° beam Stirrup Bracket Mount
SPX-BL24-W-3510-EMX25-SB30	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 35°x10° beam – Intelligent Emergency Variant (25% Output)  Stirrup Bracket Mount
SPX-BL24-W-6025-SB30	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 60°x25° beam Stirrup Bracket Mount
SPX-BL24-W-6025-EMX25-SB30	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 60°x25° beam – Intelligent Emergency Variant (25% Output)  Stirrup Bracket Mount
SPX-BL24-W-8030-SB30	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 80°x30° beam Stirrup Bracket Mount
SPX-BL24-W-8030-EMX25-SB30	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 80°x30° beam – Intelligent Emergency Variant (25% Output)  Stirrup Bracket Mount
SPX-BL24-W-12050-SB30	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x50° beam Stirrup Bracket Mount
SPX-BL24-W-12050-EMX25-SB30	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x50° beam – Intelligent Emergency Variant (25% Output)  Stirrup Bracket Mount

Zone 1/21 ATEX and IEC Ex LED Spigot Mount Bulkhead Luminaires – BL24
Circular Beam Pattern
SPX-BL24-W-1010-SP	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 10°x10° beam Spigot Mount 34mm entry
SPX-BL24-W-1010-SP48	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 10°x10° beam Spigot Mount 48mm entry
SPX-BL24-W-1010-EMX25 -SP	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 10°x10° beam –  Intelligent Emergency Variant (25% Output) Spigot Mount 34mm entry
SPX-BL24-W-1010-EMX25 -SP48	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 10°x10° beam –  Intelligent Emergency Variant (25% Output) Spigot Mount 48mm entry
SPX-BL24-W-3030-SP	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 30°x30° beam Spigot Mount 34mm entry
SPX-BL24-W-3030-SP48	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 30°x30° beam Spigot Mount 48mm entry
SPX-BL24-W-3030-EMX25-SP	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 30°x30° beam –  Intelligent Emergency Variant (25% Output) Spigot Mount 34mm entry
SPX-BL24-W-3030-EMX25-SP48	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 30°x30° beam –  Intelligent Emergency Variant (25% Output) Spigot Mount 48mm entry
SPX-BL24-W-5050-SP	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 50°x50° beam Spigot Mount 34mm entry
SPX-BL24-W-5050-SP48	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 50°x50° beam Spigot Mount 48mm entry
SPX-BL24-W-5050-EMX25-SP	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 50°x50° beam –  Intelligent Emergency Variant (25% Output) Spigot Mount 34mm entry
SPX-BL24-W-5050-EMX25-SP48	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 50°x50° beam –  Intelligent Emergency Variant (25% Output) Spigot Mount 48mm entry
SPX-BL24-W-8080-SP	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 80°x80° beam Spigot Mount 34mm entry
SPX-BL24-W-8080-SP48	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 80°x80° beam Spigot Mount 48mm entry
SPX-BL24-W-8080-EMX25-SP	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 80°x80° beam –  Intelligent Emergency Variant (25% Output) Spigot Mount 34mm entry
SPX-BL24-W-8080-EMX25-SP48	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 80°x80° beam –  Intelligent Emergency Variant (25% Output) Spigot Mount 48mm entry
SPX-BL24-W-120120-SP	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x120° beam Spigot Mount 34mm entry
SPX-BL24-W-120120-SP48	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x120° beam Spigot Mount 48mm entry
SPX-BL24-W-120120-EMX25-SP	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x120° beam –  Intelligent Emergency Variant (25% Output) Spigot Mount 34mm entry
SPX-BL24-W-120120-EMX25-SP48	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x120° beam –  Intelligent Emergency Variant (25% Output) Spigot Mount 48mm entry
Elliptical Beam Pattern
SPX-BL24-W-3510-SP	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 35°x10° beam Spigot Mount 34mm entry
SPX-BL24-W-3510-SP48	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 35°x10° beam Spigot Mount 48mm entry
SPX-BL24-W-3510-EMX25-SP	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 35°x10° beam –  Intelligent Emergency Variant (25% Output) Spigot Mount 34mm entry
SPX-BL24-W-3510-EMX25-SP48	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 35°x10° beam –  Intelligent Emergency Variant (25% Output) Spigot Mount 48mm entry
SPX-BL24-W-6025-SP	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 60°x25° beam Spigot Mount 34mm entry
SPX-BL24-W-6025-SP48	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 60°x25° beam Spigot Mount 48mm entry
SPX-BL24-W-6025-EMX25-SP	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 60°x25° beam –  Intelligent Emergency Variant (25% Output) Spigot Mount 34mm entry
SPX-BL24-W-6025-EMX25-SP48	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 60°x25° beam –  Intelligent Emergency Variant (25% Output) Spigot Mount 48mm entry
SPX-BL24-W-8030-SP	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 80°x30° beam Spigot Mount 34mm entry
SPX-BL24-W-8030-SP48	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 80°x30° beam Spigot Mount 48mm entry
SPX-BL24-W-8030-EMX25-SP	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 80°x30° beam –  Intelligent Emergency Variant (25% Output) Spigot Mount 34mm entry
SPX-BL24-W-8030-EMX25-SP48	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 80°x30° beam –  Intelligent Emergency Variant (25% Output) Spigot Mount 48mm entry
SPX-BL24-W-12050-SP	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x50° beam Spigot Mount 34mm entry
SPX-BL24-W-12050-SP48	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x50° beam Spigot Mount 48mm entry
SPX-BL24-W-12050-EMX25-SP	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x50° beam –  Intelligent Emergency Variant (25% Output) Spigot Mount 34mm entry
SPX-BL24-W-12050-EMX25-SP48	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x50° beam –  Intelligent Emergency Variant (25% Output) Spigot Mount 48mm entry

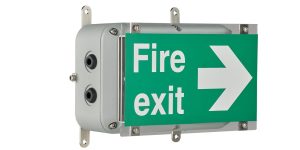

Zone 1/21 ATEX and IEC Ex LED Bulkhead luminaires complete with Exit Sign Kit BL24
SPX-BL24-W-12050-EM100-LO-EXIT	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x50° beam – Low Output  Intelligent Emergency Variant (100% Output) – With Exit Sign Kit
SPX-BL24-W-12050-EMX25-EXIT	SPARTAN Bulkhead 24 LED, Zone 1/21, White-Light 120°x50° beam –  Intelligent Emergency Variant (25% Output) – With Exit Sign Kit

Lighting Design Service for Hazardous Areas

Spartan Flood, The LED Zone 1 Bulkhead Light

Design

Thorne & Derrick, the hazardous area lighting specialists, can provide a Zone 1 lighting scheme utilising LED Bulkhead Light tailored to specific application requirements – 2D or 3D lighting designs provide visual representation of the site. The lighting design service will provide recommendations on the product type and number of lights required including the average, maximum and minimum light levels that can be achieved in accordance with ATEX and IEC Ex compliance.

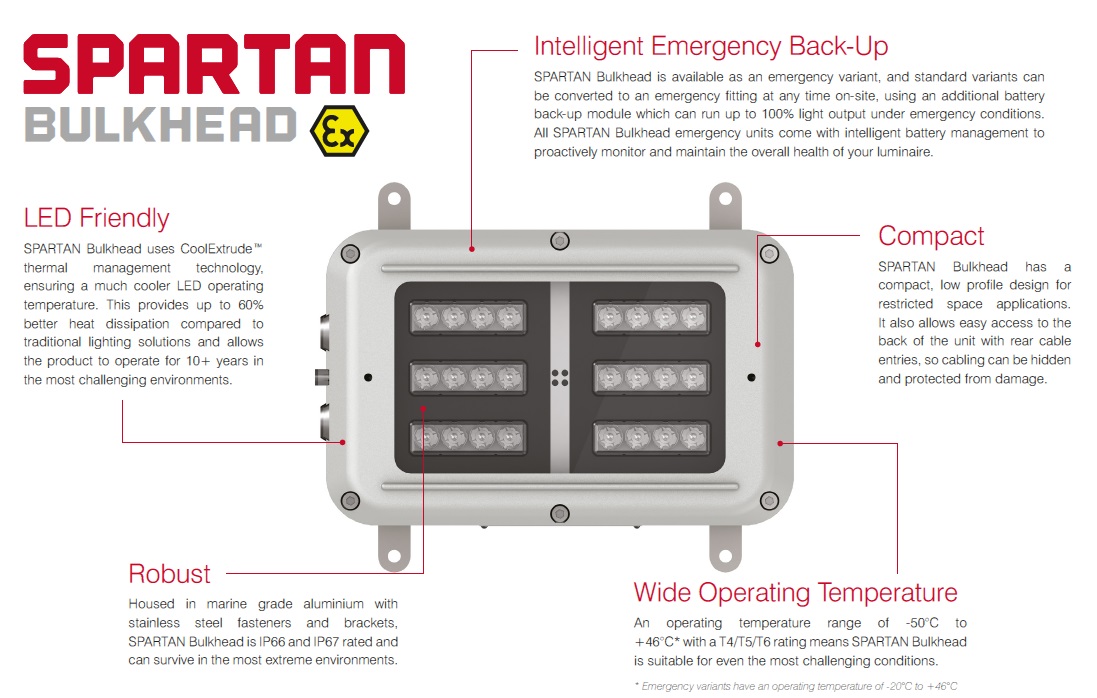

SPARTAN Bulkhead Lights are designed for Zone 1 hazardous area environments which require high performance, high reliability and brilliant White-Light illumination.

The Bulkhead Light has been designed by Raytec to light up large and open areas and is supplied with an integral dedicated bracket allowing the beam angle of light to be tilted and easily targeted into the required space.

Raytec’s field-proven, long-life LED technology SPARTAN Bulkhead lights are ATEX and IEC Ex approved for all Zone 1 hazardous area lighting applications – watch the video to learn how high lumen output is provided by the latest high performance LED technology delivering low running costs and low energy consumption.
