Zone 2 Bulkhead Lights for Hazardous Area Lighting

Bulkhead Light | Zone 2 | ATEX Certified | Hazardous Area Lighting

Zone 2 Hazardous Area

LED Bulkhead Light (Linear)

➡ View our complete range of Zone 2 Bulkhead Light manufactured by Raytec and certified according to the ATEX Directive to provide safe and reliable hazardous area lighting in potentially explosive atmospheres in both onshore and offshore locations.

➡ See also Zone 1 Bulkhead Light

Bulkhead Light

Raytec SPARTAN Bulkhead Light (Linear) is a globally certified (ATEX, IEC Ex & EAC) range of LED bulkhead lights designed for all Zone 1 and Zone 2 hazardous area lighting environments – LED luminaires designed for all new Zone 1 and Zone 2 hazardous area installations or to retrofit existing fluorescent installations.

  • Ultra Long Life LED Bulkhead Light
  • High Lumen Light Output LED
  • Certification: ATEX and IEC Ex rated for Zone 1 and 2 Gas and Dust, and UL/CSA inc. C1D2 and ABS

ATEX

Zone 2 Bulkhead Light ATEX Rating: ATEX and IEC Ex rated for Gas & Dust Explosive Atmospheres

Hazardous Area Rating: Zone 2 – Gas & Dust

ATEX Bulkhead Lights

ATEX Bulkhead Lights

Zone 2 Gas

  • II 3 GD
  • Ex ec mc op is IIC T4 Gc
  • Ta= -50°C to +55°C (-20°C to +46°C for emergency variants)

Zone 22 Dust

  • Ex tb IIIC T82°C Db
    IP66 & IP67 – Ta -50°C to +55°C (-20°C to +46°C emergency variants)

Specification

ATEX Zone 1IEX EX LightEAC Light



  • ATEX and IEC Ex approved – Zone 2
  • UL/CSA approved including C1D2 and ABS
  • Ultra Long Life LED
  • High Lumen Output LED
  • Compact, Low Profile Design
  • Easy Installation and Maintenance
  • Emergency Variants
  • Wide Operating Temp -50° to +55°
  • VARIO Lens Technology – easy modification of beam patterns
  • Zone 1 Variants available
  • 5 Year Warranty
  • UK Designed and Manufactured

LED Bulkhead Light Zone 2

Hazardous Area LED Lighting

Zone 2 hazardous area lighting products are manufactured in the UK by Raytec and are ATEX and IEC Ex approved and supplied with a 5 year warranty – a full family of ATEX lighting products includes SPARTAN Flood, Linear, Bulkhead, High Bay and Crane Floodlights for Zone 2.

ATEX Lighting

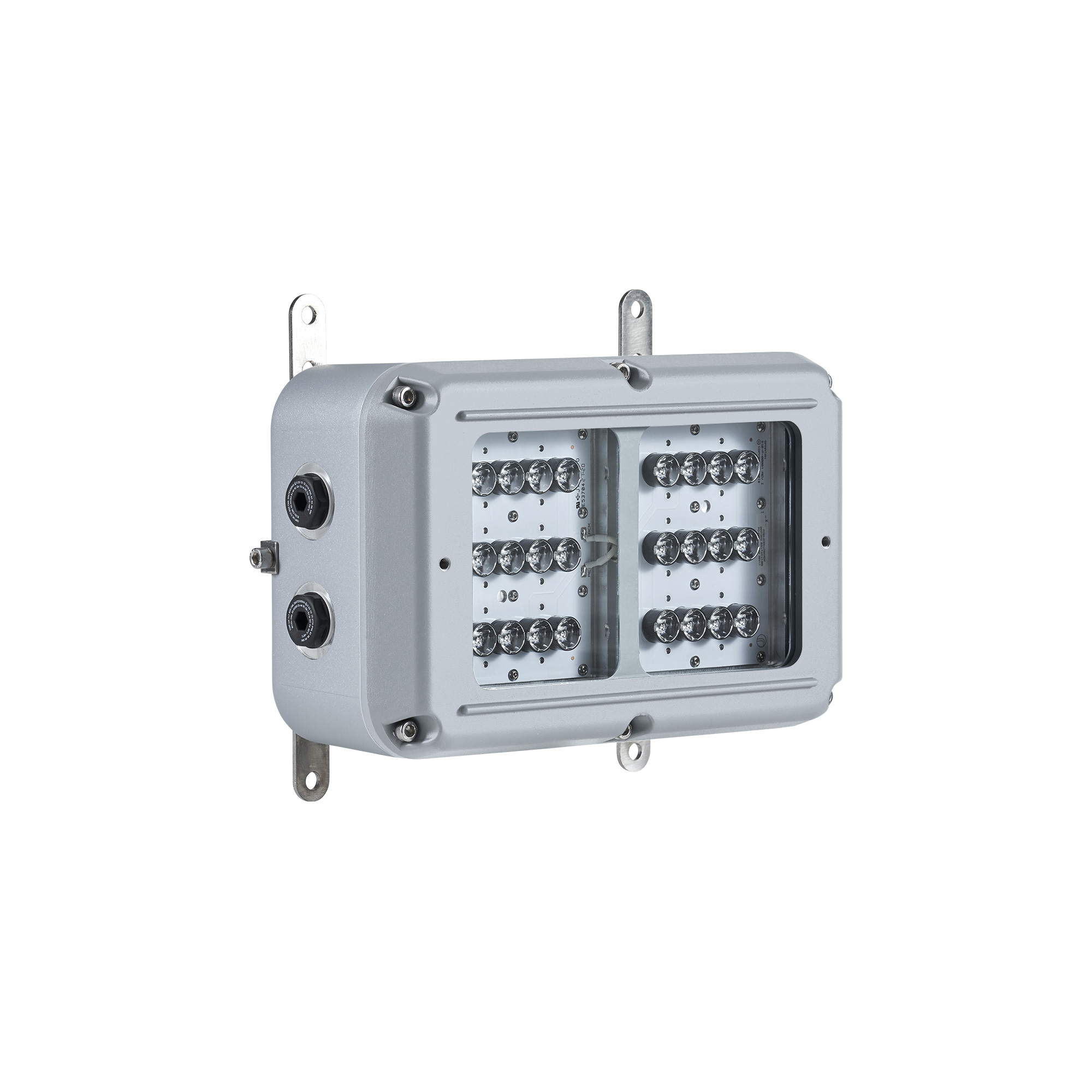

SPARTAN Bulkhead

SPARTAN Bulkhead by Raytec | Linear Bulkhead Light Zone 2 – standard or emergency variant lights with lumen output of up to 2,750 delivered lumens. SPARTAN bulkhead lights are globally certified for all Zone 1, Zone 2 and Industrial lighting applications.
LED

LED bulkhead lights provide high performance, high specification, hazardous area lighting delivering world class leading performance and reliability and compliance with international classifications including ATEX and IEC Ex.

Zone 2/22 ATEX and IEC Ex LED Bulkhead luminaire

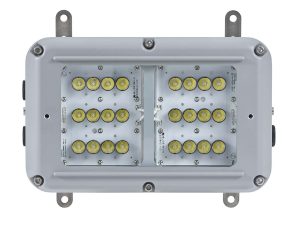

SPARTAN Zone 2/22 Bulkhead BL24
Circular Beam Pattern
SPZ-BL24-W-1010SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 10°x10° beam
SPXZBL24-W-1010-EMX25SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 10°x10° beam – Intelligent Emergency Variant
SPZ-BL24-W-3030SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 30°x30° beam
SPZ-BL24-W-3030-EMX25SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 30°x30° beam – Intelligent Emergency Variant
SPZ-BL24-W-5050SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 50°x50° beam
SPZ-BL24-W-5050-EMX25SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 50°x50° beam – Intelligent Emergency Variant
SPZ-BL24-W-120120SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 120°x120° beam
SPZ-BL24-W-120120-EMX25SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 120°x120° beam – Intelligent Emergency Variant
Elliptical Beam Pattern
SPZ-BL24-W-3510SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 35°x10° beam
SPZ-BL24-W-3510-EMX25SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 35°x10° beam – Intelligent Emergency Variant
SPZ-BL24-W-6025SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 60°x25° beam
SPZ-BL24-W-6025-EMX25SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 60°x25° beam – Intelligent Emergency Variant
SPZ-BL24-W-8030SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 80°x30° beam
SPZ-BL24-W-8030-EMX25SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 80°x30° beam – Intelligent Emergency Variant
SPZ-BL24-W-12050SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 120°x50° beam
SPZ-BL24-W-12050-EMX25SPARTAN Bulkhead 24 LED, Zone 2/22, White-Light 120°x50° beam – Intelligent Emergency Variant
ATEX Lighting Floodlights Zone 1 Zone 2 Hazardous Area

Lighting Design Service for Hazardous Areas

Spartan Flood, The LED Zone 2 Bulkhead Light

Design

Thorne & Derrick, the hazardous area lighting specialists, can provide a Zone 2 lighting scheme utilising LED Bulkhead Light tailored to specific application requirements – 2D or 3D lighting designs provide visual representation of the site. The lighting design service will provide recommendations on the product type and number of lights required including the average, maximum and minimum light levels that can be achieved in accordance with ATEX and IEC Ex compliance.

Zone 1 Bulkhead Light ATEX





SPARTAN Bulkhead Lights are designed for Zone 2 hazardous area environments which require high performance, high reliability and brilliant White-Light illumination.

The Bulkhead Lights have been designed by Raytec to light up large and open areas and is supplied with an integral dedicated bracket allowing the beam angle of light to be tilted and easily targeted into the required space.

Raytec’s field-proven, long-life LED technology SPARTAN light fittings are ATEX and IEC Ex approved for all Zone 2 hazardous area lighting applications – watch the video to learn how high lumen output is provided by the latest high performance LED technology delivering low running costs and low energy consumption.

♦ See also Zone 1 Bulkhead Light and our complete range of ATEX Lighting.
