SPX-MPBY5K | ATEX Bay Light Zone 1 (Mid Power) | 5,000 Lumens

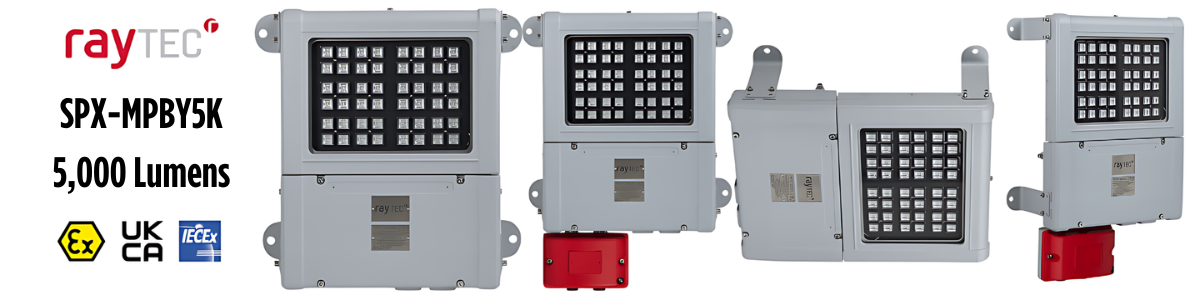

Raytec SPX-MPBY5K

ATEX Bay Light Zone 1 & Zone 21 5,000 Lumens

Zone 1 Light Fittings ATEX, UKEX & IEC Ex Rated for Gas & Dust Explosive Atmospheres

SPARTAN range of ATEX Bay Lights form part of the Hazardous Area Lighting range manufactured by Raytec and are designed for new hazardous area installations or to retrofit existing fluorescent installations which require high performance, high reliability and white-light illumination in potentially explosive atmospheres.

Using Raytec’s field-proven, long-life LED technology the SPX-MPBY5K is globally certified for all Zone 1 applications.

Now available in NEW Intelligent Emergency variants combining advanced technology with a relentless commitment to safety, providing unparalleled reliability and illumination in even the most demanding hazardous environments. Available in 90-minute and 180-minute duration variants, as a standard (other options available).

SPARTAN Mid Power Flood SPX-MPBY5K features a unique modular design, where key components are easily accessible for straightforward maintenance and inspection.

The ATEX bay light is available with a range of beam patterns (30°x30°or60°x60°or90°x90°) to effectively illuminate large open areas . The use of secondary optics means no loss of output on wider angles.

Hazardous Area Rating: Zone 1 – Gas & Dust

Zone 1 Gas

II 2 G D
Ex eb mb IIC T4 Gb
Ta= -40°C to+60°C

Zone 21 Dust

Ex tb IIIC T90°C Db
Ta= -40°C to+60°C

CoolXtrude™ thermal management technology ensures a lifetime of 10 years+ while providing a high lumen output of up to 4, 792 delivered lumens.

All SPARTAN luminaires including the Mid Power Bay come with an industry leading 5 year warranty.

Zone 1 Bay light Key Features

• Raytec Part Number – SPX-MPBY5K
• ATEX and IEC Ex approved – Zone 1 (Gas) & Zone 21 (Dust)
• UKCA approved
• Ultra Long Life LED
• High Lumen Output LED
• Easy Installation and Maintenance
• Extreme Durability and Toughness
• Wide Operating Temp -40° to +60°
• Zone 2 Variants Available
• 5 Year Warranty
• UK Designed and Manufactured

---

MPBY Standard & Emergency Product Specifications

>

Technical Specification

Certification:	ATEX, UKCA and IEC Ex rated for Zone 1 and 21 Gas and Dust
Angles:	30°, 60° and 90° circular
Input:	Mains Voltage 110-277V 50/60 Hz AC Only
Beam Angle System:	Fixed
Consumption:	40W
LED Type:	PLATINUM Elite SMT LEDs
Number of LEDs:	24
Power Output:	Up to 4,792lm
Wavelength:	White-Light (5,700K)
IP Rating:	IP66 and IP67
Temperature Range:	-40° to +60°

ATEX Mid Power Bay light Zone 1 | SPX-MPBY5K

Product Codes

SPARTAN BAY Zone 1/21 Mid Power Bay SPX-MPBY5K
SPX-MPBY5K-W-3030	SPARTAN BAY Zone 1/21 LED White Light Mid Power Bay	Beam patterns 30°x30°
SPX-MPBY5K-W-3030-EMX90	SPARTAN BAY Zone 1/21 LED White Light Mid Power Bay (Intelligent Emergency 90mins)	Beam patterns 30°x30°
SPX-MPBY5K-W-3030-EMX180	SPARTAN BAY Zone 1/21 LED White Light Mid Power Bay (Intelligent Emergency 180mins)	Beam patterns 30°x30°
SPX-MPBY5K-W-6060	SPARTAN BAY Zone 1/21 LED White Light Mid Power Bay	Beam patterns 60°x60°
SPX-MPBY5K-W-6060-EMX90	SPARTAN BAY Zone 1/21 LED White Light Mid Power Bay (Intelligent Emergency 90mins)	Beam patterns 60°x60°
SPX-MPBY5K-W-6060-EMX180	SPARTAN BAY Zone 1/21 LED White Light Mid Power Bay (Intelligent Emergency 180mins)	Beam patterns 60°x60°
SPX-MPBY5K-W-9090	SPARTAN BAY Zone 1/21 LED White Light Mid Power Bay	Beam patterns 90°x90°
SPX-MPBY5K-W-9090-EMX90	SPARTAN BAY Zone 1/21 LED White Light Mid Power Bay (Intelligent Emergency 90mins)	Beam patterns 90°x90°
SPX-MPBY5K-W-9090-EMX180	SPARTAN BAY Zone 1/21 LED White Light Mid Power Bay (Intelligent Emergency 180mins)	Beam patterns 90°x90°
