SPZ-BL24-HO | ATEX Floodlight | Zone 2 High Output Floodlight Hazardous Area

ATEX Flood Light Zone 2 Linear Flood Light Hazardous Area SPZ-BL24-HO

ATEX FLOOD LIGHT

Raytec SPZ-BL24-HO | Floodlight Zone 1 & Zone 21 4,650 Lumens

Zone 2 Flood Lights ATEX, UKEX & IEC Ex Rated for Gas & Dust Explosive Atmospheres

SPARTAN Flood Light High Output range of Zone 2 floodlights form part of the ATEX Lighting range manufactured by Raytec and are designed for illuminating smaller areas which require high performance, high reliability and white-light illumination in potentially explosive atmospheres. Supplied complete with an adjustable stirrup bracket which allows full rotation so the ideal configuration can be achieved.

The hazardous area lighting has thermal management technology ensures a lifetime of 10 years+ while providing a lumen output of up to 4,650 delivered lumens. All SPARTAN luminaires come with an industry leading 5 year warranty.

Hazardous Area Rating: Zone 2 – Gas & Dust

Zone 2 Gas

II 3 GD
Ex ec mc op is IIC T4 Gc
Ta= -50°C to +55°C (-20°C to +46°C for emergency variants)

Hazardous Area T Rating – T4

Zone 22 Dust

Ex tb IIIC T82°C Db
IP66 & IP67 – Ta -50°C to +55°C (-20°C to +46°C emergency variants)

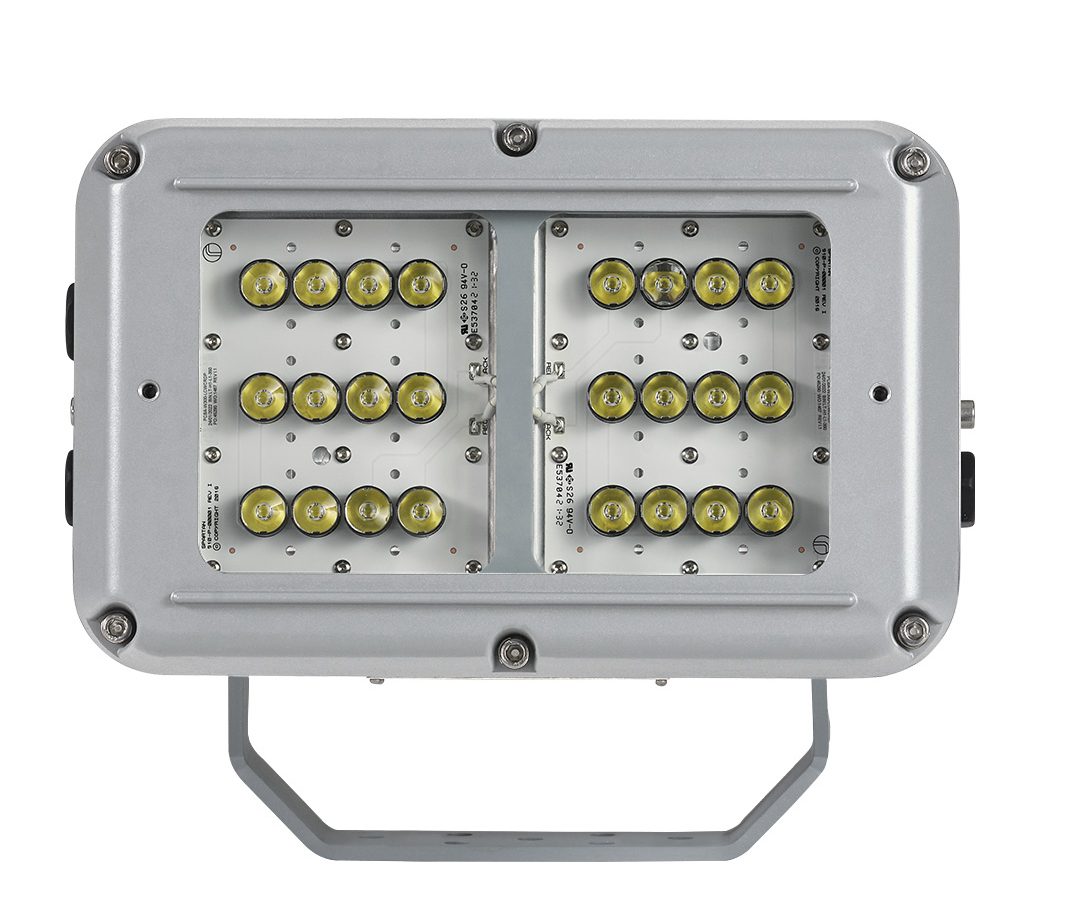

SPARTAN Flood SPZ-BL24-HO

ZONE 2 FloodLIGHTS

FEATURES & BENEFITS

ATEX FloodLight

Raytec Part Number – SPX-BL24-HO
ATEX & IEC Ex approved – Zone 2
UKCA approved
Ultra Long Life LED
High Lumen Output LED
Compact, Low Profile Design
Easy Installation and Maintenance
Emergency Variants
Wide Operating Temp -50° to +55°
VARIO Lens Technology – easy modification of beam patterns
Zone 1 Variants available
5 Year Warranty
UK Designed and Manufactured

Flood BL24 is designed from marine grade aluminium with stainless steel bracketry and fastenings to ensure it can withstand the most extreme environments. Raytec are specialists in LED and SPARTAN Flood has been specifically designed around the LEDs with a bespoke housing for optimum performance and reliability.

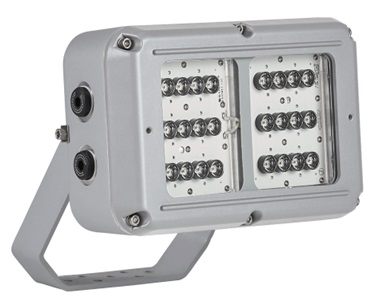

BL24 Bulkhead Stirrup Bracket Mount

Flood BL24 – Product Dimensions

Raytec SPARTAN FLOOD Light

Technical Specification

Certification:	ATEX and IEC Ex rated for Zone 2 and 22 Gas and Dust. UKCA approved.
Beam Angles:	10°x 10° or 30°x 30° or 50°x 50° or 80°x 80° or 120°x 120° (10 x 10 option can be upgraded to Vario Technology)
Input:	110-254V 50/60Hz AC only Low voltage: 18-48V AC and 18-69V DC Extra low voltage: 12V AC/DC
Beam Shape:	Elliptical or Circular
Lumen Output:	4,650 lm – circular beam patterns 4,100 lm – elliptical beam patterns (VARIO)
Beam Angle System:	VARIO interchangeable lens system (elliptical) / Fixed (circular)
Consumption:	34W
LED Type:	Platinum SMT LEDs
Number of LEDs:	24
Wavelength:	White-Light (6,500K+)
IP Rating:	IP66 and IP67
Temperature Range:	-50°C to +55°C

Zone 2 FloodLights Product Codes

Circular Beam Pattern

SPZ-BL24-W-1010-CID2-SB30	SPARTAN Bulkhead 24 LED, CID2, White-Light 10°x10° beam Stirrup Bracket Mount
SPZ-BL24-W-1010-EMX25-CID2-SB30	SPARTAN Bulkhead 24 LED, CID2, White-Light 10°x10° beam Stirrup Bracket Mount, Intelligent Emergency Variant (25% Output)
SPZ-BL24-W-3030-CID2-SB30	SPARTAN Bulkhead 24 LED, CID2, White-Light 30°x30° beam Stirrup Bracket Mount
SPZ-BL24-W-3030-EMX25-CID2-SB30	SPARTAN Bulkhead 24 LED, CID2, White-Light 30°x30° beam Stirrup Bracket Mount, Intelligent Emergency Variant (25% Output)
SPZ-BL24-W-5050-CID2-SB30	SPARTAN Bulkhead 24 LED, CID2, White-Light 50°x50° beam Stirrup Bracket Mount
SPZ-BL24-W-5050-EMX25-CID2-SB30	SPARTAN Bulkhead 24 LED, CID2, White-Light 50°x50° beam Stirrup Bracket Mount, Intelligent Emergency Variant (25% Output)
SPZ-BL24-W-8080-CID2-SB30	SPARTAN Bulkhead 24 LED, CID2, White-Light 80°x80° beam Stirrup Bracket Mount
SPZ-BL24-W-8080-EMX25-CID2-SB30	SPARTAN Bulkhead 24 LED, CID2, White-Light 80°x80° beam Stirrup Bracket Mount, Intelligent Emergency Variant (25% Output)
SPZ-BL24-W-120120-CID2-SB30	SPARTAN Bulkhead 24 LED, CID2, White-Light 120°x120° beam Stirrup Bracket Mount
SPZ-BL24-W-120120-EMX25-CID2-SB30	SPARTAN Bulkhead 24 LED, CID2, White-Light 120°x120° beam Stirrup Bracket Mount, Intelligent Emergency Variant (25% Output)

Elliptical Beam Pattern

SPZ-BL24-W-3510-CID2-SB30	SPARTAN Bulkhead 24 LED, CID2, White-Light 35°x10° beam Stirrup Bracket Mount
SPZ-BL24-W-3510-EMX25-CID2-SB30	SPARTAN Bulkhead 24 LED, CID2, White-Light 35°x10° beam Stirrup Bracket Mount, Intelligent Emergency Variant (25% Output)
SPZ-BL24-W-6025-CID2-SB30	SPARTAN Bulkhead 24 LED, CID2, White-Light 60°x25° beam Stirrup Bracket Mount
SPZ-BL24-W-6025-EMX25-CID2-SB30	SPARTAN Bulkhead 24 LED, CID2, White-Light 60°x25° beam Stirrup Bracket Mount, Intelligent Emergency Variant (25% Output)
SPZ-BL24-W-8030-CID2-SB30	SPARTAN Bulkhead 24 LED, CID2, White-Light 80°x30° beam Stirrup Bracket Mount
SPZ-BL24-W-8030-EMX25-CID2-SB30	SPARTAN Bulkhead 24 LED, CID2, White-Light 80°x30° beam Stirrup Bracket Mount, Intelligent Emergency Variant (25% Output)
SPZ-BL24-W-12050-CID2-SB30	SPARTAN Bulkhead 24 LED, CID2, White-Light 120°x50° beam Stirrup Bracket Mount
SPZ-BL24-W-12050-EMX25-CID2-SB30	SPARTAN Bulkhead 24 LED, CID2, White-Light 120°x50° beam Stirrup Bracket Mount, Intelligent Emergency Variant (25% Output)

Intelligent Emergency variant available, add -EMX25 to the above codes
18-69V variants available, add -LV to the above codes
12V variants available, add -ELV to the above codes
For options fitted with photocell add ‘-PC’ to the above codes
Contact T&D for T5 variants

ATEX Lighting Hazardous Area Lighting Zone 1 Zone 2 ATEX

ATEX Lighting manufactured by Raytec for use in Zone 1 and Zone 2 hazardous areas – this includes floodlights, linear light fittings, bulkheads and high bay lighting for explosion protection concepts including Ex d Flameproof and Ex e Explosion Proof applications.
