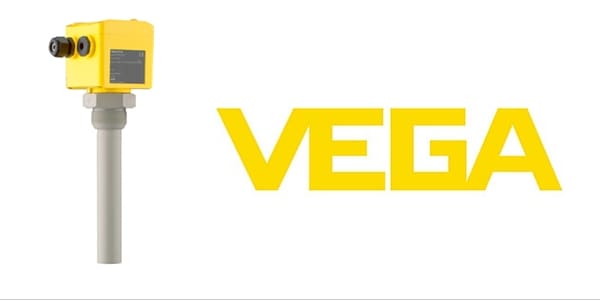

VEGA VEGACAP 98 Capacitive Level Switch
VEGA Level Switch
Level Switch VEGA VEGACAP 98
VEGA VEGACAP 98 capacitive level switch provides level measurement for liquids and bulk solids in applications such as overfill and dry protection system in adhesive or conductive products.
VEGACAP 98Â level switch works in products from a dielectric constant of 1.5 and has an exact switching point even with strong buildup.
The proven mechanical construction ensures a long life span and minimum maintenance requirements.
The VEGACAP 98 has a process fitting of G1½ thread.
VEGA VEGACAP 98 Capacitive Level Switch
Product Specifications
| Measuring Range – Distance | Process Pressure | Process Temperature | Level Switch Protection Rating | Ambient Temperature |
| 2 m | 0 – 0 bar | -40 – 80°C | IP66/IP67 | -40 to 80 °C |
VEGA LEVEL SWitch – VEGACap 98 FEATURES
FunctioN
The two electrodes of the capacitor are formed from the sensor and vessel. Â A capacitance change caused by a level change is evaluated by the integrated electronics and converted into a switching signal. The capacitive measuring principle doesn’t have any specific requirements with regards to installation and mounting.
Materials
The wetted parts of the instrument are made of stainless steel and the probe insulation of PTFE.
Housings
The level switch housings are available in plastic or aluminium. They are available with protection ratings up to IP 67.
ELECTRONICS
VEGA switches are available in different electronics versions. This level switch is available with a relay output (DPDT).
 SIGNAL OUTPUT
- Relay (DPDT)
VEGA LEVEL SWITCHES – VEGACAP
VEGACAP level switches provide level measurement for bulk solids and liquids as the sensor and vessel form the two electrodes of a capacitor. In capacitive limit level measurement any capacitance change as a result of a change in level is converted into a switching signal. The shortenable cable and rod options makes the level switches suitable for almost any application such as overfill/dry run protection and oil/water or foam detection. VEGA is a global manufacturer of process and hazardous area instrumentation.
Thorne & Derrick provide Process Measurement and Instrumentation systems for level measurement, flow measurement, temperature measurement and pressure measurement.
Thorne & Derrick can provide expert technical advice, specification guidance and competitive quotations for VEGA sensors from stock. Contact us for support on industrial and hazardous area flow measurement.
VEGA Level Switches : Measurement of level, point level, pressure, flow and density
Thorne & Derrick provide Process Measurement and Instrumentation systems for level measurement, flow measurement, temperature measurement and pressure measurement.
VEGA Level Switch – VEGACAP 98 Capacitive Level Switch – Specification
