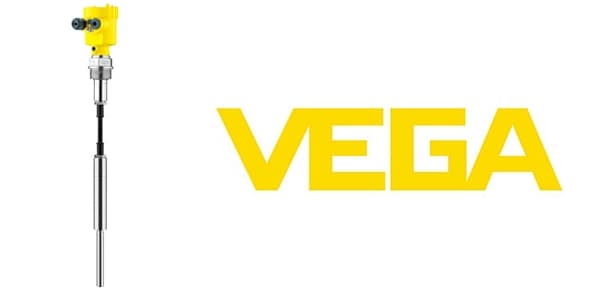

VEGA VEGAVIB 62 Vibrating Level Switch
VEGA Level Switches
Level Switch VEGA VEGAVIB 62
VEGA VEGAVIB 62 is a vibrating level switch designed for use with granular and coarse-grained bulk solids, reliably and accurately the minimum or maximum level.
The VEGAVIB 62 has a smooth surface without corners and edges which avoids jamming of the bulk solid and allowing for it to be easily cleaned. The position of the switching point is specified flexibly through the length of the suspension cable.
VEGA VEGAVIB 62 Vibrating LEVELÂ Switch
PRODUCT SPECIFICATIONS
| Measuring Range – Distance | Process Temperature | Process Pressure | Level Sensor Protection Rating | Ambient Temperature | Hazardous Area ATEX
Level Switch |
| 80m | -40 – 150°C | -1 … 6 bar | IP66/IP68 (0.2 bar) IP66/IP67 IP66/IP68 (1 bar) |
-40 to 80 °C |  Yes, VEGA VEGAVIB 62 is suitable for hazardous areas
(see ATEX download). |
VEGAVIB 62 LEVEL SWITCH HAZARDOUS AREA CERTIFICATIONS
VEGAVIB 62 vibrating level switch is available with hazardous area certifications to meet ATEX & IECEx directives for Zone 1 and Zone 2 installations.
ATEX & IECEX APPROVALS
ATEX II 1G, 1/2G, 2G Ex ia IIC T6
ATEX II 1G, 1/2G, 2G Ex ia IIC T6 + 1D, 1/2D, 2D Ex tD IP66 T*
IEC Ex ia IIC T6
ATEX II 1D, 1/2D, 2D Ex tD IP66 T*
IEC Ex tD A20/21 IP66 T*, A21
VEGA level switches are suitable for use in hazardous areas and their instruments also have various ship approvals such as e.g. DNV, GL, LRS or ABS.
VEGA LEVEL Switch – VEGAVIB 62 FEATURES
Function
The vibrating rod of VEGAVIB 62 is energized by a piezo drive to vibrate at its resonance frequency. If the medium covers the vibrating rod, the amplitude is damped.
The electronics detects this change and converts it into a switching command. A reliable function in granulated bulk solids is ensured by the ideal rod design.
MATERIALs
Wetted Parts: Stainless steel 316L
Seal Material: Klingersil C-4400
Suspension Cable: PUR or FEP
Housing Versions
Available in plastic, stainless steel or Aluminium IP67.
ELECTRONICS VERSIONS
- Relay (DPDT)
- Contactless electronic switch
- Transistor (NPN/PNP)
- Two-wire
- NAMUR
APPROVALS
- ATEX
- IEC
- FM
- CSA
- GOST
- SIL2
VEGA Level Measurement Instruments & Sensors include capacitive, hydrostatic, guided wave radar and ultrasonic sensors for the measurement of bulk liquids, solids and powders in safe, industrial and hazardous area industries.
Thorne & Derrick provide Process Measurement and Instrumentation systems for level measurement, flow measurement, temperature measurement and pressure measurement.
T&D provide expert technical advice, specification guidance and competitive quotations for VEGA sensors from stock. Contact us for support on industrial and hazardous area flow measurement.
VEGA Level Sensors : Measurement of level, point level, pressure, flow and density.
âž¡ Did you know? T&D are Main Distributors for Micronics Flow Meters.
VEGA Level Switch – VEGAVIB 62 Vibrating Level Switch – ATEX Certificate
Download
