***THIS PRODUCT HAS BEEN DISCONTINUED. The follow up product is Ecom Pad-Ex P8 DZ2***

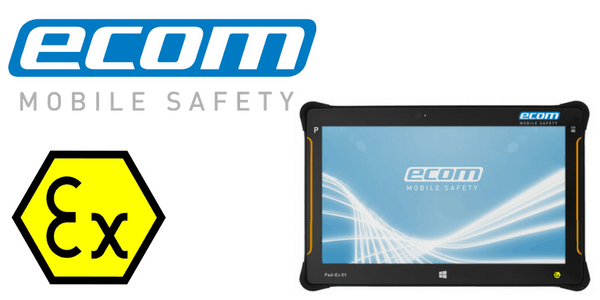

ECOM Pad-EX 01 Z2 Windows Tablet
Zone 2
Hazardous Area Locations
- ATEX Certification
- II 3 G Ex ic IIC T4 Gc IP64
- II 3 D Ex ic IIIB T135°C Dc IP64

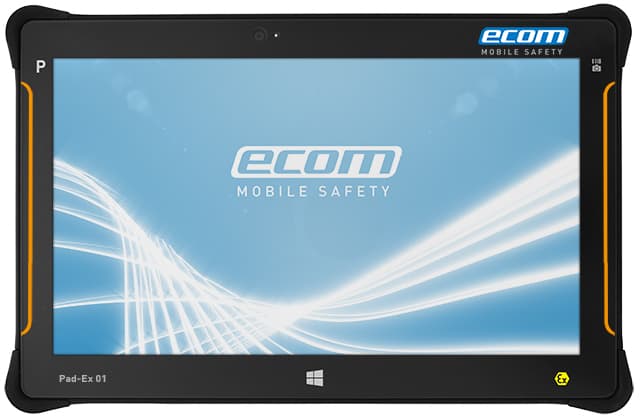

Ecom Pad-Ex 01 Z2 is a tablet which is ATEX certified for use within Zone 2 hazardous areas.
The Ecom Pad-Ex 01 Z2 is ultra compact and is protected against dust and water ingress and is certified IP65, 4 feet drop and MIL-STD 81 OG for vibration. With its additional display protection it offers complete protection against the harsh environment field workers face and minimises burden on their bodies during long hours of work.
As private 4G / LTE wireless connectivity is increasingly adopted within hazardous areas, Pad-Ex 01 ensures access is fast and seamless enabling users to quickly access the information needed to perform the task at hand.
For sites without WiFi or 4G access in the field, Ecom Pad-Ex 01 Windows tablet provides up to 256GB of SSD memory to meet your on-board data storage needs, backed by an i5, or optional i7 processor to ensure your applications run as smoothly and efficiently as possible.
ATEXÂ Tablet
Ecom Pad-EX 01 Z2 Key Features
- High Speed and Efficiency for the Most Demanding Tasks
- Service Level Agreement
- Custom Software Load
- 11.6“ widescreen display with sunlight readable solution
- Sunlight Readable Display (Brightness: 730 nits)
- Capacitive Multi-Touch Screen
- Integrated options for various Applications
- Data Collection
- 1D / 2D Barcode Scanner (optional)
- 5MP Auto Focus Camera with LED Flash Light
ATEXÂ Tablet
- Windows 7 / 8 / 10
- 4th Generation Intel® Core™ Processor
- Bluetooth 4.0 Class 1
- Support 4G LTE
- Support GPS / Augmented Reality
- Intel Wireless AC7260 802.11 a/b/g/n/ac
ATEX Tablet – Ecom Pad-Ex 01 Z2 Tablet (Windows)
ATEX Tablet ZONE 2 HAZARDOUS AREA
ECOM Pad-Ex 01 Z2 Tablet Technical Data
| IP65 Drop | MIL-STD 81O G 516.6 Procedure IV 6 drops from 4 feet height to plywood over concrete |
| Vibration | MIL-STD 810G 514.6 Procedure I Cat. 24, Fig. 514.6E-1 |
| Environment Temperature | Operating: -10°C – 55°C (14°F – 131°F) |
| Humidity | Operating: 5% – 95% |
| Altitude | Operating: 15,000 feet |
| Operating System | Full Windows 7 Pro / Windows 8.1 Pro / Windows 10 64 Bit |
| CPU | Intel Haswell i5 series / i7 optional |
| Memory | One DDR3L socket for 4GB / 8GB |
| Storage | M2-SATA SSD 128GB / 256GB |
| Display | 11.6″ HD (1366 x 768) LCD Panel Capacitive Multi-Touch Optical Bonding Sunlight Readable LCD 730 nits Ambient Light Sensor |
| Sensor | Built-in G sensor, Gyroscope, and E-Compass |
| Audio | Speaker x1 / 70dB Microphone x1 |
| Camera | 2MP Front Facing Camera 5MP Rear Camera with auto focus and 1500mcd LED flashlight support Geo Tagging (Optional) |
| Communication | 4G LTE (Optional) GPS (Optional) Intel Wireless AC7260 802.11 a/b/g/n/ac Bluetooth 4.0 Class 1 |
| Data Collection | 1D / 2D Barcode Scanner (Optional) |
| VO Plots | Two USB 3.0 One Headphone out / Mic-in jack One Docking Connector One Expansion Connector for Expansion Modules Two RF pass-through connectors for WWAN & GPS |
| Expansion Slots | One Micro SD Card slot support SDHC & SDXC One SIM Card |
| Button | Power Volume Windows Touch button Barcode / Camera Touch Button Programmable Touch Button |
| Battery | One 4130 mAh Li-Polymer battery pack: 7hrs 7800 mAh (optional) |
| AC Adaptor | 19V, 3.42A; 65W |
| Dimension | 298.5mm x 192mm x 20mm (11.75″ x 7.55″ x 0.78″) |
| Weight | 1.2 Kg (~42.32 oz) |
| Hazardous Area Certifications | |
| ATEX | II 3 G, Ex ic IIC T4 Gc IP64, II 3 D Ex ic IIIB T1135ºC Dc IP64 |
| IECEx | II 3 G, Ex ic IIC T4 Gc IP64, II 3 D Ex ic IIIB T1135ºC Dc IP64 |
ATEX Tablet – Ecom Pad-Ex 01 Z2 Tablet (Windows) Dimensions
Hazardous Area INTERNATIONAL Certifications
Ecom Pad-Ex 01 Z2 tablet is ATEX certified to most international hazardous area certification bodies:
ATEX (Europe)
- II 3 G, Ex ic IIC T4 Gc IP64,
- II 3 D Ex ic IIIB T1135ºC Dc IP64
IECEX (INTERNATIONAL)
- II 3 G, Ex ic IIC T4 Gc IP64,
- II 3 D Ex ic IIIB T1135ºC Dc IP64
T&D are Main Distributors for the complete range of Ecom Hazardous Area Mobile Communications & Computers – this includes mobile smartphones, tablets and handheld computers.
