Wolflite ATEX Handlamps | Increased Light Output
Published 11 Feb 2022

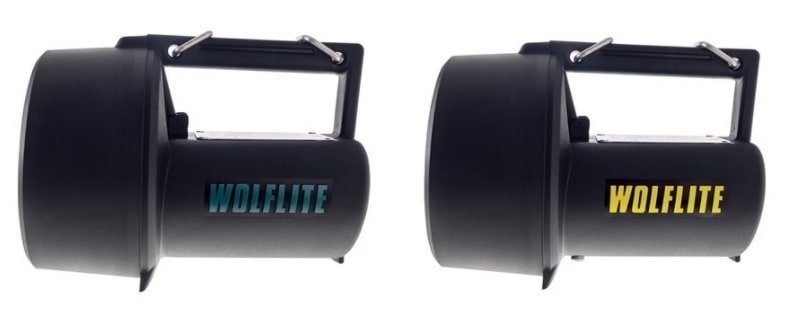

Wolflite ATEX Handlamps
WOLFLITE ATEX HANDLAMPS
H-4DCALED & H-251ALED
A major upgrade for two of Wolf Safety’s most popular and enduring ATEX handlamps has generated dramatic increases in light output from both the H-4DCA and the H-251ALED handlamps.
Wolflite H-4DCALED & H-251ALED ATEX handlamps have both been CE marked in compliance with the 2014/34/ EU explosive atmospheres ATEX directive and UKCA marked in compliance with UKSI 2016/1107 UKEX Statutory Instrument, for use in a wide range of potentially explosive gases, vapours, mists and dusts.
Widely used within hazardous areas, especially in the marine, fire and rescue and general industrial sectors, these Wolf lanterns have been a popular choice for almost two decades.
Switching from bulb to high power LED has enabled the H-4DCA (now the H-4DCALED) to benefit from a 7 fold boost in light output, from 37 lumens to 269 lumens at source. In addition, the lamp’s battery duration will more than double from 20 hours to up to 45 hours of sustained service.
A greatly improved LED module provides a dramatic increase in light output performance from the Wolflite H-251ALED rechargeable handlamp, almost doubling from 107 lumens to 210 lumens (both figures at source).
Retrofit kits will be available for both handlamps, enabling new LED modules to be fitted to existing lamps to achieve the same outstanding performance.
Miles Jackson, Wolf’s Sales and Marketing Director: “The development of advanced LED technology has enabled our design and production team to raise the performance of these popular handlamps to a new level, setting standards that will delight our customers.”

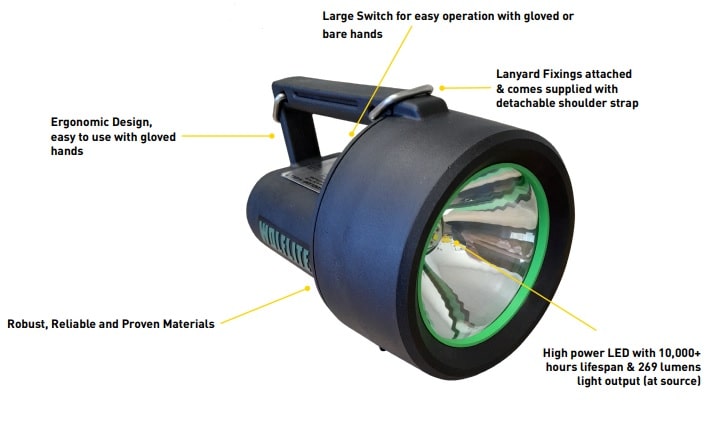

WOLFLITE H-4DCALED ATEX HANDLAMPS
The H-4DCALED primary cell powered LED safety handlamp has an intense spot beam measuring approximately 4°, ideal for inspection worktasks.
LIGHT OUTPUT/DURATION/POWER
- New long life LED light source with 269 lumens measured at source
- Alkaline cell approval giving up to 45 hour duration
CERTIFICATION
- Certified for ATEX, IECEx & UKEX. Zones 1, 2, 21 and 22
- CE and UKCA marked
- Lloyd’s Register Type Approved
- -10°C to +40°C temperature ambient
- T4 temperature class
- IP66 ingress protection
FEATURES
- LED light source gives increased light output and battery duration
- Robust anti-static thermoplastic lamp enclosure
- Supplied with detachable shoulder strap

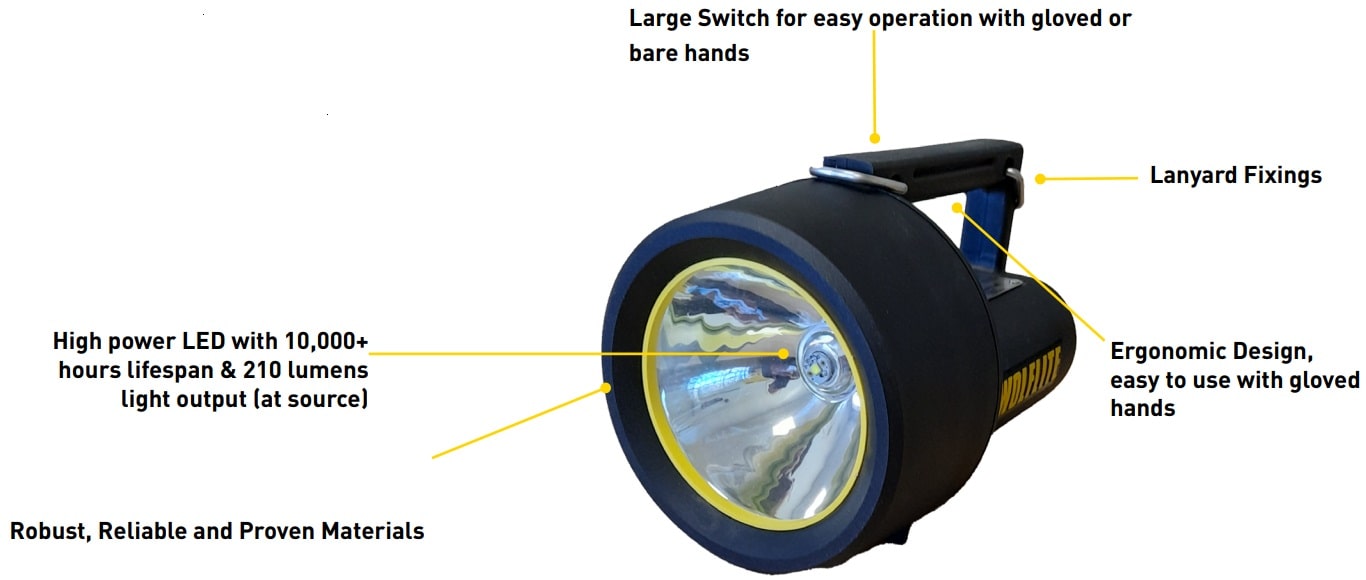

WOLFLITE H-251ALED ATEX HANDLAMPS
The newly updated H-251ALED rechargeable LED safety handlamp has an intense spot beam, with a flood of lower level fringe light.
LIGHT OUTPUT/DURATION/POWER
- New long life LED light source with 210 lumens measured at source
- 18 hrs battery life from a single charge
CERTIFICATION
- Certified for ATEX, IECEx & UKEX. Zones 1, 2, 21 and 22
- CE and UKCA marked
- -10°C to +40°C temperature ambient
- T4 temperature class
- IP66 ingress protection
FEATURES
- LED light source gives increased light output and battery duration
- Emergency illumination function illuminates the handlamp if power to the charger fails, highlighting the escape route
- Deep discharge protection protects the battery for permanent damage
- Robust anti-static thermoplastic lamp enclosure
- For use with C-251HV/LV Chargers
- Suitable for cyclic and short term standby applications (for long term see Wolflite XT LED Rechargeable Handlamp and Rechargeable Torch)
