Hazardous Area Electric Heaters | EXHEAT MTH Flameproof Mini Tank Immersion Heaters

Published 25 May 2022

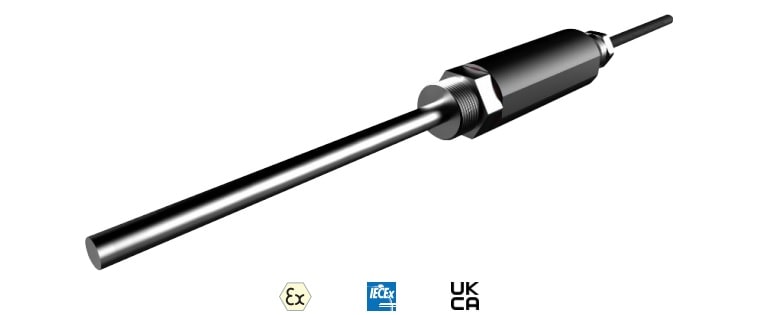

Miniature Tank Heater (MTH) | ATEX/IECEx/UKEX Certified

Miniature Tank Heater (MTH) | ATEX/IECEx/UKEX Certified

EXHEAT | Distributed from Stock | International Delivery | Competitive Prices | Contact Us Today


Flameproof Mini Tank Heaters

EXHEAT MTH

The MTH (Miniature Tank Heater) by EXHEAT is a smaller range of ‘plug and play’ immersion heaters providing a complete solution for the heating of liquids in a hazardous area where space is at a premium.

EXHEAT MTH mini tank hazardous area immersion heater provide certified heating for Zone 1 & Zone 2 (Flammable Gas) and Zone 21 & Zone 22 (Dust) hazardous areas and explosive atmospheres according to ATEX Directive.

Each EXHEAT MTH is designed with specific fittings for direct immersion while incorporating both process set-point control and over-temperature trip electronic circuitry – therefore it requires no additional control or safety components to operate.

The inclusion of bespoke electronic PCB allows for greater accuracy and lower hysteresis when controlling the process temperature, when compared with traditionally used mechanical temperature switches.

A compact, sleek Ex d anodised aluminium enclosure houses the electronics, this provides an ideal solution when space is limited.  Suitable for ambient temperatures as low as ≤40°C to ≤60°C. Designed for long term stability as well as the option for yearly calibration to ensure maximum accuracy.

➡ Available from UK stocks. Contact our technical sales team who can help to custom numerous options for all requirements.


EXHEAT MTH Flameproof Mini Tank Heater

EXHEAT MTH Flameproof Mini Tank Heater

EXHEAT is a globally renowned manufacturer of hazardous area electric process heating and control systems – Thorne & Derrick, Experts in Equipment for Explosive Atmospheres, are the largest stockist and supplier of EXHEAT heaters in the UK including ATEX, UKEx & IECEx certified electrical heating products.

TYPICAL APPLICATIONS

  • Boiler equipment
  • Cleaning and rinsing tanks
  • Crank casings
  • Frost protection
  • Gear boxes
  • Hot water storage tanks
  • Motor enclosures
  • Pump casings
  • Sumps
  • Tank bases
EXHEAT Miniature Tank Heater (MTH) - Dimensions & Features

EXHEAT Miniature Tank Heater (MTH) – Dimensions & Features

Flameproof Mini Tank Heaters – MTH Specification

Certifications ATEX/IECEx/UKEX
EX logo II 2 G D
Ex d IIC T6…T1 Gb
Ex tb IIIC T85°C….T450°C Db (IP66/68)SIL – Hardware assessed for use in SIL applications
Cable 3m standard – longer available on request
Element options 15mm elements 321 Stainless Steel as standard
Materials Body: Anodised aluminium 6082 T6
Boss: Stainless steel 316
Element: Stainless steel 316
Mounting Threaded 321 stainless steel boss suited to client requirements.
Available in a range of sizes in BSP, NPT and Metric fittings
Installation Horizontal installation
IP rated IP66
Mains input 230VAC (+/-10%) nominal voltage as standard, suitable to work between 220V-254V.
110-120V available on request.
Process fluid Suitable for most oil grades and water applications
Accuracy +/- 2°C
Ambient operating temperature ≤40°C to ≤60°C
Set point control -40°C to 75°C
Calibration temperature 20°C to 25°C

EXHEAT INDUSTRIAL LTD DISTRIBUTORS, STOCKISTS & SUPPLIERS

EXHEAT Logo

EXHEAT Industrial Ltd experience in producing heaters suitable for use within hazardous areas and their range of custom made heaters means EXHEAT and Thorne & Derrick can provide a heating solution for almost any situation. The range of process heaters and industrial heaters are manufactured in the UK. EXHEAT have over 20 years experience which guarantees the customer receives highest quality product.


Specialists to the Process & Hazardous Area Industries

EXPERTS IN EQUIPMENT FOR EXPLOSIVE ATMOSPHERES

Thorne & Derrick are leaders in the development and distribution of ATEX & IECEx Product Innovations that deliver significant improvements to clients plant, people and operational safety in the explosive atmosphere industries.

Your proactive problem solvers experienced in succession planning for the replacement of obsolete, non-conformant and legacy equipment in hazardous areas.

Your first-choice provider of innovative and competitive solutions to ensure ATEX & IECEx Compliance for Hazardous Area Electrical, HVAC & Process Instrumentation Equipment to UK and international projects.

Panels | Plugs | Isolators | Enclosures | Lighting | Control Stations | Motor Starters | Heat Trace | Gas Detection | Flame Detection | Process Instrumentation | Process Heating | Fans | Security Locking & Access Control | ATEX Enclosures
