Exd Flameproof Control Panels | Explosion Proof Electrical Equipment

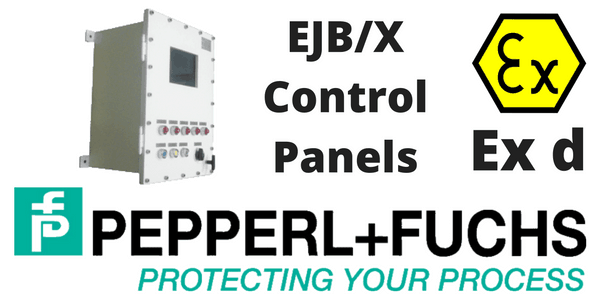

Pepperl Fuchs EJB/X range offers Ex d IIB+H2 certified ATEX control panels that can easily be configured for use with terminal boxes, control stations as well as control and distribution panels in hazardous area locations, including Zone 1/Zone 2 (gas) and Zone 21/Zone 22 (dust). The EJB/X control panels can be integrated with over 40 sizes of Ex d and Ex e tb certified flameproof enclosures.

Pepperl Fuchs EJB/X control panels are manufactured from copper-free aluminium with increased corrosion resistance or from high quality stainless steel. The high class manufacture of components and the range of sizes makes the EJB/X hazardous area control panels suitable for use in many industries including in offshore and marine applications.

Optional extras are available to meet the customers requirements including a choice of windows allows viewing of integrated monitoring functions and different electrical components can be integrated as per user specification. The ambient temperature of the EJB/X ranges from -50ºC to +60ºC and the weight ranges from 7.0kg to 320.0kg.

The enclosure series EJBX forms the optimal basis for the application-specific configuration of terminal boxes, control stations as well as control and distribution panels.

The enclosures manufactured by Pepperl+Fuchs are certified Ex d IIB+H2 and Ex tb as well as “explosion-proof”. The enclosures are available in many sizes, a wide range of operating elements and monitoring functions can be integrated. They are manufactured from high-quality stainless steel.

This durability as well as the flexible customization options cover the requirements of many industries including offshore and marine applications. A choice of windows allows viewing of integrated monitoring functions. Electrical components can be integrated as per customer specification.

Pepperl+Fuchs offers a broad portfolio of Explosion Proof Electrical Equipment & Solutions for installation and control of machinery and electrical networks in harsh environments and explosion-hazardous areas.

Control Panels

Exd Flameproof Control Panels in Aluminium or Stainless Steel

Exd Flameproof Control Panels in Aluminium or Stainless Steel

Hazardous Area

Ex d IIB Flameproof (ATEX)

Aluminium

Pepperl Fuchs EJB/X

Features

  • Enclosures manufactured from copper-free aluminum or AISI 316L stainless steel
  • Control panels suitable for operation in Zones 1, 2, 21 and 22 hazardous areas
  • Certified to Ex d IIB+H2 and Ex tb explosion protection
  • Various enclosure size and combination variants
  • Free configuration of cable entries and terminals for customized terminal boxes
  • Optional operators including:
  1. Pushbuttons
  2. LED indicators
  3. Emergency stop buttons
  4. Key-operated pushbuttons
  5. Control switches
  6. Potentiometers
  7. Ammeters
  • Customizable configuration of operating elements and cable gland types as per specification
  • Integration of electrical components and control elements as per customer specification
  • Thermo-resistant tempered glass window
  • Choice of viewing windows for monitoring instruments
  • Degree of protection IP66 / IP67

Control Panels Hazardous Area Ex d IIB Flameproof Aluminium

Pepperl Fuchs EJB/X

Technical Data

Control Panel Electrical Specification
Operating voltage660 V DC / 1000 V AC max
Operating current1600 A max
Control Panel Mechanical Specification
Cover fixing stainless steel hexagonal socket head cap screw
Protection degree IP66 (optional variants IP66/67 with O-ring)
Material
Enclosurescopper-free aluminum alloy or AISI 316L (1.4404) stainless steel
Finish aluminum: epoxy coated grey RAL7005 stainless steel: surface shot-peened
Seal none, optional O-ring for IP66/67
Weight see spec sheet
Grounding M6 external grounding stud, internal M5 or M6
Window thermo-resistant tempered glass
Ambient conditions
Ambient temperature see spec sheet
Data for application in connection with Ex hazardous areas
EC-Type Examination Certificate INERIS 14ATEX0022X (EJB20 / 20A in aluminum: INERIS 10ATEX0035X)
Group, category, type of protection, temperature class Ex II 2 GD temperature class Ex d IIB+H2 Gb (EJB20 / 20A in aluminum: Ex d IIB) Ex tb IIIC Db
International approvals
IECEx approval IECEx INE 14.0029X (for EJB20 / 20A in aluminum pending)
Conformity
Protection degree EN 60529
General information
Supplementary information EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable
Explosion Proof Control Panels for Explosive Atmospheres & Hazardous Areas | Ex d Flameproof with ATEX Certification

Explosion Proof Control Panels for Explosive Atmospheres & Hazardous Areas | Ex d Flameproof with ATEX Certification

Ex-Hexagon II 2 GD
Ex d IIB+H2 T* Gb
Ex tb IIIC T** °C Db
T6/T85 °C
T5/T100 °C
T4/T135 °C
T3/T200 °C

UL Approved Control Panels

Class I, Division 1, Groups B, C, D
Class II, Division 1, Groups E, F, G
NEMA Type 4, 4X, 7, 9

Control Panels Hazardous Area Ex d IIB Flameproof

HAZARDOUS AREA ATEX CERTIFICATION

ATEXII 2 GD

Ex d IIB+H2 Gb (EJB20 / 20A in aluminum: Ex d IIB)

Ex tb IIIC Db

Ex d Hazardous Area Control Panels

A flameproof Ex d control panel is explosion protected by an enclosure which prevents the ignition of potentially explosive gases in hazardous area Zones 1 and Zone 2. The explosion protection concept of Ex d is to prevent the propagation of an internal explosion to the surrounding explosive atmosphere, and protecting the internal components from the environment, humidity, dirt, dust or water.
