Control Panels Hazardous Area Ex d IIC Flameproof (ATEX) Aluminium – Pepperl Fuchs GUB/X

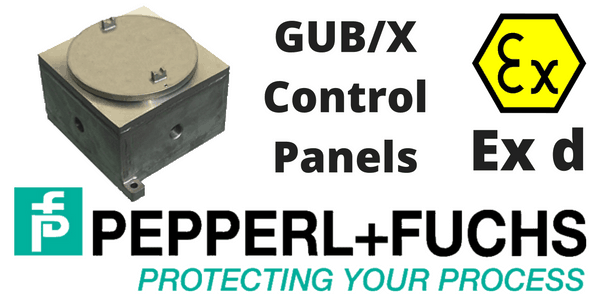

Hazardous Area Control Panels – Pepperl Fuchs GUB/X

Hazardous Area Control Panels – Pepperl Fuchs GUB/X

ATEX Control Panels

for Hazardous Areas

Exd Flameproof Control Panels | Explosion Proof Electrical Equipment

Pepperl Fuchs GUB/X range offers Ex d IIB+H2 certified ATEX control panels that can easily be configured for use with terminal boxes, control stations as well as control and distribution panels in hazardous area locations, including Zone 1/Zone 2 (gas) and Zone 21/Zone 22 (dust). The GUB/X control panels can be integrated with over 40 sizes of Ex d and Ex e tb certified flameproof enclosures.

Pepperl Fuchs GUB/X control panels are manufactured from copper-free aluminium with increased corrosion resistance or from high quality stainless steel. The high class manufacture of components and the range of sizes makes the GUB/X hazardous area control panels suitable for use in many industries including in offshore and marine applications.

Optional extras are available to meet the customers requirements including a choice of windows allows viewing of integrated monitoring functions and different electrical components can be integrated as per user specification.

Pepperl+Fuchs offers a broad portfolio of Explosion Proof Electrical Equipment & Solutions for installation and control of machinery and electrical networks in harsh environments and explosion-hazardous areas.

Control Panels

Hazardous Area

Ex d IIB Flameproof (ATEX)

Aluminium

Pepperl Fuchs GUB/X

Features

  • Enclosures manufactured AISI 316L stainless steel
  • Control panels suitable for operation in Zones 1, 2, 21 and 22 hazardous areas
  • Certified to Ex d IIB+H2 and Ex tb explosion protection
  • Various enclosure size and combination variants
  • Free configuration of cable entries and terminals for customized terminal boxes
  • Customizable configuration of operating elements and cable gland types as per specification
  • Integration of electrical components and control elements as per customer specification
  • Choice of viewing windows for monitoring instruments
  • Degree of protection IP66 / IP67

Control Panels Hazardous Area Ex d IIB Flameproof Aluminium

Pepperl Fuchs GUB/X

Technical Data

Control Panel Electrical Specification
Operating voltage660 V DC / 1000 V AC max
Operating current1600 A max
Control Panel Mechanical Specification
Cover fixing threaded cover
Protection degree IP66 (optional variants IP66/67 with O-ring)
Material
Enclosurescopper-free aluminum alloy or AISI 316L (1.4404) stainless steel
Finish aluminum: epoxy coated grey RAL7005 stainless steel: surface shot-peened
Seal none
Weight see spec sheet
Grounding M6 external grounding stud, internal M5 or M6
Window thermo-resistant tempered glass
Ambient conditions
Ambient temperature -50 °C … 60 °C (-58 °F … 140 °F) -20 °C … 60 °C (-4 °F … 140 °F) GUB*5* and GUBX*5*
Data for application in connection with Ex hazardous areas
EC-Type Examination Certificate INERIS 14ATEX0035X
Group, category, type of protection, temperature class Ex II 2 GD Ex d IIC T6, T5, T4, T3 Gb Ex tb IIIC T85 °C, T100 °C, T135 °C, T200 °C Db
International approvals
IECEx approval IECEx INE 14.0042X
Conformity
Protection degree EN 60529
General information
Supplementary information EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable
Explosion Proof Control Panels for Explosive Atmospheres & Hazardous Areas | Ex d Flameproof with ATEX Certification

Explosion Proof Control Panels for Explosive Atmospheres & Hazardous Areas | Ex d Flameproof with ATEX Certification

Ex-Hexagon II 2 GD
Ex db IIC T* Gb
Ex tb IIIC T** °C Db
T6/T85 °C
T5/T100 °C
T4/T135 °C
T3/T200 °C

Control Panels Hazardous Area Ex d IIB Flameproof

HAZARDOUS AREA ATEX CERTIFICATION

ATEXII 2 GD

Ex d IIC T6, T5, T4, T3 Gb

Ex tb IIIC T85 °C, T100 °C, T135 °C, T200 °C Db

Ex d Hazardous Area Control Panels

A flameproof Ex d control panel is explosion protected by an enclosure which prevents the ignition of potentially explosive gases in hazardous area Zones 1 and Zone 2. The explosion protection concept of Ex d is to prevent the propagation of an internal explosion to the surrounding explosive atmosphere, and protecting the internal components from the environment, humidity, dirt, dust or water.
