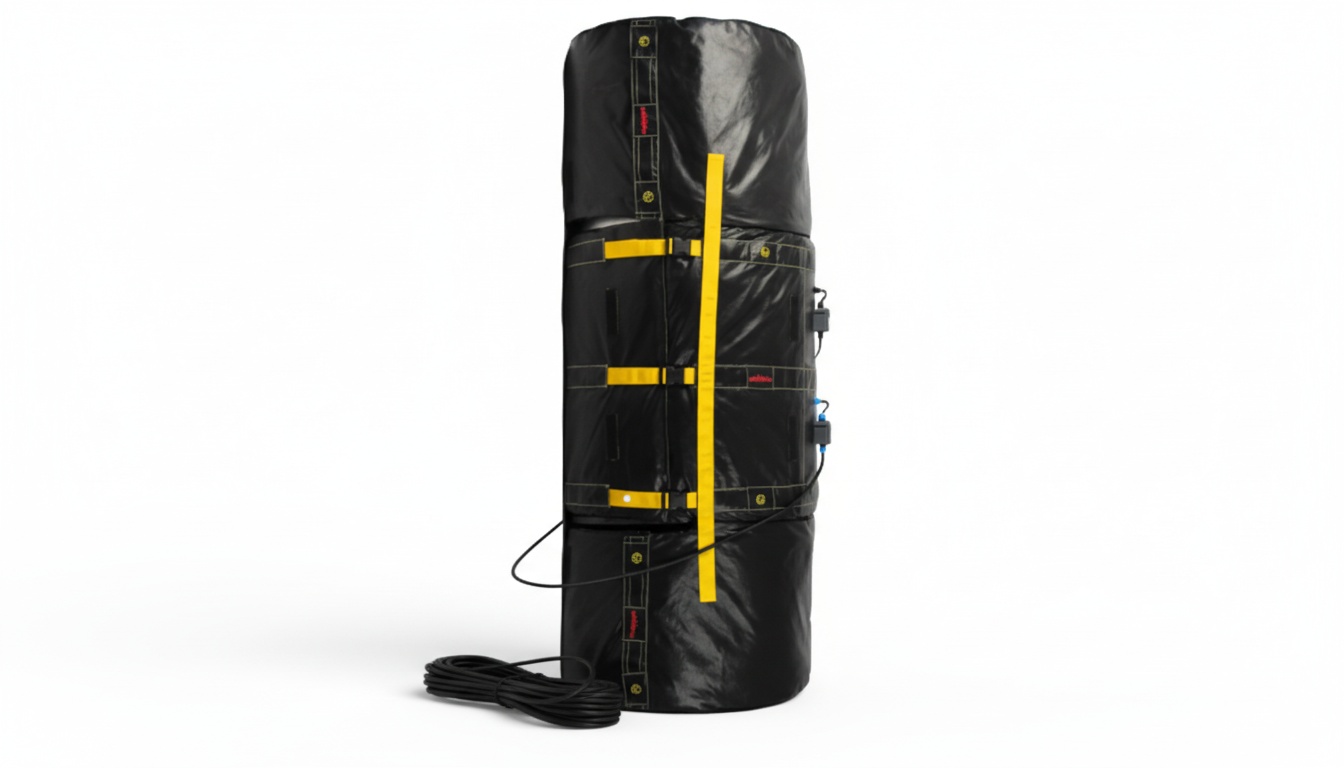

The WEXH series of ATEX heating jackets and mats are used for protection against frost, temperature maintenance and process heating in the temperature range from -40 °C to +200 °C. Heating jackets are used to provide frost protection, conserve heat and maintain plant process temperatures to prevent viscosity loss, coagulation, clogging or freezing.

Together with Winkler, Thorne & Derrick can offer a wide range of standard and bespoke heating solutions suitable for use in explosive atmospheres (zones 1/2 gas, 21/22 dust). The heating jackets can be designed and manufactured to fit virtually any size or shape e.g. vessels, drums, bottle cylinders, containers, columns and reactors.

The tailored service offers ideal solutions for customers requiring non-standard containers in a range of power, voltage, material and control options. Heating Jackets are also available for special gas cylinder applications.

Contact us to discuss the initial concept, agree a bespoke design, start manufacture and deliver on short lead times to support your Winterisation measures to prevent cold-weather damage to your critical process assets.

WEX Heating Jackets

Heating Jackets & Mats for Hazardous Areas

Hazardous area heating jackets and mats are specialised heating systems engineered for use in potentially explosive environments, such as those found in the chemical, petrochemical, and pharmaceutical industries. Certified in accordance with ATEX guidelines, these solutions ensure maximum safety and reliability in hazardous zones.

Designed to deliver uniform heat distribution, these heating jackets and mats are essential for eliminating cold spots and maintaining consistent process temperatures. Their flexible construction allows them to be easily adapted to different surfaces, vessel shapes, and equipment geometries, highlighting their versatility and efficiency in demanding industrial applications.

WEXH series of heating jackets & mats

Features

Robust, flexible and dissipative construction for indoor and outdoor use
Standard and bespoke solutions available – the heating jacket is customised according to the required dimensions
System-approved with an EC-type examination certificate
Very robust, flexible and dissipative construction for indoor and outdoor use
Delivered completely configured and ready to use immediately without further acceptance procedures
Ambient temperatures from -40 °C to + 60 °C
Protection classes: gas IP65 / dust IP6X
Temperature class: T3
Extensive documentation for the explosion protection document

Explosion protection marking

Gas II 2G Ex e mb IIC T3 Gb
Dust II 2D Ex e mb IIIC T120°C Db
-40°C ≤ Ta ≤ +60°C (ambient temperature)
EC-type examination certificate – TPS 11 ATEX 29587 011 X

Technical Specification | Series WEXH

Nominal Voltage	230 VAC (other nominal voltages upon request)
Nominal Power	Acc. to application
Max. Operating Temperature	+180 °C / +200 °C
Temperature Class	T6, T5, T4, T3 (depending on temperature setting limiter)
Electrical Connection	Terminal boxes for network (EX-e) / sensor (EX-i)
Protection degree/ Protection class	IP65 / I
Zones	1/2 (gas); 21/22 (dust)
Sensor Pt100 (EX-i, EX-e)	standard: 2 optional: 3 (SIL3), 4, 5…

Customised heating jackets & heating mats

WEXH Series Made To Measure

The full range of heating jackets & heating mats are manufactured to customer specifications to meet specific needs and applications. These heating elements ensure safe and efficient heating of vessels, pipes, and other industrial equipment by meeting ATEX directives for explosion protection. Customised manufacturing allows us to combine different sizes and power levels to ensure optimal performance and safety.

Heating sleeves

Heating cable up to +200 °C
Temperature class: T6, T5, T4, T3
Flexibility – flexible and can be wrapped around irregularly shaped objects
Temperature control – have integrated temperature sensors for precise temperature control
Application range – Commonly used in the chemical industry, plastics processing, pipeline heating and laboratory research
Mobility – Lightweight and portable, facilitates use in different environments
SIL version possible

Heating mats

Flat geometries
Temperature class: T6, T5, T4, T3
Efficient heat distribution across the entire surface
Energy efficiency
Easy installation
Adaptability – available in various sizes and performance levels

Customer Specific Examples

ATEX heating jacket (WOTX1263)	ATEX heating jacket for 3-way ball valve (pneumatic actuator) (WEXH0098)	ATEX heating jacket for a container (WEXHD007)	ATEX heating jacket for a filling lance (WEXH0051)
ATEX insulating jacket with antistatic outer jacket (WEXHI001)	Hazardous area heating jacket for coupling outlet part (WEXH0113)	Hazardous area heating jacket for detergent container (WOTX2891)	Hazardous area heating jacket for dry disconnect coupling (WEXH0019)
ATEX heating jacket for material pressure vessel (WEXH004)	ATEX heating jacket for measuring cell (WEXH0045)	ATEX heating jacket for metal bellows (WEXH0039)	ATEX heating jacket for pipe connection (WEXH0075)
ATEX heating jacket for pipeline (WEXH0086)	ATEX heating jackets for a pump (WEXH0147)	ATEX heating jackets for oil tank and vacuum pump (WEXH0105 & WEXH0136)	Two-part heating jacket (WEXH0092)
ATEX insulating jacket (WEXHI006)	ATEX insulating jacket (WEXH0014)	Heating jacket for container bottom (WEXH0079)	Hazardous area insulating jacket (WEXHI002)
