Heatfast HPD Base Drum Heater | Up to 210L Drums
BASE DRUM HEATER HBD | Heatfast base Drum Heating
Product Code: Heatfast HBD
Heatfast’s HBD Base Drum Heater is a robust, industrial-grade drum heating solution engineered for use in the most arduous working environments. Designed to heat standard 200–210 litre metal drums from the base, the HBD provides uniform, thermally efficient heat transfer to melt products or reduce viscosity in soaps, fats, waxes, varnishes and oil-based materials. Manufactured from heavy-duty 2mm steel with a high-temperature protective coating, and fitted with an adjustable 0–150°C thermostat, the HBD is ideal for warehouses, chemical processing areas and construction sites where durability, stability and reliable process heating are essential. Its low-profile platen design ensures secure drum placement while delivering consistent base heating for effective temperature maintenance and controlled heat-up.
GO TO DOWNLOADSProduct Overview

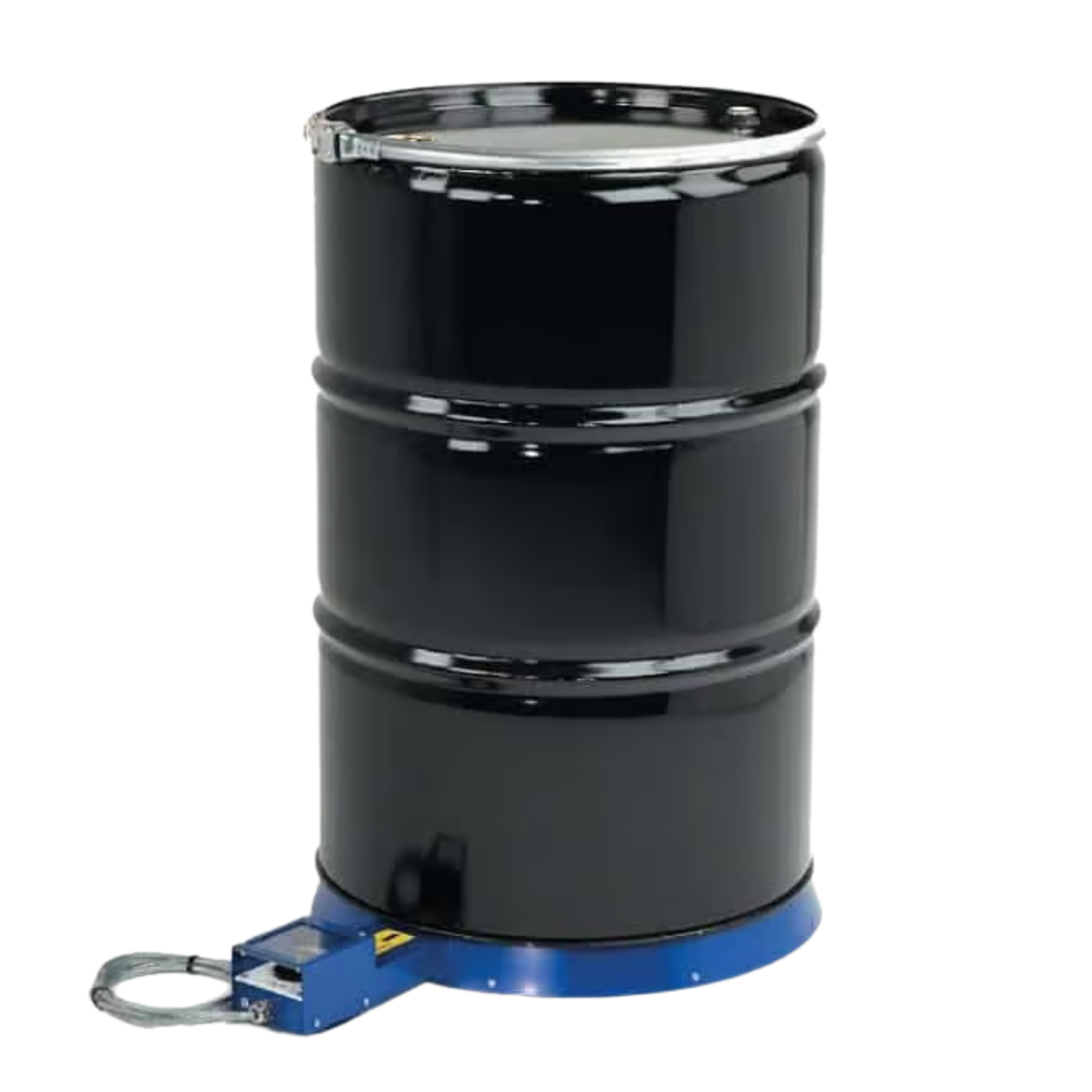

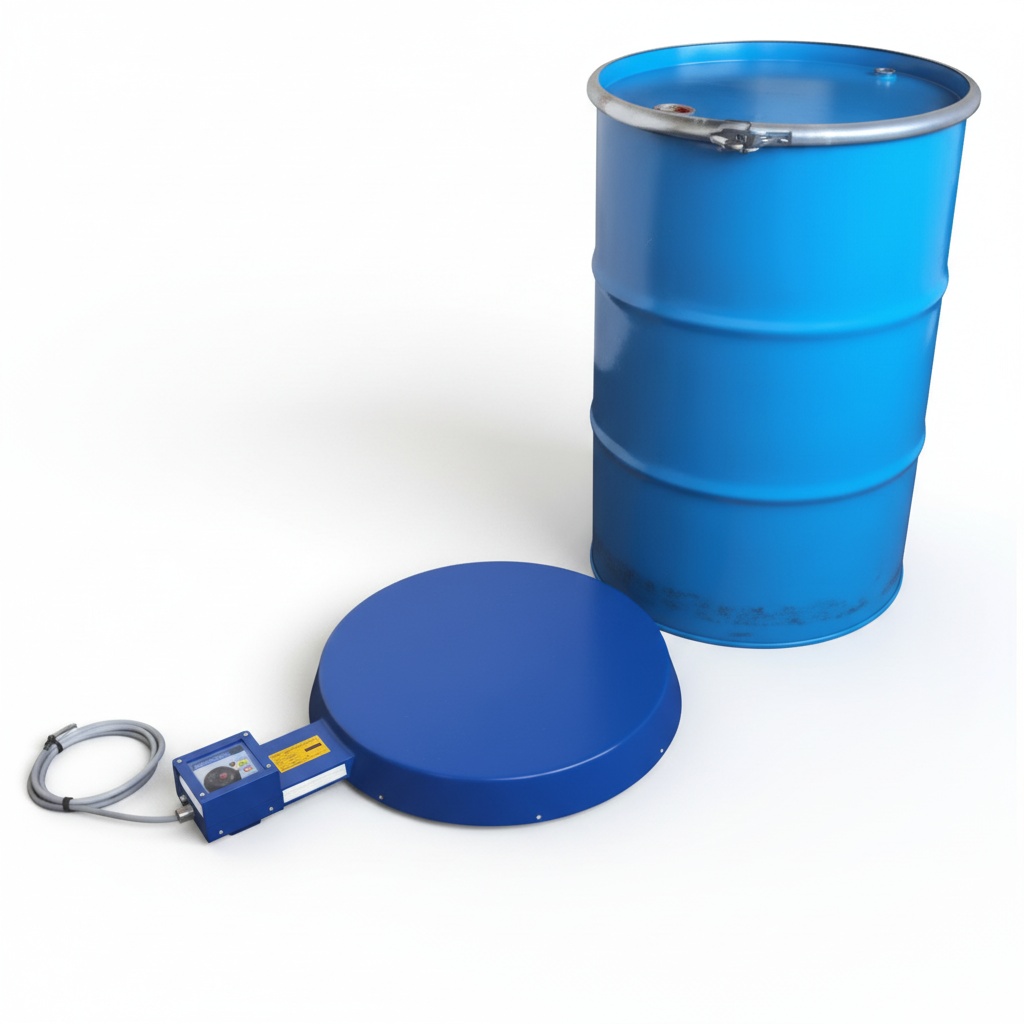

The Heatfast HBD Base Drum Heater is a heavy-duty electric drum heater designed to deliver controlled, uniform heat directly into the base of standard industrial metal drums. Suitable for 200–210 litre drums, the HBD is particularly effective where products must be melted, maintained at temperature or have their viscosity reduced, including soaps, fats, waxes, varnishes and oil-based liquids commonly used in industrial processes.
Unlike side-mounted drum heating jackets, the HBD operates as a base drum heating solution, allowing flush contact between the heated platen and the underside of the drum. Heat is generated by a silicone insulated etched foil heating element bonded beneath the platen and supported by 50mm of high-density Rockwool insulation, ensuring efficient heat transfer into the product while minimising heat loss to the floor. This design delivers even, thermally stable heating in environments where reliability and durability are essential.

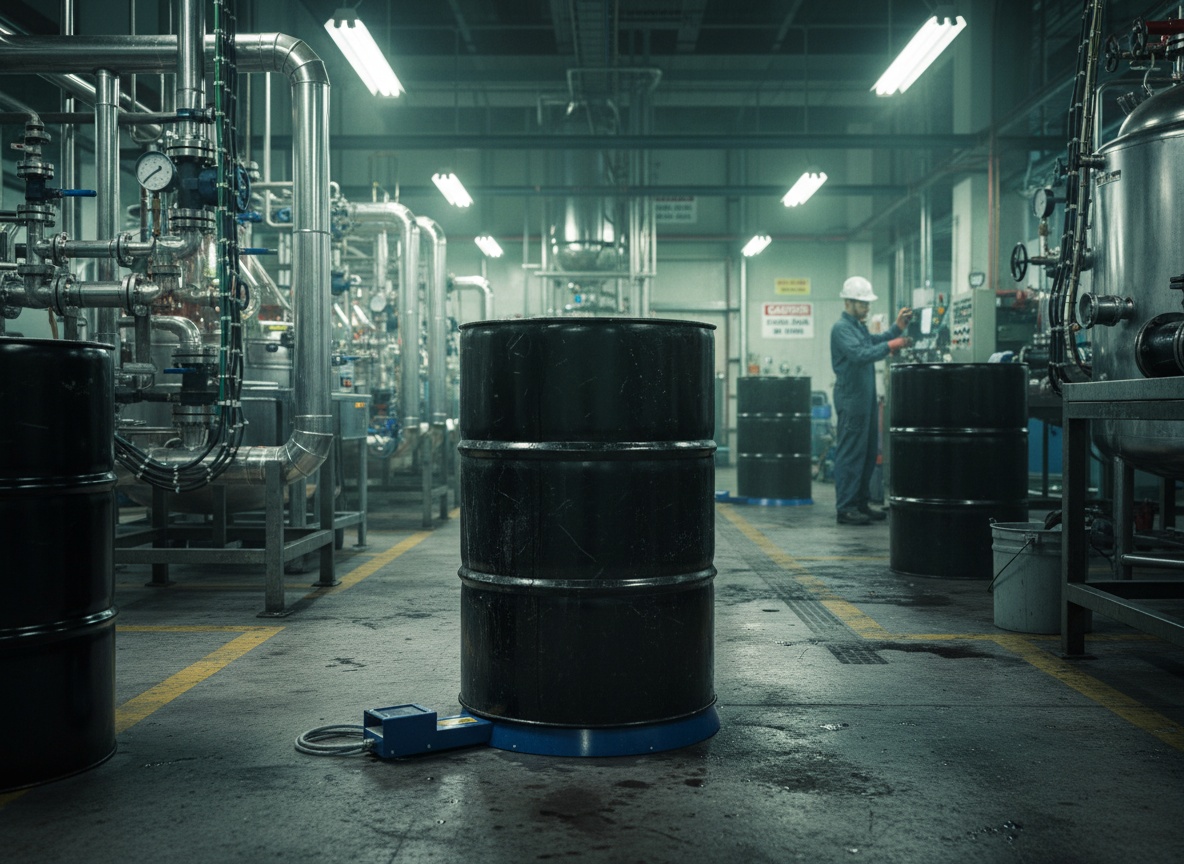

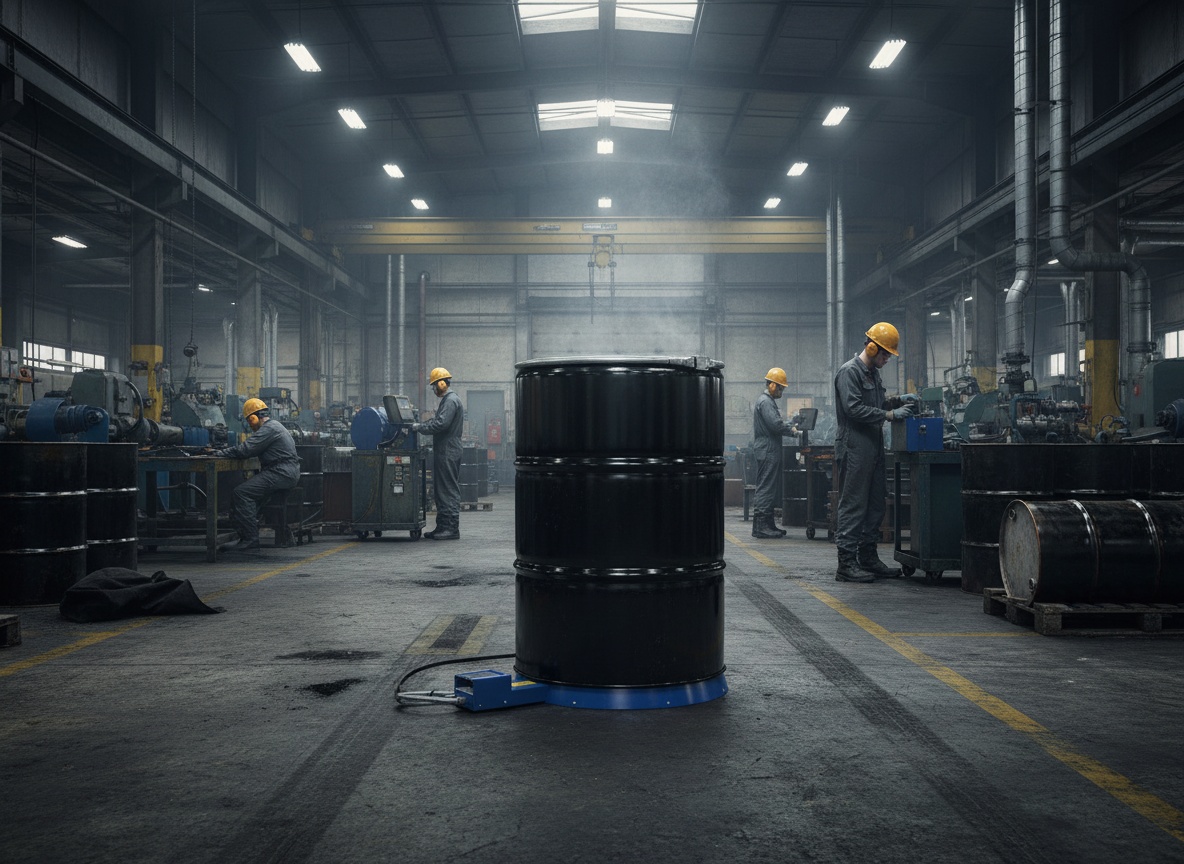

Constructed from 2mm thick steel and protected with a high-temperature resistant coating, the HBD Base Drum Heater is built for use in industrial locations such as warehouses, chemical handling areas and construction sites. Each unit is fitted with an adjustable 0–150°C thermostat, neon power and load indicators, and a 2-metre flexible armoured power cable, providing a safe, robust and long-lasting drum heating solution that can also be used in conjunction with additional drum heaters to enhance overall heating performance.
Contact our trusted experts – place an order or find out more about the Heatfast HBD Base Drum Heater for your operations. Thorne & Derrick International, based in the UK, are the leading stockists and suppliers of Electric & Process Heating & Heat Trace, providing technical advice, quotations and fast worldwide delivery for both UK & export projects.
Technical Specifications
Key Benefits
✔ Heavy-duty base drum heater engineered for reliable operation in arduous industrial environments
✔ Designed specifically for 200–210 litre metal drums requiring controlled base heating
✔ Provides uniform heat transfer through the drum base for effective melting and viscosity reduction
✔ Ideal for processing soaps, fats, waxes, varnishes and oil-based products
✔ 2mm thick steel construction with high-temperature protective coating for maximum durability

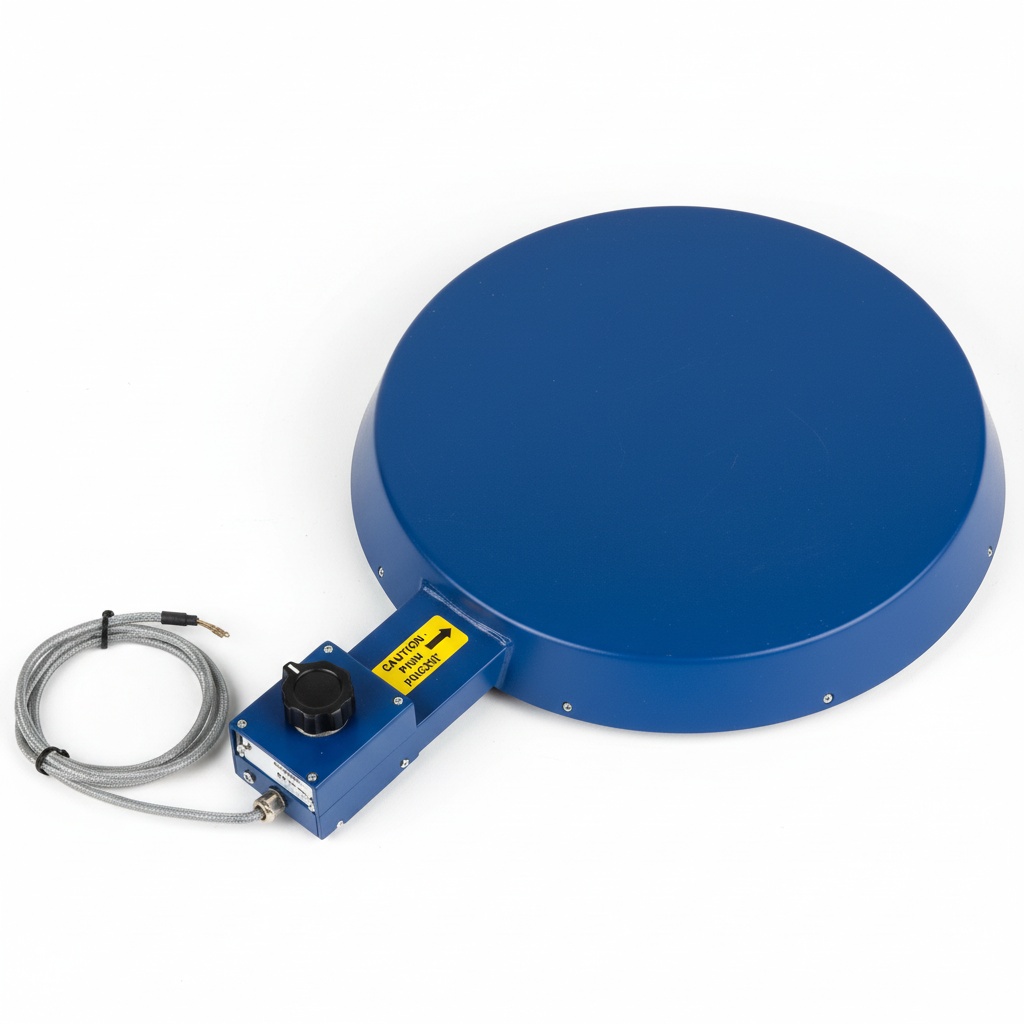

✔ Low-profile heated platen design allows stable and secure drum positioning
✔ Integrated silicone insulated etched foil heating element bonded beneath the platen
✔ Backed by 50mm high-density Rockwool insulation to maximise thermal efficiency

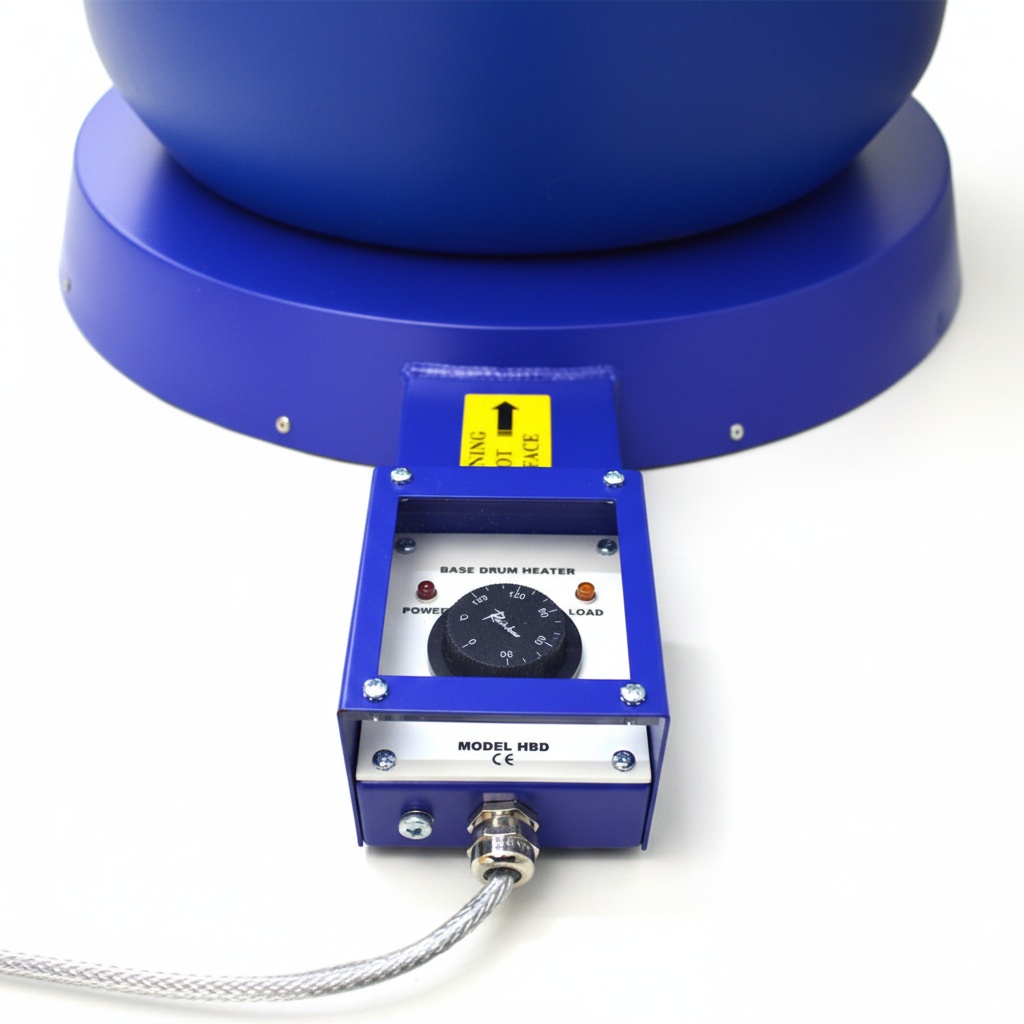

✔ Adjustable 0–150°C thermostat for accurate temperature control and process stability
✔ 900W power output optimised for steady, energy-efficient heat-up
✔ Suitable for continuous temperature maintenance as well as controlled heat-up
✔ Supplied with a durable 2 metre SY type armoured power cable for industrial safety
✔ IP40 rated construction suitable for indoor industrial use
✔ Can be used standalone or alongside side drum heaters to enhance overall heating performance
✔ Serviceable design with optional performance inspection and refurbishment to extend product lifespan
Applications
✔ Base heating of drums to melt or soften fats, waxes and solidified materials from the bottom up
✔ Controlled viscosity reduction of soaps, oils, varnishes and heavy liquid products
✔ Temperature maintenance of drum contents to prevent solidification or settling
✔ Low to medium temperature heat-up for products requiring gentle, even warming
✔ Drum pre-heating prior to pumping, dispensing or decanting operations
✔ Industrial processing of materials where base heat improves flow characteristics

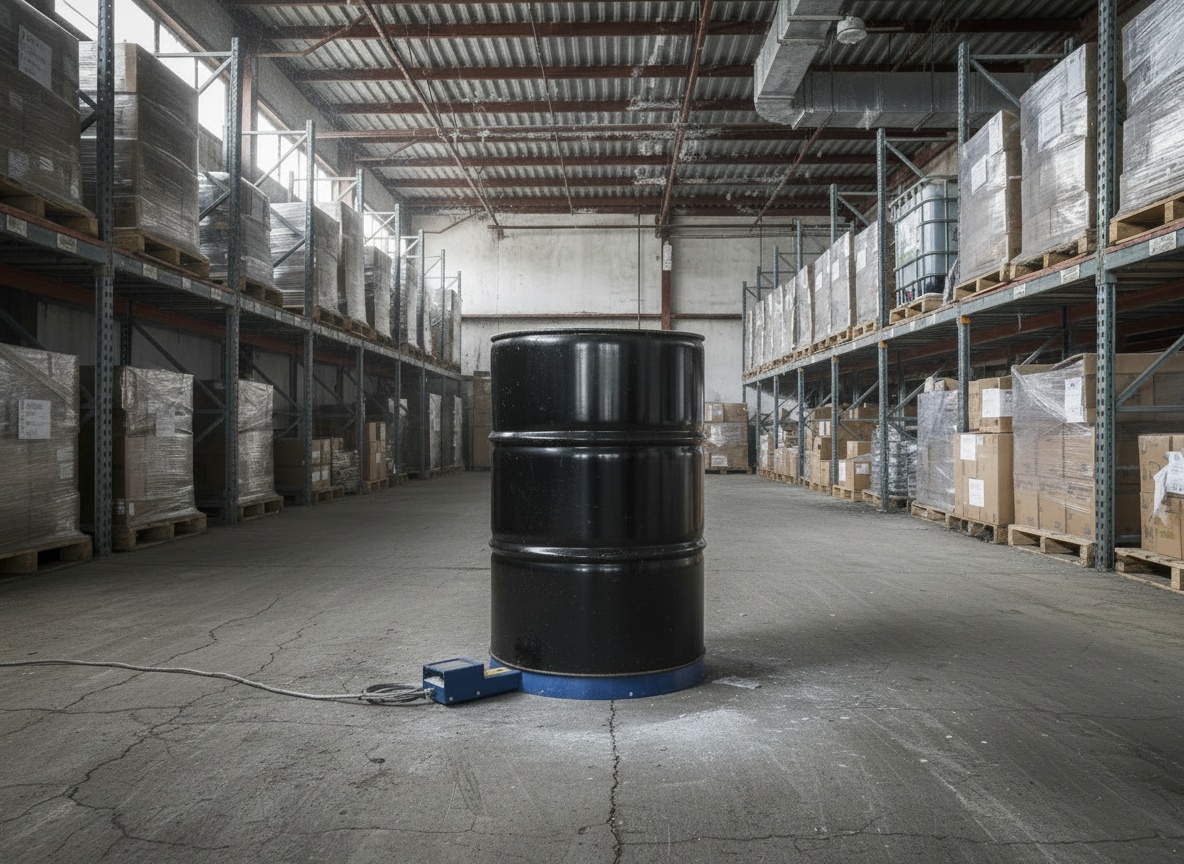

✔ Use in warehouses, chemical handling areas and production facilities
✔ Heating of oil-based products to improve handling, transfer and consistency
✔ Frost protection for drum contents in cool or unheated environments
✔ Applications requiring stable, long-term drum temperature control
✔ Processes where a robust, floor-mounted drum heater is preferred over side jackets
Additional Features
Base Drum Heater HBD Technical Specification Sheet
Download
