Gas Bottle Heaters

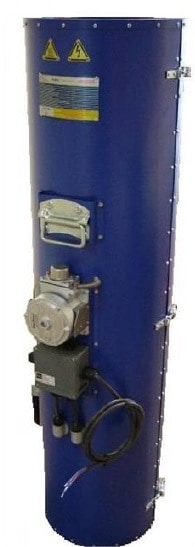

Thermocoax Isopad FIGB-SR gas bottle heaters are a heavy duty heated enclosure designed specifically to solve the issues associated with gas usage in cold climates such as gas separation, gas liquefaction and reduced capacity.

The FIGB-SR gas bottle heater is constructed from heavy gauge sheet steel with a double skin construction housing the electric heating elements which cover the entire inner surface ensuring the gas bottle is heated consistently. These heating elements are insulated to prevent heat loss through the outer wall and the inner walls are also painted with a thermally conductive paint to give maximum heat transfer. The clam shell design and castors allow the gas bottle heaters to be wheeled up to and closed around the gas bottle, eliminated overhead lifting.

Thermocoax Isopad FIGB-SR gas bottle heaters are ATEX and IECEx approved for use within Zone 1 and Zone 2 hazardous area applications and are equipped with a self-regulating heating system as standard.

FIGB-SR gas bottle heaters are available for 10, 20, 40, 50 and 79 litre gas cylinder sizes with a 277V power supply.

T&D also offer a full range of IBC & Drum Heating jackets and heaters.

Hazardous Area Gas Bottle Heater ATEX (to 120°C)

Thermocoax Isopad FIGB-SR

Specification

Area Classification	Hazardous Area
Hazardous Area Zone	Gas – Zone 1 & 2 Dust – Zone 21 & 22
Temperature Class	T2, T4, T6
Ingress Protection	IP6X (IP65)
Electrical Protection Class	Class I
Ambient Temperature Range	-40ºC to +50ºC
Approvals	System Approval by Baseefa
Number of Certificate	Baseefa08ATEX0280X / IECEx BAS 08.0088X
Marking	Ex II GD Ex de IIC T2 … T6 Ex tD A21 IP6X T240ºC … T80ºC
Norms	EN, IEC Standard
Height	750, 1130, 1350, 1400mm
Inner Diameter	150, 214, 239, 328mm
Outer Diameter	250, 314, 339, 428mm
Heater Type	Self Regulating Heating Cable
Carrier	Sheet Metal Steel
Material of Thermal Insulation	Glass Fibre
Thickness	40mm
Outer Protection	Sheet Metal Steel
Paint	Matt Black Heat Resistant & Structured Blue Paint
Fixation & Closure Type	Quick-Snap Fastener
Junction Box (Type)	STAHL Series 8118
Ingress Protection	IP66
Maximum Ambient Temperature	-50ºC to +55ºC
Maximum Connecting Cross Section	4mm²
Terminals	8
Glands	4 x M25
Housing Material	Polyester Glass Fibre Reinforced
Connection Lead Length	2m
Lead Cross Section	4mm²
Maximum Operating Temperature	180ºC
Connection Lead Insulation Material	Silicone
Thermostat (Type)	RAYSTAT-EX-02
Sensor Type	Capillary Type
Controller Range	-4ºC to +163ºC
Ingress Protection	IP65
Maximum Ambient Temperature	-40ºC to +60ºC
Housing Material	Aluminium
Frequency	50-60Hz
Maximum Operating Voltage	277 Vac (~1ph)
Maximum Operating Temperature	65ºC to 120ºC (depends on heating cable type and temperature class)
Options	Design with other housing materials (e.g stainless steel) Alternative junction box type JBU-100-L-E with signal lamp for operating status (ON/OFF)



Product Range

For Standard Sizes (Ltr)	Height (mm)	Inner Diameter (mm)	Outer Diamter (mm)	Nominal Power (W)	Nominal Voltage (VAC)	Weight (kg)
10	750	150	250	630	230	14
10	750	150	250	640	230	14
10	750	150	250	290	230	14
20	750	214	314	820	230	18
20	750	214	314	830	230	18
20	750	214	314	380	230	18
40	1400	214	314	1550	230	30
40	1400	214	314	1570	230	30
40	1400	214	314	710	230	30
50	1350	239	339	1490	230	32
50	1350	239	339	1510	230	32
50	1350	239	339	680	230	32
79	1130	328	428	1510	230	37
79	1130	328	428	1540	230	37
79	1130	328	428	700	230	37
