LED Bulkhead Industrial Lighting | WARRIOR Bulkhead
WARRIOR Bulkhead
LED Bulkhead Industrial Lighting
Bulkhead | Raytec BL24
The WARRIOR Bulkhead range is designed for non hazardous and safe area environments which require high performance, reliable, White-Light illumination. Its compact, low profile design is ideal for restricted space applications with a lumen output between 2,750 – 4,650lm and is available with emergency battery back-up.
SPARTAN Bulkhead forms part of Raytec’s LED heavy industrial lighting range and has been designed with maintenance in mind. All WARRIOR luminaires come with an industry-leading 5-year warranty.
➡ View our complete range of Zone 1 ATEX, IECEx & UKEX Light Fittings manufactured by Raytec and certified according to the ATEX Directive to provide safe and reliable hazardous area lighting in potentially explosive atmospheres in both onshore and offshore locations Zone 1 & 2 Flammable Gas and Zone 21 & 22 (Combustible Dust).

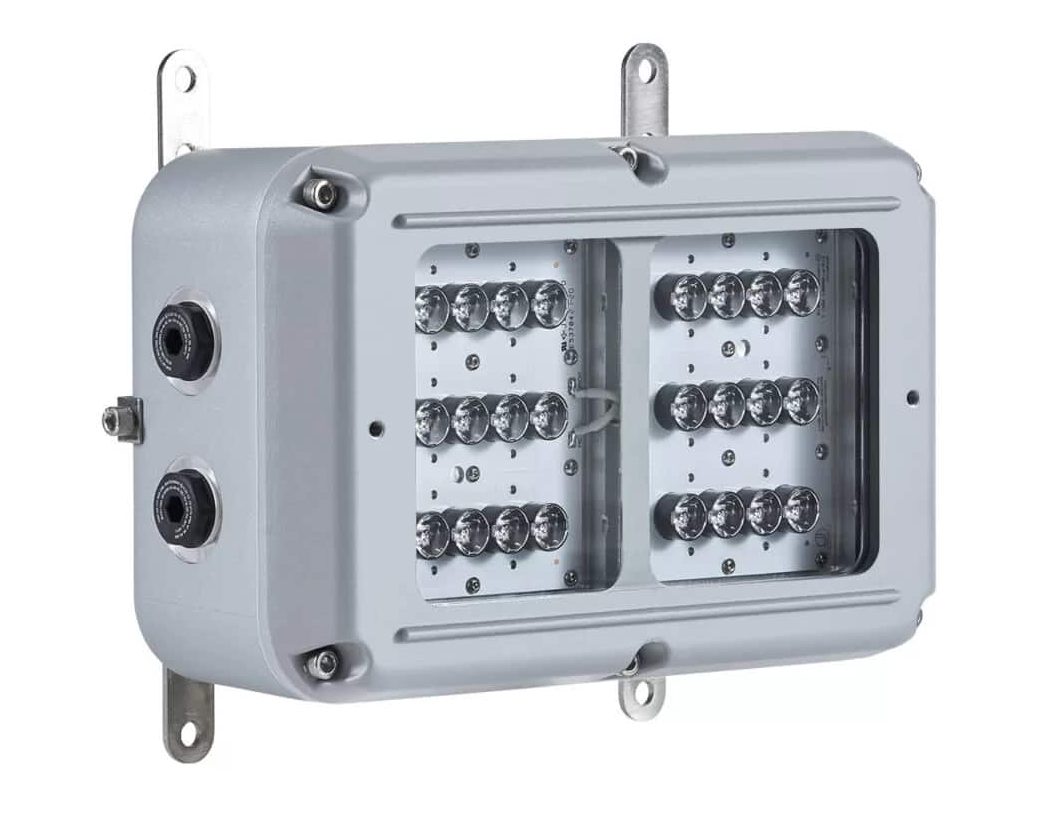

Warrior Bulkhead Heavy Industrial, 2,750 – 4,650lm
LED Industrial bulkhead
Bulkhead is designed from marine grade aluminium with stainless steel bracketry and fastenings to ensure it can withstand the most extreme environments.
Emergency variants are available to provide 3 hours of battery back-up at 25% power. The Intelligent Emergency system self-tests the battery and communicates via a tri-colour LED indicator.
A unique modular design allows quick and easy maintenance. PSUs and control gear can be accessed from the front so maintenance can be carried out while the luminaire is in-situ.
| BL24 | BL24-HO | BL24 EMX25 | BL24-HO EMX25 | |
|---|---|---|---|---|
| Input | 110-254V 50/60Hz AC only, 18-48V AC and 18-69V DC (LV), 12V AC/DC (ELV) | 110-254V 50/60Hz AC only | ||
| Power | 20W | 34W | 24W | 37W |
| Termination | Incoming terminal block suitable for looping 4 core 4mm² cable (6mm² available) | |||
| Power Factor | >0.9 | |||
| Cable Entries | 4xM20 as standard (other entries available upon request), dispatched complete with three blanking plugs | |||
BL24 Variants
| WARRIOR Heavy Industrial Bulkhead Luminaires | |
| Circular Beam Pattern | |
| SPI-BL24-W-1010 | WARRIOR Bulkhead 24 LED, White-Light 10°x10° beam |
| SPI-BL24-W-1010-EMX25 | WARRIOR Bulkhead 24 LED, White-Light 10°x10° beam – Intelligent Emergency Variant (25% Output) |
| SPI-BL24-W-3030 | WARRIOR Heavy Industrial Bulkhead 24 LED, White-Light 30°x30° beam |
| SPI-BL24-W-3030-EMX25 | WARRIOR Bulkhead 24 LED, White-Light 30°x30° beam – Intelligent Emergency Variant (25% Output) |
| SPI-BL24-W-5050 | WARRIOR Heavy Industrial Bulkhead 24 LED, White-Light 50°x50° beam |
| SPI-BL24-W-5050-EMX25 | WARRIOR Bulkhead 24 LED, White-Light 50°x50° beam – Intelligent Emergency Variant (25% Output) |
| SPI-BL24-W-8080 | WARRIOR Bulkhead 24 LED, White-Light 80°x80° beam |
| SPI-BL24-W-8080-EMX25 | WARRIOR Bulkhead 24 LED, White-Light 80°x80° beam – Intelligent Emergency Variant (25% Output) |
| SPI-BL24-W-120120 | WARRIOR Bulkhead 24 LED, White-Light 120°x120° beam |
| SPI-BL24-W-120120-EMX25 | WARRIOR Bulkhead 24 LED, White-Light 120°x120° beam – Intelligent Emergency Variant (25% Output) |
| Elliptical Beam Pattern | |
| SPI-BL24-W-3510 | WARRIOR Bulkhead 24 LED, White-Light 35°x10° beam |
| SPI-BL24-W-3510-EMX25 | WARRIOR Bulkhead 24 LED, White-Light 35°x10° beam – Intelligent Emergency Variant (25% Output) |
| SPI-BL24-W-6025 | WARRIOR Bulkhead 24 LED, White-Light 60°x25° beam |
| SPI-BL24-W-6025-EMX25 | WARRIOR Bulkhead 24 LED, White-Light 60°x25° beam – Intelligent Emergency Variant (25% Output) |
| SPI-BL24-W-8030 | WARRIOR Bulkhead 24 LED, White-Light 80°x30° beam |
| SPI-BL24-W-8030-EMX25 | WARRIOR Bulkhead 24 LED, White-Light 80°x30° beam – Intelligent Emergency Variant (25% Output) |
| SPI-BL24-W-12050 | WARRIOR Bulkhead 24 LED, White-Light 120°x50° beam |
| SPI-BL24-W-12050-EMX25 | WARRIOR Bulkhead 24 LED, White-Light 120°x50° beam – Intelligent Emergency Variant (25% Output) |
| WARRIOR Heavy Industrial Bulkhead Luminaires Complete With Exit Sign Kit | |
| SPI-BL24-W-12050-EMX100-LO-EXIT | WARRIOR Bulkhead 24 LED, Heavy Industrial, White-Light 120°x50° beam – Low Output Intelligent Emergency Variant (100% Output) – With Exit Sign Kit |
| SPI-BL24-W-12050-EMX25-EXIT | WARRIOR Bulkhead 24 LED, Heavy Industrial, White-Light 120°x50° beam – Intelligent Emergency Variant (25% Output) – With Exit Sign Kit |
Lighting Designs For Hazardous Areas & Non Hazardous Areas
Upgrading Plant Legacy Lighting to LED
Thorne & Derrick International, based in the UK, are leading Stockists & Distributors of hazardous area lighting & heavy industrial lighting utilising conventional light fittings and more powerful modern technology White-Light illumination using LED technology – from stock we provide competitive prices and technical support to enable the specification of explosive atmosphere lighting schemes compliant and certified to international standards including ATEX and IECEx.
Using latest software our FREE Lighting Design Service supports the upgrade from fluorescent to LED lighting focussed on maximised light output, optimised energy consumption with reliable and safe certification for explosion protection concepts in Zone 1 and Zone 2 hazardous area zones and workplaces.
WARRIOR LED Industrial SPI Bulkhead – Data Sheet
Download
