LED Industrial Bay Light | WARRIOR SPI HPBY

LED Industrial Bay Light WARRIOR SPI HPBY

WARRIOR High Power Bay

LED Bay Industrial Lighting

High Power Bay | Raytec HPBY

The WARRIOR High Power Bay range is designed to illuminate large, open spaces within non-hazardous safe areas. Available with a range of different outputs from 20,000 to 34,000 lumens, the High Power Bay uses Raytec’s field-proven, long-life LED technology to ensure a lifetime of 10 years+. All WARRIOR luminaires come with an industry-leading 5-year warranty.

SPARTAN High Power Bay forms part of Raytec’s LED heavy industrial lighting range and has been designed with maintenance in mind. All WARRIOR luminaires come with an industry-leading 5-year warranty.

➡ View our complete range of Zone 1 ATEX, IECEx & UKEX Light Fittings manufactured by Raytec and certified according to the ATEX Directive to provide safe and reliable hazardous area lighting in potentially explosive atmospheres in both onshore and offshore locations Zone 1 & 2 Flammable Gas and Zone 21 & 22 (Combustible Dust).

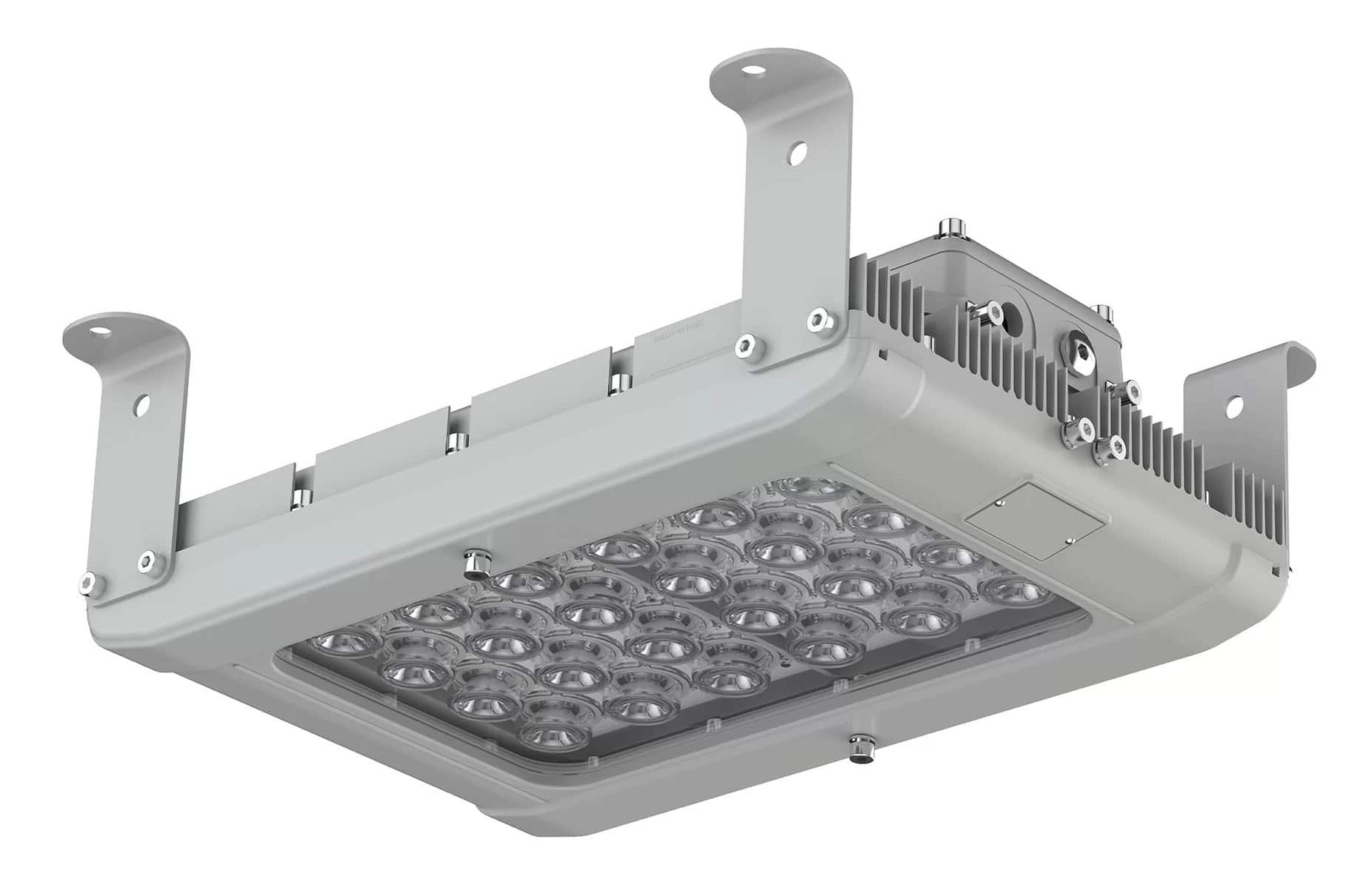

WARRIOR High Power Bay, Heavy Industrial, 20,000lm – 34,000lm

LED Industrial High Power Bay Light

Robust and durable construction from marine grade aluminium and with a wide operating temperature for even the most challenging conditions. High lumen output up to 34,000 lumens and a range of beam patterns to effectively light up large open areas.

Designed to directly replace traditional discharge light sources up to 400W SON. The modular design allows easy access to key components and the ability to mount the PSU remotely.

	HPBY 20K	HPBY 25K	HPBY 30K
Input	150-264V 50/60Hz AC/DC (110V variant available – please contact T&D)
Power	200W	250W	300W
Termination	Incoming terminal block suitable for looping 4 core 4mm² cable (6mm² available)
Power Factor	>0.95
Cable Entries	2xM20 as standard (other entries available upon request), dispatched complete with one blanking plug

HPBY Variants

WARRIOR Heavy Industrial High Power Bay Luminares 20,000-25,000 Lumens
SPI-HPBY30K-W-3030	WARRIOR Heavy Industrial High Power Bay, White-Light, 30,000 lumens 30°x30° beam
SPI-HPBY30K-W-6060	WARRIOR Heavy Industrial High Power Bay, White-Light, 30,000 lumens 60°x60° beam
SPI-HPBY30K-W-9090	WARRIOR Heavy Industrial High Power Bay, White-Light, 30,000 lumens 90°x90° beam
SPI-HPBY25K-W-3030	WARRIOR Heavy Industrial High Power Bay, White-Light, 25,000 lumens 30°x30° beam
SPI-HPBY25K-W-6060	WARRIOR Heavy Industrial High Power Bay, White-Light, 25,000 lumens 60°x60° beam
SPI-HPBY25K-W-9090	WARRIOR Heavy Industrial High Power Bay, White-Light, 25,000 lumens 90°x90° beam
SPI-HPBY20K-W-3030	WARRIOR Heavy Industrial High Power Bay, White-Light, 20,000 lumens 30°x30° beam
SPI-HPBY20K-W-6060	WARRIOR Heavy Industrial High Power Bay, White-Light, 20,000 lumens 60°x60° beam
SPI-HPBY20K-W-9090	WARRIOR Heavy Industrial High Power Bay, White-Light, 20,000 lumens 90°x90° beam

Lighting Designs For Hazardous Areas & Non Hazardous Areas

Upgrading Plant Legacy Lighting to LED

Thorne & Derrick International, based in the UK, are leading Stockists & Distributors of hazardous area lighting & heavy industrial lighting utilising conventional light fittings and more powerful modern technology White-Light illumination using LED technology – from stock we provide competitive prices and technical support to enable the specification of explosive atmosphere lighting schemes compliant and certified to international standards including ATEX and IECEx.

Using latest software our FREE Lighting Design Service supports the upgrade from fluorescent to LED lighting focussed on maximised light output, optimised energy consumption with reliable and safe certification for explosion protection concepts in Zone 1 and Zone 2 hazardous area zones and workplaces.
