LED Industrial Floodlight | WARRIOR Floodlight
WARRIOR Floodlight
LED Industrial Floodlight
Floodlight | Raytec FL24 & FL48
The WARRIOR Flood range is designed for industrial environments which require high performance, reliable, White-Light illumination located in safe, non hazardous areas. Available with emergency battery back-up and delivering from 9,300 to 18,600 lumens, the FL Flood range uses Raytec’s field-proven, long-life LED technology to ensure a lifetime of 10 years+.
SPARTAN Flood forms part of Raytec’s LED heavy industrial lighting range and has been designed with maintenance in mind. All WARRIOR luminaires come with an industry-leading 5-year warranty.
➡ View our complete range of Zone 1 ATEX, IECEx & UKEX Light Fittings manufactured by Raytec and certified according to the ATEX Directive to provide safe and reliable hazardous area lighting in potentially explosive atmospheres in both onshore and offshore locations Zone 1 & 2 Flammable Gas and Zone 21 & 22 (Combustible Dust).

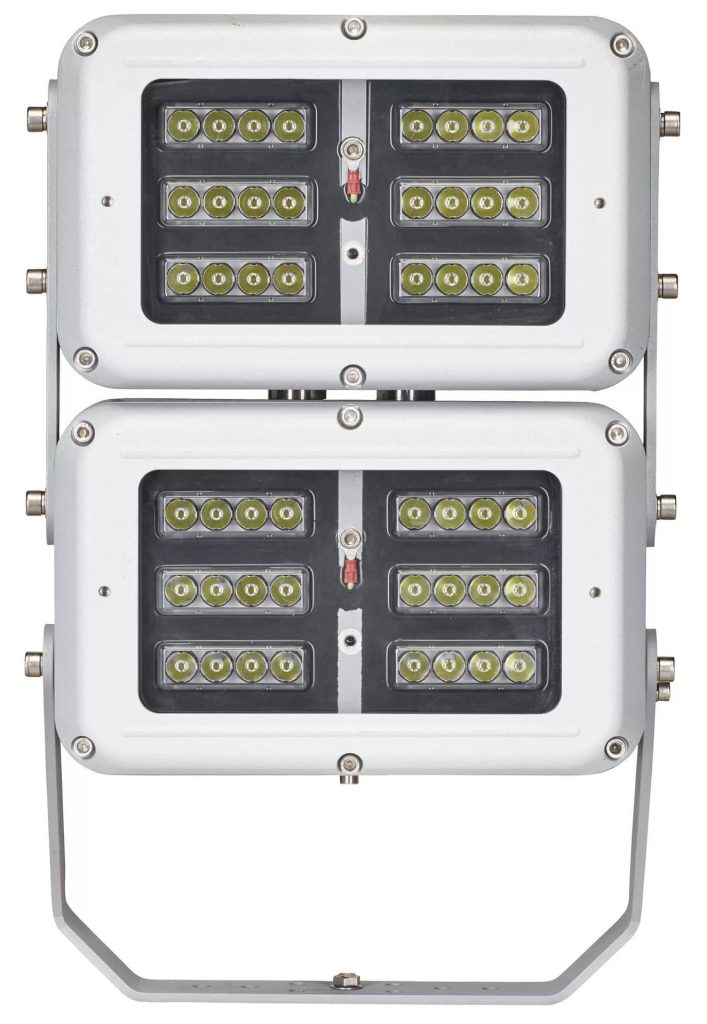

LED Industrial Floodlight FL48
LED Industrial Floodlight
FL24 and FL48 emergency variants deliver up to 90 minutes of emergency battery back-up, and can also deliver up to 100% output on emergency for shorter duration if required. A unique modular design means key components, such as the LED and PSU modules, are easily accessible for straightforward maintenance and inspection.
SPARTAN Flood is available in a range of different beam patterns, both circular and elliptical, with revolutionary interchangeable VARIO lens inserts which can be easily altered on-site delivering the ultimate flexibility to specifiers, distributors and end users. SPARTAN uses CoolExtrude™ thermal management technology, ensuring a much cooler LED operating temperature and up to 60% better heat dissipation compared to traditional lighting solutions, allowing the product to operate for > 10 years while still delivering a high lumen output of up to 9,300 lumens.
| FL24 | FL24 Emergency Backup | FL48 | FL48 Emergency Backup | |
|---|---|---|---|---|
| Input | 110-254V 50/60Hz AC only, 18-48V AC and 18-69V DC, 12V AC/DC | 110-254V 50/60Hz AC only | 110-254V 50/60Hz AC only, 18-48V AC and 18-69V DC, 12V AC/DC | 110-254V 50/60Hz AC only |
| Power | 68W | 71W | 136W | 139W |
| Termination | Incoming terminal block suitable for looping 4 core 4mm² cable (6mm² available) | |||
| Power Factor | >0.95 | |||
| Cable Entries | 2xM20 as standard (other entries available upon request), dispatched complete with one ATEX/IECEx approved blanking plug | |||
SPI-FL24 & SPI-FL48 Variants
| WARRIOR Heavy Industrial LED Flood Luminaires 9,300 Lumens | |
| Circular Beam Pattern | |
| SPI-FL24-W-1010 | WARRIOR Flood 24 LED, Heavy Industrial, White-Light 10°x10° beam |
| SPI-FL24-W-1010-EM50 | WARRIOR Flood 24 LED, Heavy Industrial, White-Light 10°x10° beam – Emergency Variant (50% Output) |
| SPI-FL24-W-3030 | WARRIOR Flood 24 LED, Heavy Industrial, White-Light 30°x30° beam |
| SPI-FL24-W-3030-EM50 | WARRIOR Flood 24 LED, Heavy Industrial, White-Light 30°x30° beam – Emergency Variant (50% Output) |
| SPI-FL24-W-5050 | WARRIOR Flood 24 LED, Heavy Industrial, White-Light 50°x50° beam |
| SPI-FL24-W-5050-EM50 | WARRIOR Flood 24 LED, Heavy Industrial, White-Light 50°x50° beam – Emergency Variant (50% Output) |
| SPI-FL24-W-8080 | WARRIOR Flood 24 LED, Heavy Industrial, White-Light 80°x80° beam |
| SPI-FL24-W-8080-EM50 | WARRIOR Flood 24 LED, Heavy Industrial, White-Light 80°x80° beam – Emergency Variant (50% Output) |
| SPI-FL24-W-120120 | WARRIOR Flood 24 LED, Heavy Industrial, White-Light 120°x120° beam |
| SPI-FL24-W-120120-EM50 | WARRIOR Flood 24 LED, Heavy Industrial, White-Light 120°x120° beam – Emergency Variant (50% Output) |
| Elliptical Beam Pattern | |
| SPI-FL24-W-3510 | WARRIOR Flood 24 LED, Heavy Industrial, White-Light 35°x10° beam |
| SPI-FL24-W-3510-EM50 | WARRIOR Flood 24 LED, Heavy Industrial, White-Light 35°x10° beam – Emergency Variant (50% Output) |
| SPI-FL24-W-6025 | WARRIOR Flood 24 LED, Heavy Industrial, White-Light 60°x25° beam |
| SPI-FL24-W-6025-EM50 | WARRIOR Flood 24 LED, Heavy Industrial, White-Light 60°x25° beam – Emergency Variant (50% Output) |
| SPI-FL24-W-8030 | WARRIOR Flood 24 LED, Heavy Industrial, White-Light 80°x30° beam |
| SPI-FL24-W-8030-EM50 | WARRIOR Flood 24 LED, Heavy Industrial, White-Light 80°x30° beam – Emergency Variant (50% Output) |
| SPI-FL24-W-12050 | WARRIOR Flood 24 LED, Heavy Industrial, White-Light 120°x50° beam |
| SPI-FL24-W-12050-EM50 | WARRIOR Flood 24 LED, Heavy Industrial, White-Light 120°x50° beam – Emergency Variant (50% Output) |
| WARRIOR Heavy Industrial LED Flood Luminaires 18,600 Lumens | |
| Circular Beam Pattern | |
| SPI-FL48-W-1010 | WARRIOR Flood 48 LED, Heavy Industrial, White-Light 10°x10° beam |
| SPI-FL48-W-1010-EM25 | WARRIOR Flood 48 LED, Heavy Industrial, White-Light 10°x10° beam – Emergency Variant (25% Output) |
| SPI-FL48-W-3030 | WARRIOR Flood 48 LED, Heavy Industrial, White-Light 30°x30° beam |
| SPI-FL48-W-3030-EM25 | WARRIOR Flood 48 LED, Heavy Industrial, White-Light 30°x30° beam – Emergency Variant (25% Output) |
| SPI-FL48-W-5050 | WARRIOR Flood 48 LED, Heavy Industrial, White-Light 50°x50° beam |
| SPI-FL48-W-5050-EM25 | WARRIOR Flood 48 LED, Heavy Industrial, White-Light 50°x50° beam – Emergency Variant (25% Output) |
| SPI-FL48-W-8080 | WARRIOR Flood 48 LED, Heavy Industrial, White-Light 80°x80° beam |
| SPI-FL48-W-8080-EM25 | WARRIOR Flood 48 LED, Heavy Industrial, White-Light 80°x80° beam – Emergency Variant (25% Output) |
| SPI-FL48-W-120120 | WARRIOR Flood 48 LED, Heavy Industrial, White-Light 120°x120° beam |
| SPI-FL48-W-120120-EM25 | WARRIOR Flood 48 LED, Heavy Industrial, White-Light 120°x120° beam – Emergency Variant (25% Output) |
| Elliptical Beam Pattern | |
| SPI-FL48-W-3510 | WARRIOR Flood 48 LED, Heavy Industrial, White-Light 35°x10° beam |
| SPI-FL48-W-3510-EM25 | WARRIOR Flood 48 LED, Heavy Industrial, White-Light 35°x10° beam – Emergency Variant (25% Output) |
| SPI-FL48-W-6025 | WARRIOR Flood 48 LED, Heavy Industrial, White-Light 60°x25° beam |
| SPI-FL48-W-6025-EM25 | WARRIOR Flood 48 LED, Heavy Industrial, White-Light 60°x25° beam – Emergency Variant (25% Output) |
| SPI-FL48-W-8030 | WARRIOR Flood 48 LED, Heavy Industrial, White-Light 80°x30° beam |
| SPI-FL48-W-8030-EM25 | WARRIOR Flood 48 LED, Heavy Industrial, White-Light 80°x30° beam – Emergency Variant (25% Output) |
| SPI-FL48-W-12050 | WARRIOR Flood 48 LED, Heavy Industrial, White-Light 120°x50° beam |
| SPI-FL48-W-12050-EM25 | WARRIOR Flood 48 LED, Heavy Industrial, White-Light 120°x50° beam – Emergency Variant (25% Output) |
Lighting Designs For Hazardous Areas & Non Hazardous Areas
Upgrading Plant Legacy Lighting to LED
Thorne & Derrick International, based in the UK, are leading Stockists & Distributors of hazardous area lighting & heavy industrial lighting utilising conventional light fittings and more powerful modern technology White-Light illumination using LED technology – from stock we provide competitive prices and technical support to enable the specification of explosive atmosphere lighting schemes compliant and certified to international standards including ATEX and IECEx.
Using latest software our FREE Lighting Design Service supports the upgrade from fluorescent to LED lighting focussed on maximised light output, optimised energy consumption with reliable and safe certification for explosion protection concepts in Zone 1 and Zone 2 hazardous area zones and workplaces.
