LED Linear Heavy Industrial Lighting
Linear Generation II | Raytec SPI
WARRIOR lighting products manufactured by Raytec are designed for use in heavy industrial applications in non-hazardous, safe areas. The WARRIOR Linear range of LED heavy industrial lighting is ideal for new installations or to retrofit existing fluorescent installations which require high performance, reliable, White-Light illumination.
Using Raytec’s field-proven, long-life LED technology, the industrial linear lighting is specifically designed for challenging environments and operation.
Designed to provide extreme levels of durability, and with a unique modular design which makes maintenance quick and easy. All WARRIOR luminaires are designed and manufactured in the UK and come with an industry-leading 5-year warranty.
➡ The Generation II version is also available for hazardous areas for Zone 1 Linear Lighting & Zone 2 Linear Lighting
➡ View our complete range of Zone 1 ATEX, IECEx & UKEX Light Fittings manufactured by Raytec and certified according to the ATEX Directive to provide safe and reliable hazardous area lighting in potentially explosive atmospheres in both onshore and offshore locations Zone 1 & 2 Flammable Gas and Zone 21 & 22 (Combustible Dust).

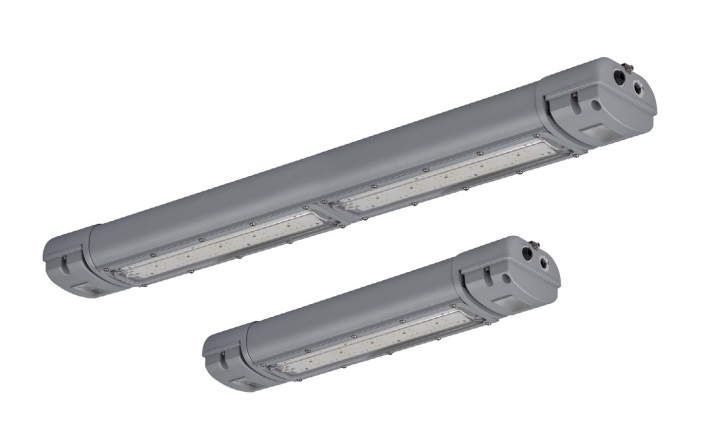

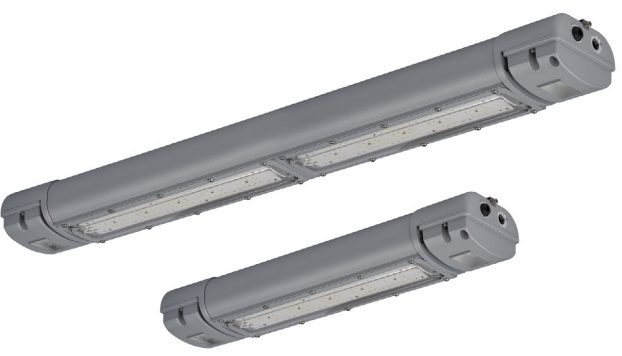

LED Linear Industrial Lighting
Raytec WARRIOR Generation II Light Fittings (Linear) have thermal management technology ensures a lifetime of 10 years and are available with an industry leading 5 year warranty.
Linear has been designed with the same dimensions, fixing centres and cable entries as traditional fluorescent fittings making it a direct replacement.
Raytec are specialists in LEDs and the WARRIOR Linear is no exception. All their products are designed around LEDs with bespoke housing for optimum performance and reliability.
Key components such as the LED and PSU modules are easily accessible for straightforward maintenance and inspection.
| WL84 | WL84 EMX25 | WL84 Essential | |
|---|---|---|---|
| Input | Standard: 110-254Vac 50/60Hz, 110-254Vdc * Low voltage: 18-48V AC and 18-69V DC Extra low voltage: 12V AC/DC |
110-254V 50/60Hz AC only | Standard: 110-254Vac 50/60Hz, 110-254Vdc * Low voltage: 18-48V AC and 18-69V DC Extra low voltage: 12V AC/DC |
| Power | 24W | 32W | 49W |
| Termination | Incoming terminal block suitable for looping 4 core 4mm² cable (6mm² available – POA) | ||
| Power Factor | >0.95 | ||
| Cable Entries | 2xM20 cable entries at both ends, through wired as standard (other entries available upon request), dispatched complete with three blanking plugs | 2xM20 cable entries at one end. Loop in loop out as standard (other entries available upon request), dispatched complete with one approved blanking plugs | |
| *T6 variant is AC Only | |||
WL84 & WL168 Variants
WL84 & WL168 WARRIOR Linear is available in a number of different variants to suit a wide range of applications.
| WARRIOR Heavy Industrial Linear Luminaires | |
| WARRIOR Heavy Industrial Linear WL84 & WL168 | |
| SPI-WL84 | 80 LED, White-Light |
| SPI-WL84-EMX25 | 80 LED, White-Light – Intelligent Emergency variant (25% Output) |
| SPI-WL168 | 160 LED, White-Light |
| SPI-WL168-EMX25 | 160 LED, White-Light – Intelligent Emergency variant (25% Output) |
| WARRIOR Heavy Industrial Linear WL168 | |
| SPI-WL168 | 160 LED, White-Light |
| SPI-WL168-EMX25 | 160 LED, White-Light – Intelligent Emergency variant (25% Output) |
| Non-standard WARRIOR Heavy Industrial Linear | |
| SPI-WL84-LL | 80 LED, White-Light – Essential Loop-In Loop-Out variant |
| SPI-WL168-LL | 160 LED, White-Light – Essential Loop-In Loop-Out variant |
| SPI-WL84-1200 | WARRIOR Heavy Industrial Linear 80 LED, White-Light |
| SPI-WL84-1200-EMX25 | 80 LED, White-Light – Intelligent Emergency variant (25% Output) |
| SPI-WL168-1500 | 160 LED, White-Light |
| WARRIOR Heavy Industrial High Output Linear Luminaires | |
| WARRIOR Heavy Industrial Linear WL84 High Output | |
| SPI-WL84-HO | WARRIOR Heavy Industrial High Output Linear 80 LED, White-Light |
| SPI-WL84-HO-EMX25 | WARRIOR Heavy Industrial High Output Linear 80 LED, White-Light – Intelligent Emergency variant (25% Output) |
| WARRIOR Heavy Industrial Linear WL168 High Output | |
| SPI-WL168-HO | WARRIOR Heavy Industrial High Output Linear 160 LED, White-Light |
| WARRIOR Heavy Industrial Shower Safe Luminaires | |
| WARRIOR Heavy Industrial Shower Safe Linear WL84 | |
| SPI-WL84-G | WARRIOR Heavy Industrial Shower Safe Linear, 80 Green LED |
| SPI-WL84-EMX25-G | WARRIOR Heavy Industrial Shower Safe Linear, 80 Green LED – Intelligent Emergency variant (25% Output) |
| WARRIOR Heavy Industrial Shower Safe Linear WL168 | |
| SPI-WL168-G | WARRIOR Heavy Industrial Shower Safe Linear, 160 Green LED |
| SPI-WL168-EMX25-G | WARRIOR Heavy Industrial Shower Safe Linear, 160 Green LED – Intelligent Emergency variant (25% Output) |
| WARRIOR Heavy Industrial LED Spigot Mount Linear Luminaires | |
| WARRIOR Heavy Industrial Linear SPIGOT MOUNT | |
| SPI-WL84-SP | 80 LED, Heavy Industrial, White-Light Spigot Mount |
| SPI-WL84-EMX25-SP | 80 LED, Heavy Industrial, White-Light – Intelligent Emergency variant (25% Output) Spigot Mount |
| SPI-WL168-SP | 160 LED, Heavy Industrial, White-Light Spigot Mount |
Lighting Designs For Hazardous Areas & Non Hazardous Areas
Upgrading Plant Legacy Lighting to LED
Thorne & Derrick International, based in the UK, are leading Stockists & Distributors of hazardous area lighting & heavy industrial lighting utilising conventional light fittings and more powerful modern technology White-Light illumination using LED technology – from stock we provide competitive prices and technical support to enable the specification of explosive atmosphere lighting schemes compliant and certified to international standards including ATEX and IECEx.
Using latest software our FREE Lighting Design Service supports the upgrade from fluorescent to LED lighting focussed on maximised light output, optimised energy consumption with reliable and safe certification for explosion protection concepts in Zone 1 and Zone 2 hazardous area zones and workplaces.
