Zone 2 & Zone 22

Product Category: Hazardous Area Lighting | Enclosed & Gasketed LED Light Fittings

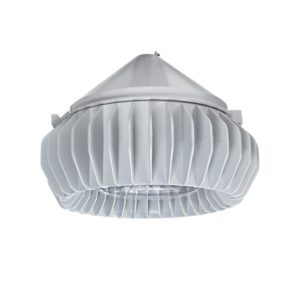

Mercmaster LED light fittings, manufactured by Appleton ATX, deliver exceptional performance, efficiency and advanced engineering in hazardous area lighting.

Designed to light hazardous areas such as parking garages, storage areas, oil refineries, chemical plants, water and sewage treatment and paper mills, using as little as 32 Watts of power. The ATX Mercmaster LED light fitting can lower energy consumption while providing 60,000+ hours of running lamp life.

The MLEDNA Mercmaster light fitting is suitable for use in wet and marine locations, making it an ideal choice for coastal locations. In areas requiring better visibility and instant-on illumination, the range of Mercmaster LED light fittings provide a low maintenance, energy efficient solution.

Mercmaster is certified as NEC/CEC Class I, Division 2 and ATEX/IECEx Zone 2 and Zone 22 locations.

Designed to fit conduit or cable installations and use the same wiring as HID fixtures
Supplied with terminals to assure wiring is straightforward
Upgraded LED arrays generate light outputs from 2,300 to 12,850 lumens (an equivalent of 70 W HID to 400 W HID lamps) to provide exceptional efficacy
Eight distinctive lumen output versions are available with NEMA Type I or Type V light distribution patterns
Universal drivers cover voltage requirements for 120-277 Vac and 347-480 Vac
Electrical: 120-277 Vac, 50/60 Hz; 347-480 Vac, 50/60 Hz, Volts +/- 10%
Lumens to Watts: 2300 lumens is 70 W HPS/PSMH | 3450 or 2900 lumens is 100 W HPS/PSMH | 4850 lumens is 150 W HPS/PSMH | 6076 or 6200 lumens is 175 W PSMH | 9455 lumens is 250 W HPS/PSMH | 11425 lumens is 350 W PSMH | 12850 is 400 W HPS/PSMH
Ambient Temperatures: 2300-2900 lm: -40 °C to +65 °C (-40 °F to +149 °F) | 4850-6200 and 12850 lm: -40 °C to +55 °C (-40 °F to +131 °F) | 9455 and 11425 lm: -40 °C to +50 °C (-40 °F to +122 °F)
Pole Terminal Block: 1 x 8-24 AWG; 1 x 0.75 to 6 mm² (0.0012 to 0.0093 in²)
LED Light Fitting Standard Materials and Finishes: Mounting hoods, bodies and guards are cast copper-free (4/10 of 1% max.) aluminum with electrostatically applied baked grey epoxy-clad finish. All hardware and catch assemblies are stainless steel. Globes are polycarbonate

➡ View our complete range of ATEX Lighting products for Zone 1 & Zone 2 (Zone 21 & 22) hazardous area lighting applications.

Appleton ATX MLEDNA Mercmaster Series (Zones 2 – 21 & 22) LED Light Fittings
Ballast Bodies	Appleton ATX Order Code
2300lm – 120/277 V – 50/60Hz – 1 x M20 cable gland supplied	MLEDNA70P5BU
4850lm – 120/277 V – 50/60Hz – 1 x M20 cable gland supplied	MLEDNA15P5BU
6076lm – 120/277 V – 50/60Hz – 1 x M20 cable gland supplied	MLEDNA17P5BU
9455lm – 120/277 V – 50/60Hz – 1 x M20 cable gland supplied	MLEDNA25P5BU
Appleton ATX MLEDNA Mercmaster Series (Zones 2 – 21 & 22) LED Light Fittings
Mounting Hoods	Appleton ATX Order Code
Ceiling – M20 Entries	KPCM20

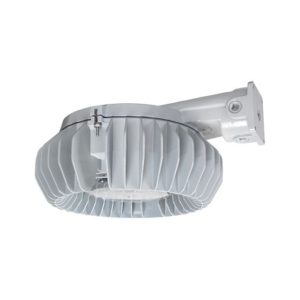

Wall – M20 Entries	KPWBM20
25° Stanchion – NPT 1″ 1/2 hub	KPS150
90° Stanchion – NPT 1″ 1/2 hub	KPST150
3/4″ Ring Bolt	Z00927

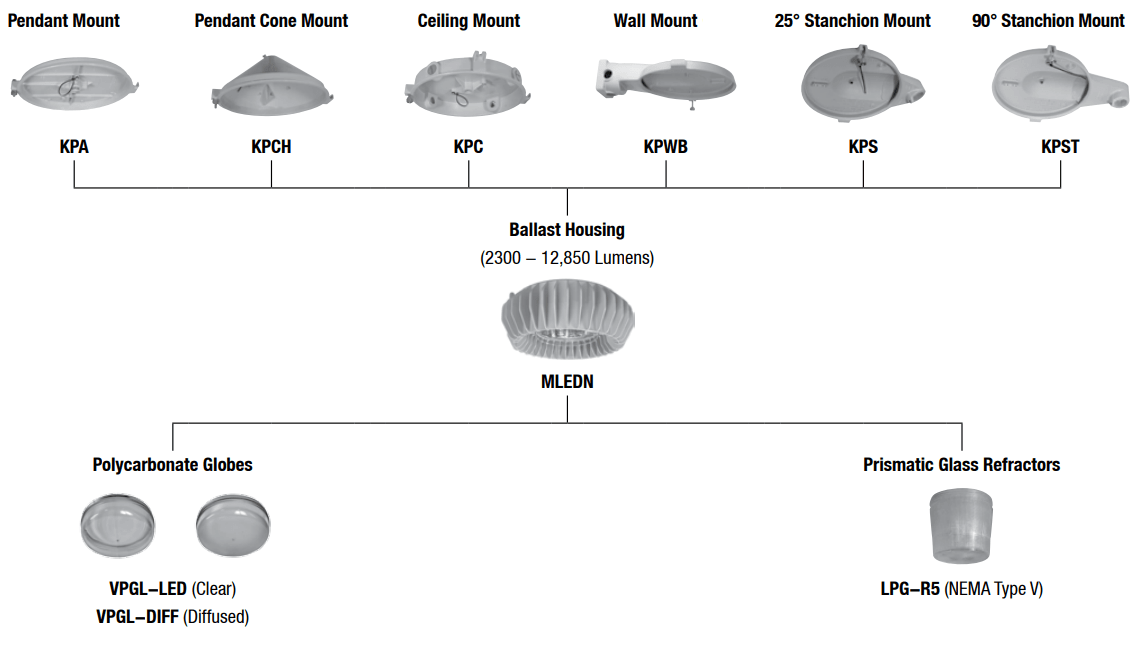

MERCMASTER LIGHT FITTING VARIATIONS

This hazardous area LED light fitting has a flexible and modular design to allow for retrofits and plant expansions to meet many installation requirements. The single-piece, lightweight aluminum body utilise the same six mounting hoods as the Mercmaster III Series. The Mercmaster is available for use with a variety of mounting fittings and fixtures to suit almost any application.

ATEX & IECE x Hazardous Area Certifications and Compliances

ATEX
— Gas: Zone 2
– Conforming to ATEX 94/9/CE: II 3 G
– Type of Explosion Protection: Ex nA IIC Gc
– Temperature class:
• 70 Watts and 100 Watts equivalent: T4 [+40 ºC (+104 ºF)],
T4 [+55 ºC (+131 ºF)], T3 [+65 ºC (+149 ºF)]
• 150 Watts to 175 Watts equivalent: T4 [+40 ºC (+104 ºF)], T4 [+55 ºC (+131 ºF)]
• 250 Watts equivalent: T4 [+40 ºC (+104 ºF)], T4 [+50 ºC (+122 ºF)]
— Dust: Zone 22
– Conforming to ATEX 94/9/CE: II 3 D
– Type of Explosion Protection: Ex tc IIIc Dc
– Surface Temperature:
• 70 Watts and 175 Watts equivalent: T92 ºC (T197.6 ºF)
• 250 Watts equivalent: T79 ºC (T174.2 ºF)
— Ambient Temperature:
– 70 Watts and 100 Watts equivalent: -40 ºC to +65 ºC (-40 ºF to +149 ºF)
– 150 Watts to 175 Watts equivalent: -40 ºC to +55 ºC (-40 ºF to
+131 ºF)
– 250 Watts equivalent: -40 ºC to +50 ºC (-40 ºF to 122 ºF)
— ATEX Certificate: LCIE 11 ATEX 1008, LCIE 14 ATEX 3063
— IECEx Certificate: IECEx LCI 11.0058
— Index of Protection according EN/IEC 60529: IP66
IECEx
— Gas: Zone 2
– Type of Explosion Protection: Ex nA IIC Gc
– Temperature class:
• 70 Watts to 175 Watts equivalent: T4 [+40 ºC (+104 ºF)], T4 [+55 ˚C (+131 ˚F)]
• 250 W equivalent: T4 [+40 ºC (+104 ºF)], T4 [+50 ºC (+122 ºF)]
— Dust: Zone 22
– Type of Explosion Protection: Ex tc IIIc Dc
– Surface Temperature:
• 70 W and 175 W equivalent: T92 ºC (198 ºF)
• 250 W equivalent: T79 ºC (198 ºF)
— Ambient Temperature:
– 70 W and 175 W equivalent: -40 ºC to +55 ˚C (-40 ºF to +131 ºF)
– 250 W equivalent: -40 ºC to +50 ºC (-40 ºF to +122 ºF)
— IECEx Certificate: IECEx LCI 11.0058
— Index of Protection according EN/IEC 60529: IP66
NEC/CEC Related Products
• NEC, Class I, Division 2 photocells for classified use are available, see PCD2 Series.
— Mounting hoods with photocontrols are not rated IP66/67, Type 4X or Marine Outside Type (Salt Water).
EURASEC Certification
• EURASEC N° TC RU C-FR.ГБ05.B.00912
Other Certification
• INMETRO Certificate: BVC12.1522
DesignLights Consortium (for the following models)
• MLEDN15
• MLEDN17
• MLEDN25
• MLEDN35
• MLEDN40
