Appleton ATX PRE316PB Plug | Ex de Increased Safety Plugs & Sockets

Increased Safety Plugs & Sockets| Ex de

ATEX | Zone 1 & 2 Hazardous Areas

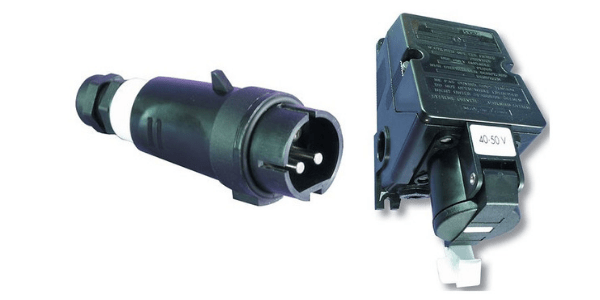

Appleton ATX PRE316PB

ATX PRE Series 16 & 32 Amp Increased Safety plugs and sockets manufactured by Appleton ATX use a pin and sleeve design to deliver safe power to stationary and portable equipment in hazardous areas and those classed as Zone 1 and 2 and Zone 21 and 22. Suitable for use in damp, wet or corrosive environments, ATX PRE plugs and sockets are keyed and colour coded per IEC directives. The sockets are available in wall-mount, flush-mount and mobile versions.

♦ See complete range of ATEX Plugs for hazardous area electrical power distribution at LV – this includes flameproof plugs according to the Ex d Explosion Protection concept.

ATEX plug Specification

• Amperage: 16 Amps
• Number of Pins: 3P (2P + Earth)
• Voltage: 200-250V
• Plug Colour: Blue
• Frequency: 50/60Hz (Hertz)
• Explosion Protection Type: Flameproof & Increased Safety
• Also Fire Resistant Plugs | Fire Resistant Enclosures

PRE316PB Increased Safety plug should be used in conjunction with ATX PRE316RB

plug Features

• Plug and socket system is designed with a safe disconnect mechanism to insure maximum hazardous location protection
• The contact separation is in a flameproof chamber
• The automatic electrical disconnection of each phase is contained in a second flameproof chamber
• Short circuit protection is 20 kA, while normal reference is 10 kA
• Different voltages are color coded for easy identification
• The receptacles are keyed to accept only ATX plugs (other plugs cannot be inserted)
• ATX plugs can be used in non-hazardous IEC 309 sockets
• Operating temperature of -40 °C to +55 °C (-40 °F to +131 °F)
• Used With ATX PRE 16 Amp Increased Safety Socket- PRE316RB
• See also Flameproof & Exd Enclosures

PRE316pB plug Specification Table
