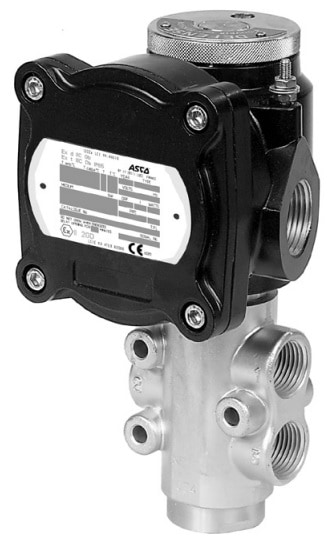

ASCO 126 Solenoid Valves – 1/2 Brass & Stainless Steel, High Flow Pilot Valve

ASCO 126 solenoid valves are 3/2 way direct operated pilot valves.

ASCO 126 Solenoid Valves features

• Brass and stainless steel solenoid valve types
• 3 way solenoid valve with orifice and pipe connections in body
• Solenoid valves with explosionproof operator MB type, intended for use in potentially explosive atmospheres, according to ATEX Directive 2014/34/EU
• No minimum operating pressure required for valve
• Differential Pressure : 0 to 10 bar [1 bar =100 kPa]
• Response Times : 30 – 50 ms

ATEX & IECEx valves are available using ASCO 126 solenoids approved to EN 13463-1 for hazardous area applications.

For complete specification, fluid compatibility, valve selection guide and ordering examples for ASCO 126 solenoid valves please refer to the download.

SOLENOID VALVES

EXPLANATION OF TEMPERATURE RANGE

Valve Temperature Range : the temperature range (TS) of the solenoid valve is determined by the selected sealing material, the temperature range for proper operation of the valve and according to the fluid (eg steam).

Operator Ambient Temperature Range : determined by power level and safety code.

Total Temperature Range : the total temperature of the solenoid valve is determined by both the limitations of the above.

➡ Did you know? T&D are Approved Channel Partners for ASCO Numatics ATEX & IECEx certified solenoid valves for Class I, Division 2 and Zone 1 & Zone 2 hazardous areas.

Data Sheets

• ASCO 126 Solenoid Valves – 1-2 Brass & Stainless Steel, High Flow Pilot Valve
  Download
