ASCO 327 Solenoid Valves – 1/4, Brass & Stainless Steel, Basic Flow Exida Approved Pilot Valve

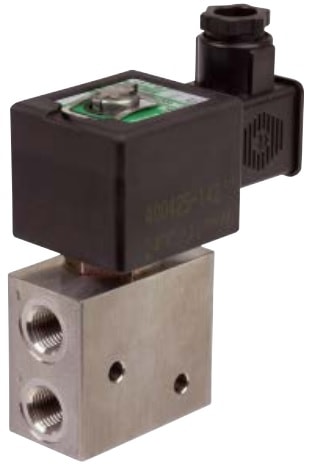

ASCO 327 Solenoid Valve – Pilot Valve.

ASCO 327 solenoid valves are 3/2 way direct operated pilot valves.

ASCO 327 Solenoid Valves features

Brass and stainless steel solenoid valve types
3 way solenoid valve with orifice and pipe connections in body
Solenoid valves handle high pressure 3-way applications
No minimum operating pressure required for valve
Dedicated execution for extreme low ambient temperatures and low power
Differential Pressure : 0 – 10 bar [1 bar = 100kPa]
Maximum Viscosity : 65cST (mm2 /s)
Response Times : 75 – 100 ms

ATEX & IECEx valves are available using ASCO 327 solenoids approved to EN 13463-1 for hazardous area applications.

For complete specification, fluid compatibility, valve selection guide and ordering examples for ASCO 327 solenoid valves please refer to the download.

SOLENOID VALVES

EXPLANATION OF TEMPERATURE RANGE

Valve Temperature Range : the temperature range (TS) of the solenoid valve is determined by the selected sealing material, the temperature range for proper operation of the valve and according to the fluid (eg steam).

Operator Ambient Temperature Range : determined by power level and safety code.

Total Temperature Range : the total temperature of the solenoid valve is determined by both the limitations of the above.

ASCO Numatics Flow Control Distributor

➡ Did you know? T&D are Approved Channel Partners for ASCO Numatics ATEX & IECEx certified solenoid valves for Class I, Division 2 and Zone 1 & Zone 2 hazardous areas.
