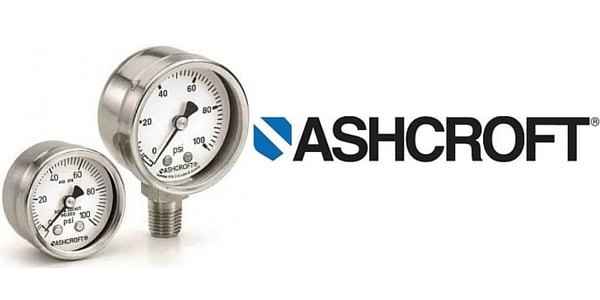

Ashcroft 1008S 40-50mm Pressure Gauge

Ashcroft 1008S 40-50mm Pressure Gauge

Industrial Pressure Gauges – Ashcroft are the leading pressure and temperature instrumentation manufacturer of pressure gauges, test gauges and temperature gauges.

Ashcroft 1008S pressure gauge is used throughout process and industrial markets globally and is known for it’s reliability, performance and safety.

The Ashcroft 1008S pressure gauge has been designed to withstand harsh working conditions and measure a wide range of pressure ratings.

Ashcroft 1008S 40-50mm Pressure Gauge – Applications

  • Pumps & Compressors
  • OEM Equipment

The Ashcroft 1008S pressure gauge should ideally be used in temperatures ranging from –30 to +65°C and at very low temperatures standard pressure gauges may display slow pointer response times.

Ashcroft 1008S 40-50mm Pressure Gauge – Features

  • True Zeroreduces reading errors by using a “zero box” instead of conventional dial pins (posts); this ensures product safety, integrity and system control
  • FlutterGuard(option) reduces movement wear and eliminates pointer flutter;extends product life and allows easy gauge readability
  • Accuracy: ±3-2-3% of span (ASME, Grade B)
  • Pressure Ranges: Vacuum, compound, 5,000 psi
  • Dial size: 40mm (1 1/2″) and 50mm (2″); stainless steel case
  • 316L stainless steel tube/socket
  • NEMA 3/IP54 (vented)
  • Mounting: direct, u-clamp or front flange
  • Dry or liquid case versions

Ashcroft 1008S Pressure Gauge – Product Specifications

Ashcroft Model Number Ashcroft 1008S
Accuracy ASME 3-2-3% Grade B
Ranges Vac – 5,000 psi and compound
Connections 40mm: 1/8″ and ¼” NPT only center back, and lower. 50mm: ¼” NPT center back, and lower standard
Ring 304SS crimped
Dial Black figures on white background, Aluminium
Dial Size 40mm, 500mm diameter
Case 304SS
Window Glass
Pointer Black, aluminium
Movement Stainless steel, gear type
Bourbon Tube 316 SS Bourdon tube and socket
Socket 316 SS
Protection Nema 3 / IP54
Mounting Stem mounting or panel mounting with U-Clamp (XUC) or Front Flange (XFF)
Ambient Temperature -40ºF to 250ºF dry, +20ºF to 180ºF glycerin filled (based on standard glass window)

ASHCROFT 1008S – HOW TO ORDER

Here is a typical ordering example for an Ashcroft 1008S pressure gauge  – for technical support, specification and sales contact T&D.

Ashcroft Gauge : 50-1008-S-(L)-02B-XFF-100#

  • Gauge Dial Size : 40mm (40), 50mm) (50)
  • Case Type Number : 1008 (1008)
  • Tube and Socket Material : 316SS (S)
  • Liquid Filled : (glycerin) leave blank if dry (L)
  • Connection Size/Location : 1/4 Lower Back (02B)
  • Option : (XFF) Flush panel flange, (XUC) Panel U-clamp (XFF)
  • Gauge Range : 0/100 psi (100#)
