Ashcroft 1020 Christmas Tree Pressure Gauge
Process Pressure Gauges – Ashcroft are the leading pressure and temperature instrumentation manufacturer of pressure gauges, test gauges and temperature gauges

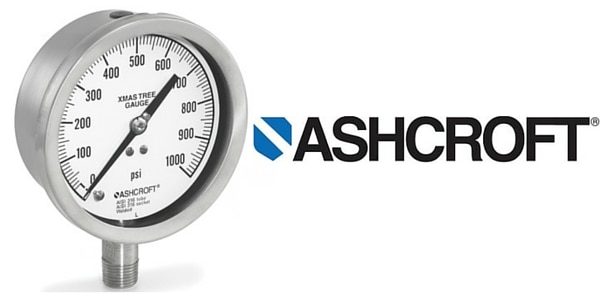

Ashcroft 1020 Christmas Tree pressure gauge is used throughout process and industrial markets globally and is known for it’s reliability, performance and safety. The Ashcroft 1020 pressure gauge has been designed to withstand harsh working conditions and measure a wide range of pressure ratings.
Ashcroft 1020 Christmas Tree Pressure Gauge – Applications
- Offshore Rigs
- Wellheads
- Oil & Gas
The Ashcroft 1020 pressure gauge should ideally be used in temperatures ranging from –30 to +65°C and at very low temperatures standard pressure gauges may display slow pointer response times.
Ashcroft 1020 Christmas Tree Pressure Gauge – Features
- Stainless steel movement with Teflon®-coated pinion and shaft
- Accuracy: ±1% full scale (ASME B40.100 Grade 1A)
- Pressure Ranges: 1000 to 20,000 psi
- Dial size: 4-1/2″
- Bourdon tube / socket: 316L stainless steel
- Case: stainless steel
Ashcroft 1020 Pressure Gauge – Product Specifications
| Ashcroft Model Number | Ashcroft 1020 |
| Accuracy | ±1% full scale (Grade 1A, ASME B40.100) |
| Ranges | 1,000 – 20,000 psi |
| Ring Type | Bayonet lock |
| Dial | Aluminium, white background, black figures and intervals |
| Dial Size | 4 ½” diameter |
| Case Material | Stainless steel |
| Weather Protection | Dry Case: IP54 |
| Window | Glass |
| Pointer | Micrometer adjustable |
| Movement | SS, Teflon coated pinion and sector shaft, rotary geared |
| Bourbon Tube and Socket | 316 SS |
| Connection Size | ½” NPT, ¼” NPT optional |
| Connection Location | Lower |
| Mounting | Stem or surface |
ASHCROFT 1020– HOW TO ORDER
Here is a typical ordering example for an Ashcroft 1020 pressure gauge – for technical support, specification and sales contact T&D.
Ashcroft Gauge : 45-1020-S-04L-1000#
- Gauge Dial Size : 4 1 ⁄2˝(45)
- Case Type Number : 1020 (1020)
- Tube and Socket Material : (S)
- Connection Size/Location : 1 ⁄4 (02), 1 ⁄2 (04) Lower (L) only (04L)
- Gauge Range : 1000 psi (1000#)
Pressure Gauges – Ashcroft process gauges can be used to measure pressure on fire protection sprinkler pipework systems.
