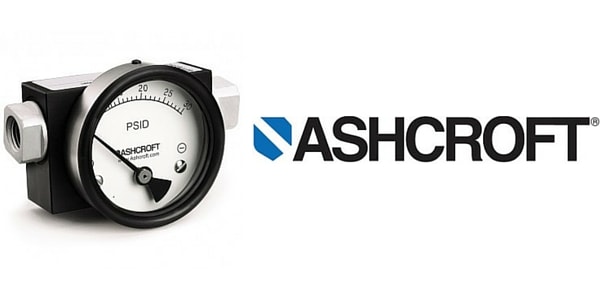

Ashcroft 1130 Differential Pressure Gauge
Differential Pressure Gauges – Ashcroft are the leading pressure and temperature instrumentation manufacturer of pressure gauges, test gauges and temperature gauges.
Ashcroft 1130 differential pressure gauge is used throughout process and industrial markets globally and is known for it’s reliability, performance and safety.
The Ashcroft 1130 pressure gauge has been designed to withstand harsh working conditions and measure a wide range of pressure ratings.
Ashcroft 1130 Differential Pressure Gauge – Applications
- Filtration Monitoring
- Leak Detection
- Clean Room Positive Pressure (Low DP)
The Ashcroft 1130 pressure gauge should ideally be used in temperatures ranging from –30 to +65°C and at very low temperatures standard pressure gauges may display slow pointer response times.
Ashcroft 1130 Differential Pressure Gauge – Features
- High static pressure capability (up to 6,000 psi)
- Reed switches (optional) for direct system control
- Superior magnets for smoother pointer motion
- Accuracy: ±2% (ascending pressure)
- Pressure Ranges: 0-5 thru 0-150 psid
- Dial size: 2″, 2 1/2″, 3 1/2″, 4″, 4 1/2″ and 6″
- Case: stainless steel
- Body: aluminum, brass or stainless steel
- Wetted Material: body material, Teflon®, ceramic and various O-ring materials
Ashcroft 1130 Pressure Gauge – Product Specifications
| Ashcroft Model Number | Ashcroft 1130 |
| Accuracy | ±2% Ascending |
| Migration | Minor |
| Ranges | 0-5 psi to 150 psi |
| Maximum Static Pressure | 3000 psi (6000 psi for SS) |
| Actuator | Piston |
| Connection Size | ¼” NPT (25) |
| Connection Location | In-Line (S), Lower (L), Back (B) |
| Body Materials | Aluminium (F), brass (A), stainless steel (S) |
| Dial Size | 2, 2½”, 3½”, 4″, 4½”, 6″ diameter |
| Case | Stainless steel |
| Window | Glass |
| O-Rings/Diaphragm | Buna-N |
| Maximum Process Temperature | 175ºF/80ºC |
ASHCROFT 1130 – HOW TO ORDER
Here is a typical ordering example for an Ashcroft 1130 pressure gauge – for technical support, specification and sales contact T&D.
Ashcroft Gauge 25-1130-FD-25S-30#
- Gauge Dial Size : 2,˝ 21 ⁄2,˝ 31 ⁄2,˝ 4,˝ 41 ⁄2,˝ & 6˝ (25)
- Case Type Number : 1130 (1130)
- Body Type : (FD)
- Connection Size/Location : 1 ⁄4 NPTF (25): In-line (S), Lower (L), Back (B) (25S)
- Gauge Range : 30 psi (30#)
Pressure Gauges – Ashcroft differential gauges can be used to measure pressure on fire protection sprinkler pipework systems.
