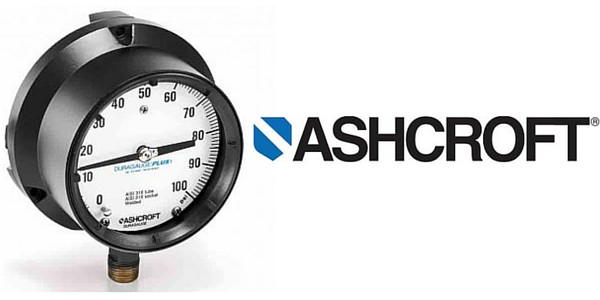

Ashcroft 1379 Duragauge Pressure Gauge
Process Pressure Gauges – Ashcroft are the leading pressure and temperature instrumentation manufacturer of pressure gauges, test gauges and temperature gauges.
Ashcroft 1379 Duragauge Pressure Gauge is used throughout process and industrial markets globally and is known for it’s reliability, performance and safety.
The Ashcroft 1379 pressure gauge has been designed to ensure high standards and material integrity making this pressure gauge ideal for multiple applications.
Ashcroft 1379 Duragauge Pressure Gauge – Applications
- Refineries
- Chemical & Petrochemical Plants
- Water & Wastewater Plants
- Mining & Metals
The Ashcroft 1379 pressure gauge should ideally be used in temperatures ranging from –30 to +65°C and at very low temperatures standard pressure gauges may display slow pointer response times.
Ashcroft 1379 Duragauge® Pressure Gauge – Features
- Wide selection of Bourdon tube materials, pressure connections and pressure ranges
- Solid-front case design for safety
- Epoxy-coated system offers superior corrosion resistance
- Patented Duratube™ and “Round Cap Tip” Bourdon tube construction controls stresses for longer life
- Teflon®-coated, 400 stainless steel movement
- PLUS!™ Performance (option) dampens vibration, shock and pulsation effects; provides liquid-fill performance in a dry gauge

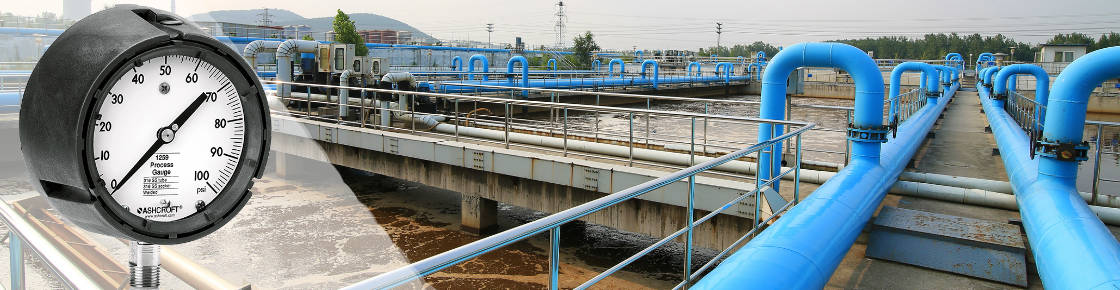

Ashcroft 1379 Duragauge Pressure Gauge For Wasterwater Industry
Ashcroft 1379 Duragauge Pressure Gauge – Product Specifications
| Ashcroft Model Number | Ashcroft 1379 |
| Accuracy | 1 ⁄2% full scale (Grade 2A, ASME B40.100) |
| Ranges | Vacuum – 100,000 psi |
| Ring | 41⁄2˝ & 6˝ Dial: Threaded reinforced black polypropylene 81⁄2˝ Dial: Hinged, aluminum, black epoxy coated |
| Dial Size | 41 ⁄2˝, 6˝, 81 ⁄2˝ diameter |
| Case Material | Black, aluminum, solid front |
| Weather Protection | Dry Case: IP54 Liquid filled or hermetically sealed case: IP65 |
| Window | Glass |
| Pointer | Micrometer adjustable |
| Movement | Rotary, 400 SS, Teflon® coated pinion gear and segment |
| Bourbon Tube & Socket | C510 Phos. bronze/brass 316L SS/Steel (R)(2) 316L SS/316L SS (S)(2) K Monel/ Monel (P)(2) Inconel 718 (WW)(2)(3) |
ASHCROFT 1379 – How To Order
Here is a typical ordering example for an Ashcroft 1379 pressure gauge – for technical support, specification and sales contact T&D.
Ashcroft Gauge 45-1379-S-S-04-L-XEPNH-100-#
- Gauge Dial Size : 4 1/2″ (45)
- Case Type Number : 1379 (1379)
- System (Tube & Socket): 316L (S)
- Case Design Solid Front : Dry (IP54) (S)
- Connection Size : 1/2″ Male (04)
- Connection Location : Lower (L)
- Options (X Variations): Maximum pointer, adjustable (EP), St. St. Wired Tag (NH)
- Gauge Range : 100 psi (100)
- Engineering Units: PSI (#)
Pressure Gauges – Ashcroft process gauges can be used to measure pressure on fire protection sprinkler pipework systems.
ASHCROFT
Watch how Ashcroft pressure gauges and temperature instruments protect people in all industries and every environment.
ASHCROFT & THE WATER INDUSTRY
Ashcroft gauges monitor pressure in filtration, flow and level applications including pumps, control systems, filters and heat exchangers – providing process pressure measurement for hydrostatic pressure, filter monitoring or regulating flow and deionized water.
T&D service the global water utility industry with Electrical, Mechanical, Process & Instrumentation Equipment – this includes Water Metering, Heat Tracing, Gas Detection and Process Heating. Image : Mott MacDonald
Hazardous Areas
Ashcroft 1379 Duragauge Pressure Gauge Data Sheet
