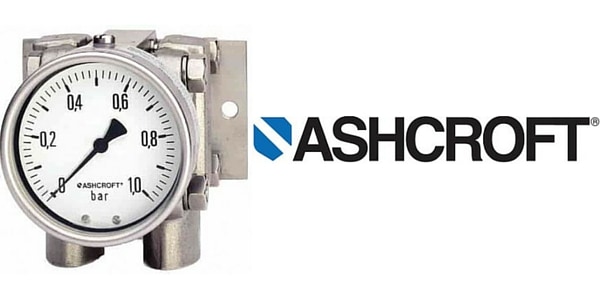

Ashcroft 5503 Differential Pressure Gauge
Process Pressure Gauges – Ashcroft are the leading pressure and temperature instrumentation manufacturer of pressure gauges, test gauges and temperature gauges.
Ashcroft 5503 Differential pressure gauge is used throughout process and industrial markets globally and is known for it’s reliability, performance and safety.
The Ashcroft 5503 pressure gauge has been designed to withstand harsh working conditions and measure a wide range of pressure ratings.
Ashcroft 5503 Differential Pressure Gauge – Applications
- Refineries
- Chemical & Petrochemical Plants
- Water & Wastewater Plants
- Mining & Materials Plants
The Ashcroft 5503 pressure gauge should ideally be used in temperatures ranging from –30 to +65°C and at very low temperatures standard pressure gauges may display slow pointer response times.
Ashcroft 5503 Differential Pressure Gauge – Features
- Robust housing
- Select wetted materials
- High static pressure limits
- External zero adjustment
- Flow measurement dial (optional)
- Electric contacts (optional) for process monitoring and control
- NACE compliant (optional)
- Accuracy: ±1.6% full scale
- Pressure Ranges: 10″ IWD to 600 psid
- Dial size: 4″ (100 mm) and 6″ (160 mm)
- Case: stainless steel; open front

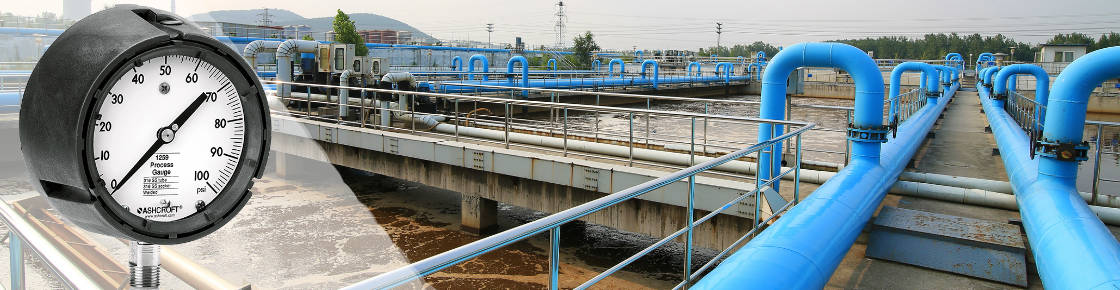

Ashcroft 5503 Differential Pressure Gauge For Wasterwater Industry
Ashcroft 5503 Pressure Gauge – Product Specifications
| Ashcroft Model Number | Ashcroft 5503 |
| Accuracy | ±1.6% full scale |
| Ranges | 0-30 IWD (inches of water differential) to 300 psid |
| Static Pressure | 1450 psi standard. Optional – 3625 psi ranges < 10 psid, 5801 psi ranges > 10 psid |
| Ring Type | Bayonet lock black polypropylene |
| Dial | White painted aluminium |
| Dial Size | 4″ or 6″ diameter |
| Diaphragm Material | 316 Stainless steel for ranges of 5 psi and below. High strength cobalt alloy (Duratherm 600) for ranges of 10 psi and above. |
| Housing Material | 316 SS with a Viton 0-ring |
| Window | Shatterproof Glass |
| Pointer | Black painted aluminium with external adjust feature standard (to 25% of range) |
| Mounting | Stem, wall or pipe |
| Connection Size | ¼”, ½” NPT |
| Purge & Bleed Connection | Standard on top of each pressure chamber (G1/8 with plug) |
| Connection Location | Lower |
ASHCROFT 5503 – How To Order
Here is a typical ordering example for an Ashcroft 5503 pressure gauge – for technical support, specification and sales contact T&D.
Ashcroft Gauge 10-5503-S-S-04-L-XNH-100#
- Gauge Dial Size : 100mm (10)
- Case Type Number : 5503 (5503)
- Diaphragm Material: 316 SS (S)
- Housing Material: 316 SS (S)
- Connection Size : 1/2″ (04)
- Connection Location : Lower (L)
- Variations: (XNH)
- Gauge Range : 100 psi (100#)
