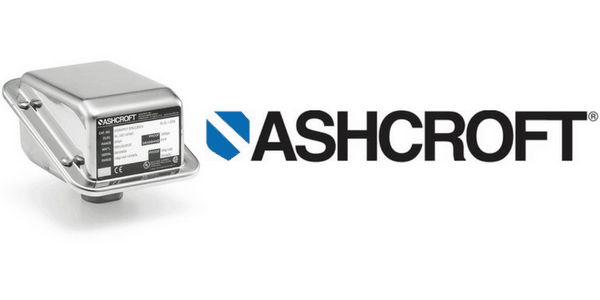

Ashcroft GP-Series NEMA 4 Pressure Switch
Ashcroft GP-Series NEMA 4 pressure switches are designed for pressure control in tough applications requiring a 316L stainless steel enclosure and is used throughout general process and industrial markets globally due to the switch’s reliability, performance and safety.
The Ashcroft GP-Series pressure switch has been designed to be customised as an ideal solution for this type of pressure measurement.
Ashcroft GP-Series NEMA 4 Pressure Switch – Applications
- Offshore oil rigs
- Chemical and petrochemical plants
- Pulp and papermills
- Steel mills
- Power plants
- Water and sewage-treatment plants
- Pumps, Compressors and Turbines
- Dairies and Breweries
- Boilers and Burners
- Reverse Osmosis Systems
- Filters and Presses
- Paint Spraying Equipment
- Specialized OEM Equipment
- Pharmaceutical Plants
The Ashcroft GP-Series pressure switch should ideally be used in temperatures ranging from –19 to +65°C.
Ashcroft GP-Series NEMA 4 Pressure Switch – Features
- Wide selection of switch elements and wetted materials
- Choice of process connections
- Fixed or adjustable deadbands; adjustable setpoints from 15%-100% of range
- Accuracy: ±1.00% full scale
- NEMA 4X (IP65) 316L stainless steel enclosure
- Single or dual set points
- Pressure ranges: vacuum to 3,000 psi
Ashcroft GP-Series NEMA 4 Pressure Switch – Product Specifications
| Ashcroft Model Number | Ashcroft GP-Series NEMA 4 |
| Setpoint | Factory set or field adjustable |
| Setpoint Repeatability | ±1% of full range (Additional setpoint shift of ±1% of range per 50 °F from initial setpoint set at 70 °F typical) |
| Diaphragm | Buna N, Viton, Teflon, SS, Monel |
| Enclosure Material | NEMA 4, 4X L-Series: Epoxy Coated, Die Cast Aluminum, IP66 G-Series: 316 SS IP65 |
| Pressure Connection | 1/4 NPT Female Standard on Pressure and D/P, 1/4 NPT Female and 1/2 NPT Male Combination Pressure Only, 1/2 NPT Female |
| Ambient Temperature Range | –20°F to 150°F (–19 °C to 65 °C) All units calibrated at 70 °F |
| Process Temperature | 0 °F to 150 °F (Buna N or Teflon diaphragm) 20 °F to 300 °F (Viton diaphragm) 0°F to 300°F (SS or Monel diaphragm) |
| Pressure Ranges | Pressure: Vac-3000# Differential: 0-600#D |
| Approvals | UL CSA CE |
ASHCROFT GP-Series NEMA 4 – How To Order
Here is a typical ordering example for an Ashcroft GP-Series NEMA 4 pressure switch  – for technical support, specification and sales contact T&D.
Ashcroft Switch GPD N4 GG B 25 XK3 30PSI
- Function: Pressure control, two independently adjustable setpoints, fixed deadband (GPD)
- Enclosure : NEMA 4, 4X G-Series: 316 SS IP65 (N4)
- Switch Elements For GPD/LPD, GPS/LPS, LDD/GDD & LDS/GDS Controls : General purpose, 15A, 125/250/480 Vac, 1/2A, 125 Vdc, 1/4A, 250 Vdc (GG)
- Actuator Seal : Buna N (B)
- Pressure Connection:Â 1/4 NPT Female Standard on Pressure and D/P (25)
- Options: Pilot Lights  (XP3)
- Switch Range : 30 psi (30PSI)
