ATEX Handheld Computer Zone 2 Hazardous Area – Ecom CK7X ATEX PDA

*****THIS PRODUCT HAS BEEN DISCONTINUED BY THE MANUFACTURER****

Ecom CN7X ATEX PDA

Zone 2 & Zone 22 Hazardous Area Locations

ATEX Certification
II 3G Ex ic IIC T4 Gc
II 3D Ex ic IIIB T130°C Dc IP54

Ecom CN7X ATEX hazardous area PDA, or mobile computer, will give you extra flexibility and the ability to re-deploy staff without consideration to the tools needed to get a job done. When workload demands shift unexpectedly, this is crucial when working in Zone 2 hazardous areas.

Ecom CK7X ATEX enables workers to quickly and confidently transition to tasks that require near or far canning, speech, voice, and image capture, without wasting time finding and re-orienting themselves on unfamiliar devices.

ATEX HANDHELD COMPUTER

Ecom CN7X ATEX PDA Key Features

Ecom CK7X ATEX handheld computer provides safe mobile communications for hazardous area workers:

ATEX / IECEx certified (Zone 2/22)
Industry’s fastest imaging engine delivering superior motion tolerance, laser aiming system, and optimized scanning angle for maximum productivity
On-board diagnostics and INcontrol Managed Services provide device health visibility
Best in class battery life for longer run time

Ecom CK70 ATEX Hazardous Area Zone 2 Mobile Computer (PDA)

12% smaller and lighter than leading devices in the ultra-rugged class
Flexible radio technology provides optimal network coverage and a superior solution for implementing least cost routing strategies

Ecom CK71 ATEX Hazardous Area Zone 2 Mobile Computer (PDA)

31% smaller and lighter than leading devices in the ultra rugged class
Dual band 802.11n radio for pervasive wireless coverage

ATEX Handheld Computer

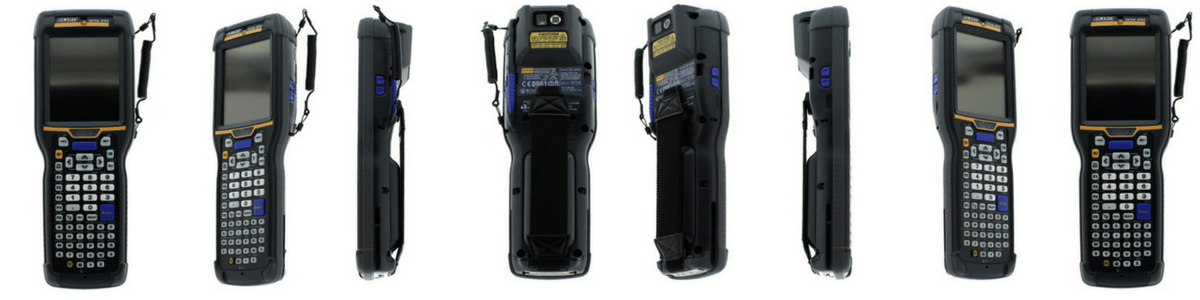

Ecom CK7X ATEX PDA

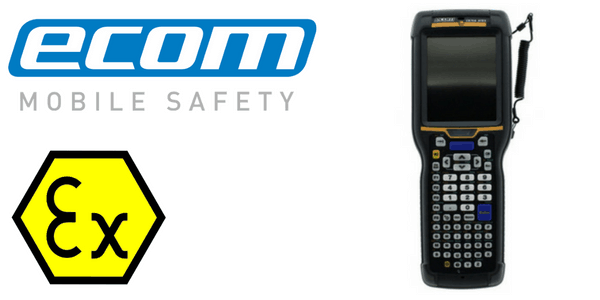

ATEX Handheld computer ZONE 2 HAZARDOUS AREA

ECOM CN7X ATEX PDA Technical Data

Ecom CN70X ATEX PDA – Connectivity
CK70 ATEX Dimensions with battery	L x W x D: 23.7 x 8.0 x 4.3 cm (9.33 x 3.16 x 1.69 in) Weight: 562 g (19 oz) with battery Width: grip area 6.42 cm (2.53 in)
CK71 ATEX Dimensions with battery	L x W x D: 23.7 x 8.0 x 5.0 cm (9.33 x 3.16 x 1.98 in) Weight: 584 g (19.75 oz) with battery Width: grip area 6.42 cm (2.53 in)
Operating Temperature	-20° C to +50° C (-4° F to +122° F)
Storage Temperature	-30° C to +70° C (-22° F to +158° F)
Charging Temperature	+5° C to +35° C (41° F to 95° F)
Relative Humidity	Non-condensing, 95%
Rain & Dust Resistance	IP67
Drop Specification	2.4 m (8 ft.) to concrete per MIL-STD 810G, 1.8 m (6 ft.) to concrete across operating temperature range per MIL-STD 810G 2,000 tumbles at 1m per IEC 60068-2-32 specification
Electrostatic Discharge	+/- 15 kV air discharge; +/- 8 kV direct discharge
Battery Pack	3.7 V, 5200 mAh; IEEE 1725 compliant, Li-Ion, removable, rechargeable
Operating System	Microsoft© Windows© Embedded Handheld 6.5.3
Processor	Texas Instruments 1GHz OMAP3 multi-engine processor architecture
Memory and Storage	RAM: 512 MB ROM: 1 GB Flash Customer-accessible microSD slot for removable memory cards up to 32 GB
Display	• 8.9 cm (3.5 in) Transmissive VGA • 480 x 640 pixels • 65,536 (16 bit RGB) Colors • High-Durability Touch Screen • LED Backlight • Ambient Light Sensor
Standard Communications	USB – Full Speed 2.0 Host©, USB – Full Speed 2.0 Client© IrDA
Device Management	Intermec SmartSystems™ support includes ScanNGo provisioning for use alone or with device management software from Intermec ISVs
Device Health Monitoring	Remote access requires SmartSystem Management option
Application Development	Intermec Developer Library
Imaging Solutions	Intermec Shipment Address Verification (SAV) and Mobile Document Imaging (MDI) are compatible, licensed and sold separately
Web Browsing	Intermec HTML5 Browser
Data Management	Skynax® Mobile Communications
Wireless LAN	IEEE® 802.11 a/b/g/n Dual Band WLAN
Security	WiFi certified for WPA and WPA2, WAPI certified
Authentication	802.1x
Cisco Compatibility	CCXv4
Encryption	WEP (64 or 128 bit), AES, TKIP
Wireless PAN	BT Class II, Version 2.1+EDR
Operating channels	0 to 78 (2402-2480 MHz)
Data Rates	1, 2, 3 Mbps
Antenna	Internal
Accelerometer	Embedded accelerometer enables automatic or application-specific features such as screen rotation or system suspend
Audio Support	Supports VoIP / Speech recognition / Push-to-talk applications; front and rear speakers; rear speaker >80 dB at 40 cm (15.7 in); Front receiver and front panel microphone for handset audio communication and audio recording; Wireless Bluetooth headset support; Wired headset support via snap on adapter
Integrated Scanner Options	EV12 linear Imager with laser-like aimer; Capable of scanning 1D barcodes at standard range EA30 high performance motion-tolerant 2D Imager; white LED illumination;red laser aimer optimized for all lighting conditions; Capable of scanning all common 1D and 2D barcodes; 1D as small as 5 mil;PDF as small as 6.6 mil; Data Matrix as small as 7.5 mil;and standard UPC codes from distances up to 33 cm (13 in) EX25 near/far 2D Imager; Capable of scanning 1D and 2D barcodes from 15.2 cm to 15.2 m (6 in to 50 ft)
Integrated Camera Option	5 Megapixel auto focus color camera with LED flash

ATEX Handheld Computer Zone 2 Hazardous Area – Ecom CK7X ATEX PDA

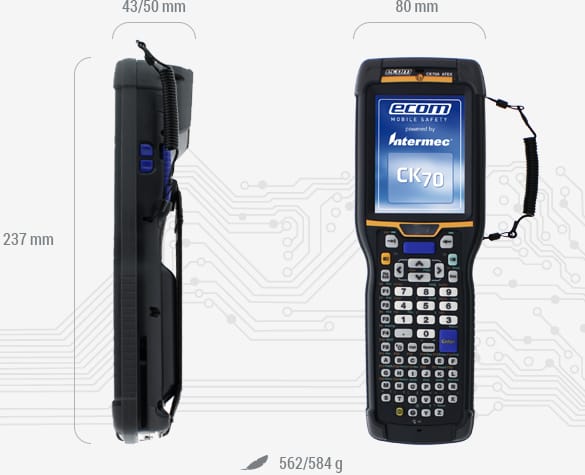

Ecom CN7X ATEX PDA – Dimensions

Hazardous Area INTERNATIONAL Certifications

Ecom CN7X ATEX PDA is ATEX certified to most international hazardous area certification bodies:

ATEX (Europe)

II 3G Ex ic IIC T4 Gc
II 3D Ex ic IIIB T130°C Dc IP54

T&D are Main Distributors for the complete range of Ecom Hazardous Area Mobile Communications & Computers – this includes mobile smartphones, tablets and handheld computers.
