ATEX Light Fittings | Zone 1 SPARTAN Linear Wildlife Friendly Amber Light

ATEX Light Fittings Zone 1 SPARTAN Linear Wildlife Friendly Amber Light

ATEX Light Fittings | Zone 1 SPARTAN Linear Wildlife Friendly Amber Light

ATEX Light Fittings

Wildlife Friendly Amber Light | Linear Light Fitting Zone 1 & Zone 21 Up To 6,130 Lumens

Zone 1 Light Fittings ATEX, UKEX & IEC Ex Rated for Gas & Dust Explosive Atmospheres

Linear Generation II | UKCA Approved

SPARTAN Wildlife Friendly Linear Generation II range of Zone 1 light fittings form part of the ATEX Lighting range manufactured by Raytec and are designed for new hazardous area installations or to retrofit existing fluorescent installations near hazardous coastal facilities, or nature reserves in potentially explosive atmospheres. It uses a warmer wavelength of LED, avoiding the dangers associated with wildlife wandering towards blue-white light.

Using Raytec’s field-proven, long-life LED technology, the WL84 & WL168 Standard & Emergency Linear is globally certified for all Zone 1 applications.

The ‘Intelligent Emergency’ variant also self-tests the emergency battery to proactively monitor and maintain the overall health of the luminaire and communicate via a tri- colour indicator.

Hazardous Area Rating: Zone 1 – Gas & Dust

Zone 1 Gas

  • II 2 G D
  • Ex eb mb IIC T4 Gb
  • Ta= -40°C to+60°C
  • (-20°C to +50°C for emergency variants)

Hazardous Area T Rating – T4 (T6 available on request)

Zone 21 Dust

  • Ex tb IIIC T80OC Db
  • Ta= -40°C to+60°C
  • (-20°C to +50°C for emergency variants)

The overall dimensions, fixing centres and gland entries of the hazardous area lighting are compatible with common 2x18W fluorescents (WL84 Standard & Emergency) & 2x36W fluorescents (WL168 Standard & Emergency), with lumen output and light distribution also offering a direct replacement.

CoolXtrude™ thermal management technology ensures a lifetime of 10 years+, while providing a lumen output of up to 3,065 delivered lumens (WL84) and to up 6,130 delivered lumens. (WL168). All SPARTAN luminaires come with an industry leading 5 year warranty.

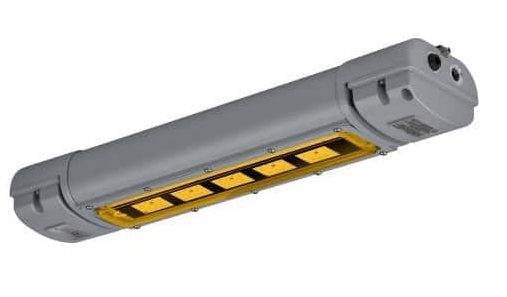

Raytec Spartan Wildlife Friendly Linear WL84 Zone 1 Hazardous Area

Raytec Spartan Wildlife Friendly Linear WL84 Zone 1 Hazardous Area

Zone 1 Light Fittings

Features & Benefits

ATEX Light Fittings

ATEX Light Fittings

  • Raytec Part Numbers – SPX-WL84-4K-A , SPX-WL84-4K-A-EMX25, SPX-WL168-4K-A & SPX-WL168-4K-A-EMX25
  • ATEX & IEC Ex approved – Zone 1 (Gas) & Zone 21 (Dust)
  • UKCA approved
  • Ultra Long Life Amber LED
  • High Lumen Output LED
  • Fully Retrofittable
  • Easy Installation and Maintenance
  • Emergency Variants
  • Wide Operating Temp -40° to +60°  (-20° to +50° emergency variants)
  • Zone 2 Variants available
  • 5 Year Warranty
  • UK Designed and Manufactured
Raytec Spartan Wildlife Friendly Linear Emergency WL168  Zone 1 Hazardous Area

Raytec Spartan Wildlife Friendly Linear Emergency WL168  Zone 1 Hazardous Area

Raytec SPARTAN Light Fittings

Technical Specification

Certification: ATEX and IEC Ex rated for Zone 1 and 21 Gas and Dust. UKCA approved.
Beam Angles: Symmetrical and Asymmetrical optics
Input: Mains Voltage 110-254V AC only
Low Voltage Option 18-48V AC/ 18-69V DC and Extra Low Voltage Option 12V AC/DC (Standard Version Only)
Consumption: WL84 Standard 24W
WL84 Emergency 32W
WL168 Standard 49W
WL168 Emergency 56W
LED Type: Platinum SMT LEDs
Number of LEDs: 80 (WL84 Standard & Emergency) 160 (WL168 Standard & Emergency)
Wavelength:  600nm
IP Rating: IP66 and IP67
Temperature Range: -40°C to +60°C (-20°C to +50°C for emergency variants)



Zone 1 Light Fittings Product Codes

SPARTAN Zone 1/21 ATEX and IEC Ex LED Wildlife Friendly Linear Luminaires
SPARTAN Zone 1/21 Wildlife Friendly Linear WL84
SPX-WL84-4K-A SPARTAN Wildlife Friendly Linear 80 LED, Amber-Light, Zone 1/21 (2x18W / 2ft retrofit)
SPX-WL84-4K-A-EMX25 SPARTAN Wildlife Friendly Linear 80 LED, Amber-Light, Zone 1/21 –  Intelligent Emergency variant (25% Output) (2x18W / 2ft retrofit)
SPARTAN Zone 1/21 Wildlife Friendly Linear WL168
SPX-WL168-4K-A SPARTAN Wildlife Friendly Linear 160 LED, Amber-Light, Zone 1/21 (2x36W / 4ft retrofit)
SPX-WL168-4K-A-EMX25 SPARTAN Wildlife Friendly Linear 160 LED, Amber-Light, Zone 1/21 –  Intelligent Emergency variant (25% Output) (2x36W / 4ft retrofit)
ATEX Lighting Hazardous Area Lighting Zone 1 Zone 2 ATEX

ATEX Lighting manufactured by Raytec for use in Zone 1 and Zone 2 hazardous areas – this includes floodlights, linear light fittings, bulkheads and high bay lighting for explosion protection concepts including Ex d Flameproof and Ex e Explosion Proof applications.
