ATEX Light Fittings | Zone 1 SPARTAN Linear Essential 3,065 Lumens Loop In Loop Out

ATEX Light Fittings Zone 1 SPARTAN Linear Essential 3,065 Lumens Loop In Loop Ou

ATEX Light Fittings Zone 1 SPARTAN Linear Essential 3,065 Lumens Loop In Loop Out

ATEX Light Fittings

Raytec WL84-LL | Linear Light Fitting Zone 1 & Zone 21 3,065 Lumens Loop In Loop Out

Zone 1 Light Fittings ATEX, UKEX & IEC Ex Rated for Gas & Dust Explosive Atmospheres

Linear Generation II | UKCA Approved

SPARTAN Linear Generation II range of Zone 1 light fittings form part of the ATEX Lighting range manufactured by Raytec and are designed for new hazardous area installations or to retrofit existing fluorescent installations which require high performance, high reliability and white-light illumination in potentially explosive atmospheres.

The WL84-LL Linear Essential light fittings are globally certified to Zone 1 offering long-life LED technology.

Hazardous Area Rating: Zone 1 – Gas & Dust

Zone 1 Gas

  • II 2 G D
  • Ex eb mb IIC T4 Gb
  • Ta= -40°C to+60°C

Hazardous Area T Rating – T4 (T6 available on request)

Zone 21 Dust

  • Ex tb IIIC T80OC Db
  • Ta= -40°C to+60°C

The overall dimensions, fixing centres and gland entries of the hazardous area lighting are compatible with common 2x18W fluorescents, with lumen output and light distribution also offering a direct replacement.

CoolXtrude™ thermal management technology ensures a lifetime of 10 years+ while providing a high lumen output of up to 3,065 delivered lumens. All SPARTAN lighting comes with an industry leading 5 year warranty as standard.

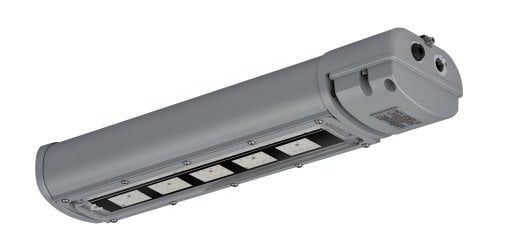

Raytec Spartan Linear WL84-LL Zone 1 Hazardous Area 3,065 Lumens

Raytec Spartan Linear WL84-LL Zone 1 Hazardous Area 3,065 Lumens

Zone 1 Light Fittings

Features & Benefits

ATEX Light Fittings

ATEX Light Fittings

  • Raytec Part Number – SPX-WL84-LL
  • ATEX & IEC Ex approved – Zone 1 (Gas) & Zone 21 (Dust)
  • UKCA approved
  • Ultra Long Life LED
  • High Lumen Output LED
  • Fully Retrofittable
  • Easy Installation and Maintenance
  • Wide Operating Temp -40° to +60°
  • Zone 2 Variants available
  • 5 Year Warranty
  • UK Designed and Manufactured

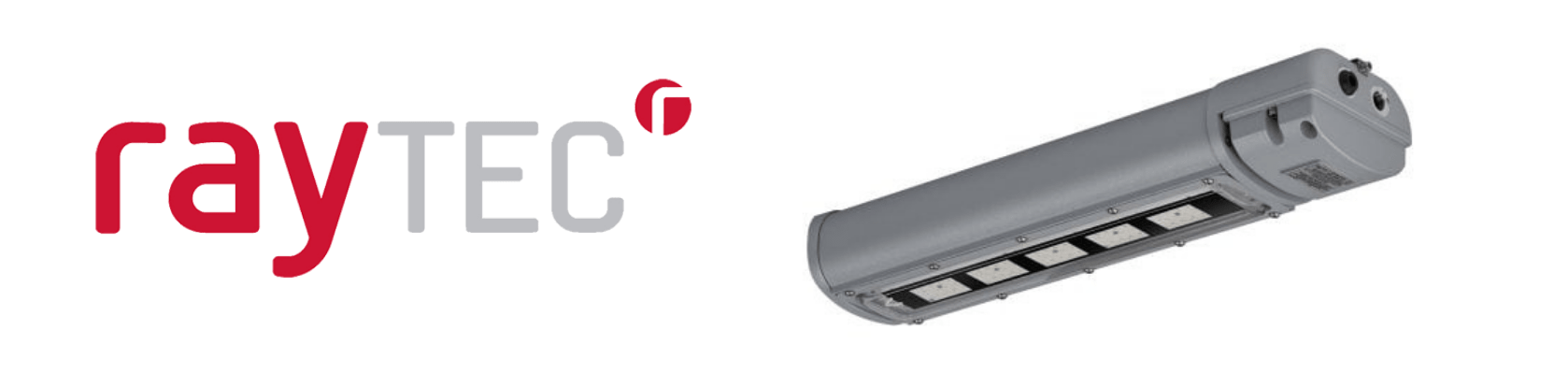

Raytec Spartan ATEX Light Fittings

Raytec Spartan ATEX Light Fittings

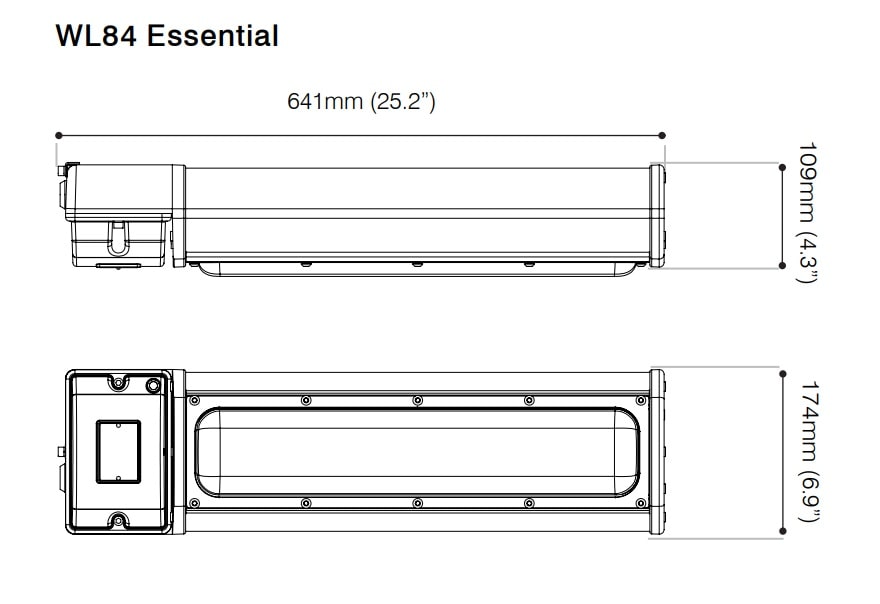

Zone 1 Light Fittings - Product Dimensions

Zone 1 Light Fittings – Product Dimensions

Raytec SPARTAN Light Fittings

Technical Specification

Certification: ATEX and IEC Ex rated for Zone 1 and 21 Gas and Dust. UKCA approved.
Beam Angles: 120°C, Equivalent to 2 x 18W T8 Fluorescent
Symmetrical and Asymmetrical Optics
Input: Mains Voltage 110-254V 50/60 Hz AC only
Low Voltage Option 18-48V AC/ 18-69V DC and Extra Low Voltage Option 12V AC/DC
Consumption: 24W
LED Type: Platinum SMT LEDs
Number of LEDs: 80
Power Output: Up to 3,065lm
Wavelength: White-Light (6,000K+)
IP Rating: IP66 and IP67
IK Rating: IK10
Temperature Range: -40°C to +60°C
Weight:  6kg (13.2lbs)


Lighting Fitting Dimensions

641 x 109 x 174mm (25.2 x 4.3 x 6.9″)

ATEX Lighting Hazardous Area Lighting Zone 1 Zone 2 ATEX

ATEX Lighting manufactured by Raytec for use in Zone 1 and Zone 2 hazardous areas – this includes floodlights, linear light fittings, bulkheads and high bay lighting for explosion protection concepts including Ex d Flameproof and Ex e Explosion Proof applications.
