Raytec WL168-1500 | Linear Light Fitting Zone 1 & Zone 21 6,130 Lumens
Zone 1 Light Fittings ATEX, UKEX & IEC Ex Rated for Gas & Dust Explosive Atmospheres
Linear Generation II | UKCA Approved
Hazardous Area Rating: Zone 1 – Gas & Dust
SPARTAN Linear range of Zone 1 light fittings form part of the ATEX Lighting range manufactured by Raytec and are designed for new hazardous area installations or to retrofit existing 2 x 58W fluorescent installations which require high performance, high reliability and white-light illumination in potentially explosive atmospheres.
The WL168-1500 light fittings are globally certified to Zone 1 offering long-life LED technology and offers a reduction in consumption from 116W (2x58W) to SPARTAN’s 68W – a saving of 41% per fitting.
Zone 1 Gas
- II 2 G D
- Ex eb mb IIC T4 Gb
- Ta= -40°C to+60°C
- (-20°C to +50°C for emergency variants)
Hazardous Area T Rating – T4 (T6 available on request)
Zone 21 Dust
- Ex tb IIIC T80OC Db
- Ta= -40°C to+60°C
- (-20°C to +50°C for emergency variants)
The overall dimensions, fixing centres and gland entries of the hazardous area lighting are compatible with common 2x58W fluorescents, with lumen output and light distribution also offering a direct replacement.
SPARTAN WL168-1500 Linear is available as a standard version only and is rated for T4, T5 and T6 environments (Zone 2 variants also available).
CoolXtrude™ thermal management technology ensures a lifetime of 10 years+ while providing a high lumen output of up to 6,130 delivered lumens. All SPARTAN lighting comes with an industry leading 5 year warranty as standard.
Raytec Spartan Linear WL168-1500 Zone 1 Hazardous Area 6,130 Lumens
Zone 1 Light Fittings
Features & Benefits
ATEX Light Fittings
- Raytec Part Number – SPX-WL168-1500
- ATEX & IEC Ex approved – – Zone 1 (Gas) & Zone 21 (Dust)
- UKCA approved
- Ultra Long Life LED
- High Lumen Output LED
- Fully Retrofittable

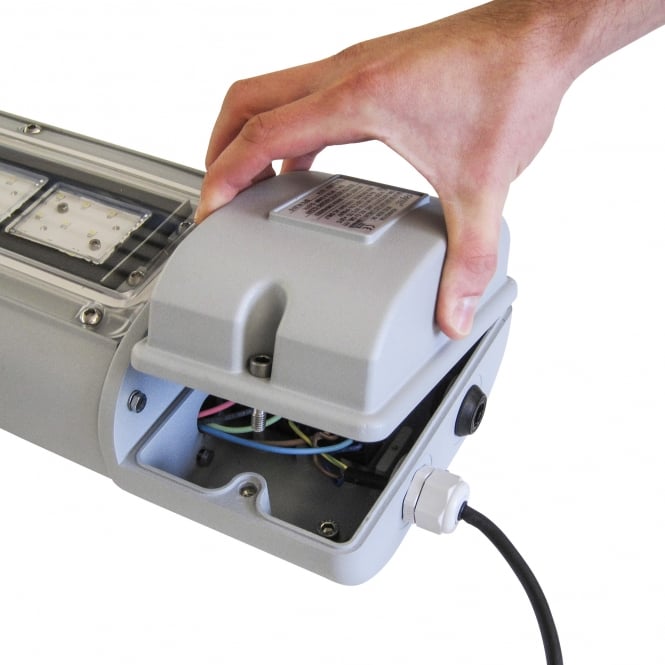

- Easy Installation and Maintenance
- Wide Operating Temp -40° to +60°
- Zone 2 Variants available
- 5 Year Warranty
- UK Designed and Manufactured
Raytec Spartan ATEX Light Fittings
Raytec SPARTAN Light Fittings
Technical Specification
| Certification: | ATEX and IEC Ex rated for Zone 1 and 21 Gas and Dust. UKCA approved. |
| Beam Angles: | 120°, Equivalent to 2 x 58W T8 Fluorescent |
| Input: | Mains Voltage 110-254V 50/60 Hz AC only Low Voltage Option 18-48V AC/ 18-69V DC and Extra Low Voltage Option 12V AC/DC |
| Consumption: | 56W |
| LED Type: | Platinum SMT LEDs |
| Number of LEDs: | 160 |
| Power Output: | Up to 6,130lm |
| Wavelength: | White-Light (6,000K+) |
| IP Rating: | IP66 and IP67 |
| IK Rating: | IK10 |
| Temperature Range: | -40°C to +60°C |
| Weight: | 9kg (19.8Ilbs) |
Light Fittings Dimensions
Standard
Metric – 1635 x 108 x 174mm
Imperial – 64.4 x 4.3 x 6.9”
| (2x58W / 5ft retrofit) |
Zone 1 Light Fittings Product Codes
| SPX-WL168-1500 | SPARTAN Linear 160 LED, Zone 1/21, White-Light (2x58W / 5ft retrofit) |
- 18-69V variants available, add -LV to the above codes
- 12V variants available, add -ELV to the above codes
ATEX Lighting manufactured by Raytec for use in Zone 1 and Zone 2 hazardous areas – this includes floodlights, linear light fittings, bulkheads and high bay lighting for explosion protection concepts including Ex d Flameproof and Ex e Explosion Proof applications.
