ATEX Tablet Zone 1 / Zone 21 & Div 1 Hazardous Area – Ecom TAB-EX 01 Android Tablet

ATEX Tablet Zone 1 Zone 21 & Div 1 Hazardous Area – Ecom TAB-EX 01 Android Tablet

ATEX Tablets

ECOM Tab-Ex 01

Zone 1 & Zone 21, Division 1 Hazardous Area Locations

***THIS PRODUCT HAS BEEN DISCONTINUED. The follow-up product is Ecom Tab-Ex 02 DZ1***

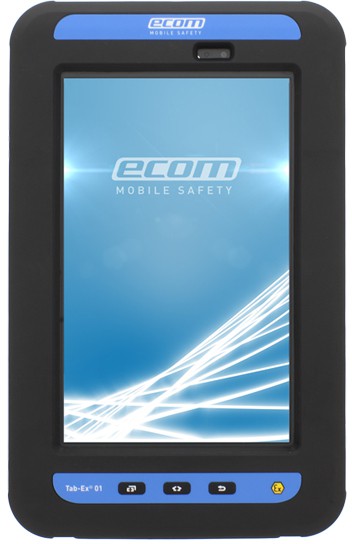

Ecom TAB-EX 01 is the world’s first hazardous area Zone 1/21 & DIV 1 tablet computer based on Samsung GALAXY Tab Active. Lightweight and compact this tablet, operates on Android™ 5.1.1 Lollipop (optionally 4.4.4 KitKat), the Ecom Tab-Ex® is suitable for multiple mobile worker roles performing a range of applications, such as Asset Surveys, Material Tracking, Operator Rounds, Inspection and Maintenance.

The 8“ android tablet screen enables standard desktop applications to become mobile in hazardous areas, allowing workers to view and interact with SCADA/DCS systems, enterprise systems (SAP, Maximo), and computer aided design systems. The Ecom TAB-EX 01 has the option for a built in camera and a full range of wireless capabilities as extras.

Hazardous Area Tablets With ATEX Certification For Cold Weather Environments

ATEX Tablet

Ecom TAB-Ex 01 Zone 1 Key Features

Ecom TAB-EX 01 tablet provides safe mobile communications for hazardous area workers:

Global certifications – including ATEX and IECEx one common platform
Android™ 5.1.1 Lollipop (optionally 4.4.4 KitKat) Operating System
Wireless capability as WWAN, 4G LTE*, WLAN, etc.
Front and rear camera (optional)
- 3 MP with rear camera Flash with Barcode Scanner capability
- 1.3 MP front camera
Reinforced security with Samsung KNOX™
Tablet accessories and peripherals to enable wide range of uses
Suitable for use with gloves
NFC technology for wireless applications
ATEX Tablet
GPS
Firmware Over-the-Air (FOTA)
Quad core 1.2 GHz processor
8” TFT display with 1280 x 800 pixels

Ecom TAB-EX 01 Android Tablet Zone 1

ATEX Android Tablet ZONE 1 HAZARDOUS AREA

ECOM TAB-EX 01 Android Tablet Technical Data

Ecom TAB-Ex 01 Tablet
Operating System	Android™ 5.1.1 Lollipop (optionally 4.4.4 KitKat)
Processor	Quad core 1.2 GHz processor
Memory and Storage	RAM 1.5 GB ROM 16 GB, with microSD up to 64 GB (optional)
Display	8″ TFT display with 1280 x 800 pixels
Environmental	Operating temperature -20 … +50 °C
Connectivity	4G LTE* (optional)
Bluetooth®	Bluetooth® SmartReady LE 4.0
Wireless LAN	802.11a/b/g/n
Power	up to 11 hours battery life / 4.450 mAh
Camera	3 MP with rear camera Flash with Barcode Scanner capability 1.3 MP front camera
Security	Samsung KNOX™ EMM (MDM+IAM) Secure file management H/W & S/W Secure platform
Programmable keys	Yes
Weight	1249,9g
Dimensions (W x H x D)	162,1 x 256,0 x 33,3 mm (without stylus holder) 162,1 x 271,9 x 33,3 mm (with stylus holder)
Hazardous Area Certifications
ATEX	II 2 GD, Ex db ia op is IIC T5 Gb, II 2D Ex tb IIIC T100°C Db, Ta = -20°C to +50°C
CSA	Class I, II, III, Division 1, Groups A-G T5, Class I, Zone 1 IIC T5, Zone 21 IIIC 100°C, Ta = -20°C to +50°C
IECEx	Ex db ia op is IIC T5 Gb, Ex tb IIIC T100°C Db, Ta = -20°C to +50°C
NCC (Brazil)	Ex db ia op is IIC T5 Gb, Ex tb IIIC T100°C Db, Ta = -20°C to +50°C

ATEX Tablet Zone 1 Zone 21 & Div 1 Hazardous Area – Ecom TAB-EX 01 Android Tablet

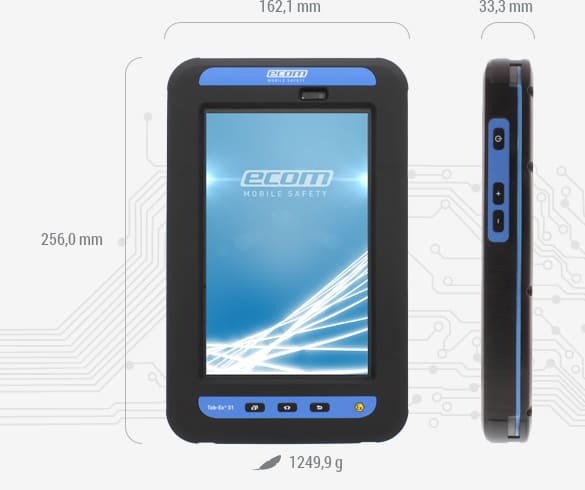

Ecom TAB-EX 01 Android Tablet Dimensions.

Ecom TAB-Ex 01 Zone 1 Android Tablet Dimensions.

Hazardous Area INTERNATIONAL Certifications

Ecom TAB-Ex 01 tablet is ATEX certified to most international hazardous area certification bodies:

ATEX (Europe)

II 2 GD
Ex db ia op is IIC T5 Gb
II 2D Ex tb IIIC T100°C Db
Ta = -20°C to +50°C

IECEx (International)

Ex db ia op is IIC T5 Gb
Ex tb IIIC T100°C Db
Ta = -20°C to +50°C

NCC (Brazil)

Ex db ia op is IIC T5 Gb
Ex tb IIIC T100°C Db
Ta = -20°C to +50°C

CSA (Northern America)

Class I, II, III, Division 1, Groups A-G T5
Class I, Zone 1 IIC T5, Zone 21 IIIC 100°C
Ta = -20°C to +50°C

Ecom TAB-EX 01 Android Tablet supplied with USB cable, charger, battery, safety box, stylus holder & pen as well as all the relevant documentation

T&D are Main Distributors for the complete range of Ecom Hazardous Area Mobile Communications & Computers – this includes mobile smartphones, tablets and handheld computers.
