Increased Safety | Hazardous Area LED Floodlight | ATX AMLGL6CG6BU

Appleton ATX AMLGL Hazardous Area Lighting

Appleton ATX AMLGL Areamaster Generation 2 Ex nA IIC

hazardous area LED FLOODLIGHT

Appleton atx Areamaster

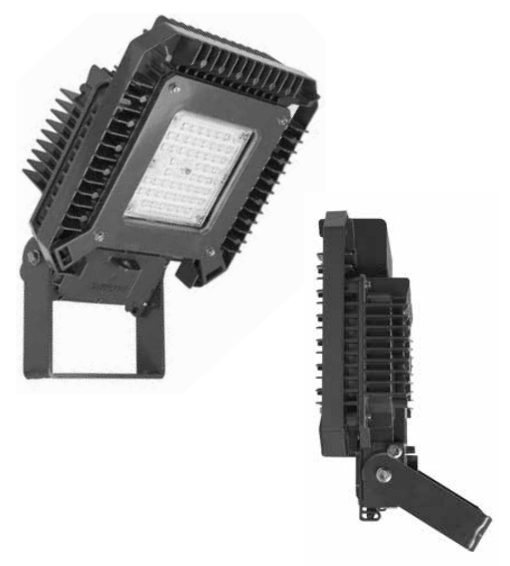

Appleton ATX AMLGL6CG6BU

Zone 2 (Gas) | Zone 21 & Zone 22 (Dust)

Areamaster Generation 2 Series Increased Safety LED Zone 2 LED Floodlights manufactured by Appleton ATX provides excellent LED performance for hazardous areas designated as Zone 2 (Gas) / Zone 21 and Zone 22 (Dust) locations with a three lumen outputs providing up to 19,500 lumens. The redesigned Areamaster floodlight provides greater versatility, with models from 9,000 to 19,500 lumens and a choice of beam patterns. The Areamaster Generation 2 LED floodlights provide HID-equivalent lighting that saves over 75 percent in energy costs and the floodlights are certified for both industrial and ordinary locations and rated for use in NEC and CEC installations. Enclosed and gasketed lighting fixtures suitable for use in a wide range of industrial, chemical processing and other hazardous areas where flammable gases and vapors (explosive atmospheres) are present or where wet, dirty and tough environments are a problem.

Product: LED Floodlight – Increased Safety
Light Fitting Type: LED Floodlight
Manufacturer: Appleton ATX
Range: Appleton Areamaster AMLGL
Technology: LED Lighting
Lumen Output: 9900 lumens
Optical Pattern: NEMA 7×7 (150°x150°)
Efficacy: 141 lpw
Voltage Range: BU: 120-277 Vac, 50/60 Hz, 170-300 VDC
Input Power: 70 Watts
Temperature Rating: T4 @ 65ºC (149°F)
Ambient Temperature: -40°C up to +65°C (-40°F up to +149°F)
LED Floodlight Weight: 9.8 kg (22 lbs)
Standard 6KV surge protection
M20 Cable Entry
ATX AMLGL6CG6BU is ideal for use in Zone 2 and Zone 21 and Zone 22 hazardous area locations
Hazardous Area Certified: ATEX & IECEx
Floodlights ATEX Zone 1 | Floodlights ATEX Zone 2
Light Fittings ATEX Zone 1 | Light Fittings ATEX Zone 2

➡ Read Blog: Appleton Areamaster Zone 1 LED Floodlight for Hazardous Area Lighting (Video)

ZONE 2 (GAS) | ZONE 21 & ZONE 22 (DUST)

LED LIGHTING

It is always important for worker safety to have the correct illumination. Lighting choices are especially critical in hazardous area locations, where correct illumination is a must, with superior explosion protection and increased safety. Hazardous area floodlighting is an excellent way to brighten work areas, open spaces, roadways, process areas. The NEMA 7×6 pattern provides maximum width and forward throw for wider illumination spread, while the NEMA 5×5 pattern is an excellent choice for delivering light from a high mount. Visors, guards, and 3000K color temperature are all available and can be used to create Dark Sky friendly lighting solutions.

LED Floodlight	Colour Temperature (CCT)	Lumen Output	Wattage	Efficacy (lm/W)	Optical Pattern	Product Code
Clear Glass	120-277 Vac/170-300 Vdc – 5000K (cool white)	9900 Lumens	70 Watts	141 (Lumens/Watts)	NEMA 7×7 (150°x150°)	AMLGL6CG6BU

ORDERING LED LIGHT FITTINGS

The following Appleton ATX part number generator explains the process for selecting the correct LED light for Zone 1 & Zone 2 hazardous area lighting applications using the AMLGL range of LED floodlights.

AMLG	L6	C	G	6	BU	–
LED Floodlight Series: AMLG- Areamaster 2 LED IAMLG: Industrial Areamaster 2 LED Series	Lumen Output: L6 – 9K L7 – 15K L8 – 19K	Color Temp CCT: C – 5000K W – 3000K	Diffusion: G – Clear Glass F – Frosted Glass D – Diffused Polycarbonate	Beam Spread: 6 – 7×7 (non-optic) 7 – 7×6	Voltage: BU – 120-277 Vac 50/60 Hz, 170-300Vdc BH – 347-480Vac 50/60 Hz	Options: F – Fusing S – 10 KV Surge Protection M – M20 Metric
