Deeter DE22-1A01 Float Switch – PVC 1/8 NPT, 1 Watt, 24V, 0.1A Form A SPST
Float Switches & Liquid Level Sensors
Deeter DE22-1A01 FLOAT SWITCH
- Designed for cost sensitive high volume OEM applications.
- High reliability reed switch lifetime of 5 x 107 operations.
- Available in UL/WRC listed PVC, Polypropylene, Nylon and Acetal materials.
- Change from N/O to N/C by inverting float.
- Ideal for beverage, automotive and consumer applications
Download the Deeter 20 Series Datasheet and view the full range of Deeter level sensors and float switches.

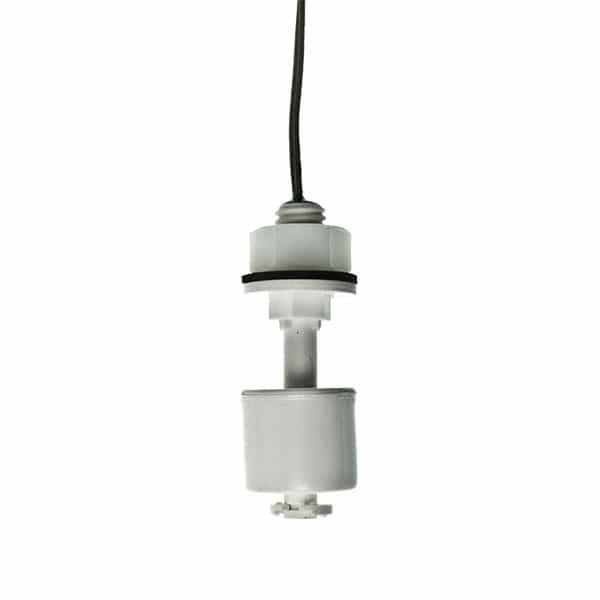

Deeter DE22-1A01 Float Switch & Liquid Level Sensor
MECHANICAL SPECIFICATION
•M10 or 1/8” NPT Thread
•200mm Cable length
(custom lengths available)
•0.1A switching current max.
•Float Specific Gravity
PVC (0.63)
Polypropylene (0.49)
Nylon (0.50)
Acetal (0.62)
•M10 supplied with nut and washer
ELECTRICAL SPECIFICATION
•Form A switch.
•24v DC switching volt max.
•0.1A switching current max.
•1 Watt max.
•150v DC breakdown voltage min.
•7/0.2mm PVC insulated cable
•7/0.2mm PTFE insulated cable with
Acetal switch
