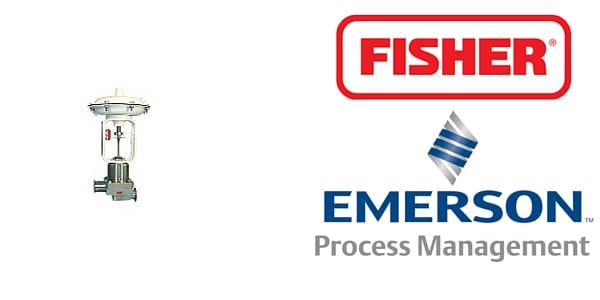

Fisher Baumann 84000 Valve – Sanitary Control Valves

Fisher Baumann 84000 Valve - Sanitary Control Valves

Fisher Baumann 84000 Valve – Sanitary Control Valves

Fisher Baumann 84000 valve is a sanitary control valve that has high rangeability sanitary aseptic closure diaphragm control valve.

84000 sanitary control valve is designed to meet the high demands of the pharmaceutical and biotechnology industries.

8400 valves have a uniquely shaped diaphragm, unlike plug style sanitary valves thos results in low shear forces in the flow stream. This minimizing possible damage to delicate bio-media or altering the consistency of end product.

Fisher Baumann 84000 valve can handle temperatures of up to 160°C and is compliant with 3A Sanitary Standards.

Fisher Baumann 84000 Valve – Product Features

  • Electropolished internal surfaces
  • USP 24 Class VI PTFE, EPDM backed diaphragm
  • Designed for Clean-in-Place (CIP) and Sanitize-in-Place (SIP) service
  • Self-draining in preferred mounting mode
  • Compact size
  • FDA approved epoxy powder-coated actuator with stainless steel fasteners for maximum corrosion resistance
  • Multi-spring field-reversible actuators with reduced deadband permits direct operation from remote signal devices
  • Fisher® FIELDVUETM digital valve controller available for remote calibration and diagnostics in facilities utilizing the PlantWebTM architecture



FISHER BAUMANN 84000 VALVE

PRODUCT Specification

Sanitary Control Valve Size NPS 1, 1-1/2, 2
Connections Tri-Clamp or optional welding ends
Valve Body Material 316L SS
Valve Body Rating 150 psig CWP
Trim Material PTFE covered EPDM elastomer
Trim Characteristic Modified Equal %
Seat Leakage ANSI/FCI 70-2 Class VI
Cv Ratings 2 to 43
Bonnet Type Standard bolted (NPS 1), or quick release clamped (NPS 1-1/2 & 2)
Packing Material Packless
Temperature Range -18ºC to 160ºC  (0ºF to 320ºF)

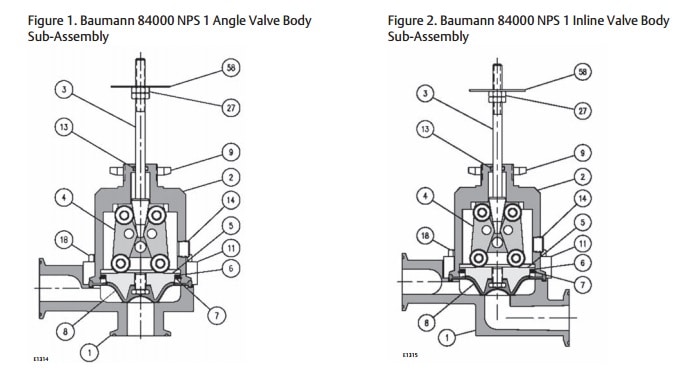

Fisher Baumann 84000 Valve – Sanitary Control Valves – Materials of Construction

Fisher Baumann 84000 Valve - Sanitary Control Valves

Fisher Baumann 84000 Valve – Sanitary Control Valves



Key Number Description Material
1 Valve Body ASTM A479 S31603 stainless steel, annealed
2 Bonnet ASTM A479 S30400 Annealed
3 Piston Stem Sub-assembly Stainless Steel
4 Drive Mechanism Sub-assembly Multiple (predominantly stainless steel)
5 Compressor 5 Compressor S30300 or S30400 stainless steel
6 Wave Spring S17700 stainless steel
7 Retaining Ring S30200 stainless steel
8 Diaphragm, Closure Member PTFE face with Aramid fabric reinforced EPDM backing and S30400 stainless steel insert. Diaphragm assembly conforms to FDA 21CFR 177.1550 and USP24 Class VI standards
9 Drive Nut, Yoke S30400 stainless steel
11 Bonnet Flange ASTM A240 S30400 stainless steel
13 O-Ring, Stem FKM fluorocarbon
14 Tell Tale Port S31600 stainless steel
18 Hex Head Cap Screw Grade B8, Class 1
49 Locknuts S30400 stainless steel
58 Travel Indicator S30400 stainless steel
