Fisher Baumann 89000 Valve – Sanitary Control Valves

Fisher Baumann 89000 Valve - Sanitary Control Valves

Fisher Baumann 89000 Valve – Sanitary Control Valves

Fisher Baumann 89000 valve is a sanitary control valve that provides control solutions for various sanitary process systems. The 89000 valve is fitted with a high lift metal plug making it suitable for use in the life science and food & beverage industries.

The 89000 valves have a modular design allowing for quick assembly and easy maintenance and calibration.

Fisher Baumann 89000 valve meets FDA and USP CLVI standards and is suitable for applications where cleanliness and sterility are a prerequisite.

Fisher Baumann 89000 Valve – Product Features

  • Sizes ranging from NPS 1/2 to 6
  • Elastomers meet FDA and USP CLVI standards
  • Internal surface finish of 20 Ra (0.5 μm) available
  • Stainless steel diaphragm actuators with an electropolish finish come standard
  • Actuators are optimally matched to each valve size to suit many processes
  • A robust stainless steel yoke construction connects the valve with its actuator and allows the Fisher® FIELDVUETM digital valve controller to be attached
  • The entire valve assembly can be easily disassembled for inspection and maintenance

FISHER BAUMANN 89000 VALVE

PRODUCT Specification

Sanitary Control Valve Size NPS 1/2 thru 6
Connections Tri-Clamp standard (Weld Ends, ISO Clamps and others available)
Valve Body Material 316L SS
Valve Body Rating 250 psi
Trim Material 316L SS (Class IV)
Trim Characteristic Modified Equal Percentage
Seat Leakage ANSI/FCI 70-2, Class IV (Metal Seat)
Cv Ratings 0.20 to 442
Bonnet Type Tri-Clamp
Packing Material EPDM O-Ring Standard
Temperature Range Fluids & Gases (Non-Steam):  275ºF Steam:  320°F

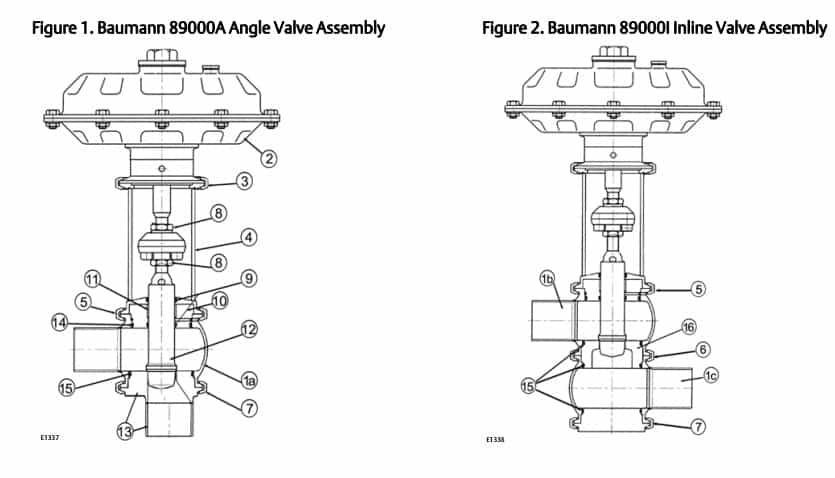

Fisher Baumann 89000 Valve – Sanitary Control Valves – Materials of Construction

Fisher Baumann 89000 Valve - Sanitary Control Valves

Fisher Baumann 89000 Valve – Sanitary Control Valves



Key Number Description Material
1a Angle Valve Body S31603 Stainless Steel
1b Upper Inline Valve Body
1c Lower Inline Valve Body
2 Diaphragm Actuator S30400 Stainless Steel
3 Actuator Clamp
4 Yoke
5 Upper Body Clamp
6 Middle Body Clamp
7 Lower Body Clamp
8 Stem Locknut
9 O-Ring EPDM
10 Bonnet S31603 Stainless Steel
11 Bearing PTFE/Bronze
12 Valve Plug with Seat S31603 Stainless Steel
13 Angle Valve Seat/Lower Pipe Connection (1pc
14 O-Ring EPDM
15 O-Ring
16 Inline Valve Seat S31603 Stainless Steel
