hydronic high performance Heater
Hazloc hHp2-30
Hazloc HHP2-30 hydronic high performance heater is an industrial grade heater which form a part of the Hazloc Heaters HHP2 range of heat-exchanger unit heaters which are designed to meet the most demanding requirements of heavy industry.
The harsh operating conditions of these industrial areas require heating equipment that is safe, reliable and dependable. The rugged design features of the HHP2 series of heaters also makes it ideal for use in heavy-duty industries that include oil & gas, pulp & paper, power generation, mining, steel mills, foundries, water and wastewater treatment plants, chemical plants, and hazardous material storage facilities.
Industrial Grade Heaters by Hazloc
HAZLOC hHp2-30
SPECIFICATION
Horizontal and Vertical Projection Models – This range of hydronic high performance heaters, manufactured by Hazloc, are available in either horizontal or vertical projection models to suit many different applications. The horizontal model is available in 12 to 30 inch fan sizes, while the vertical option is available in 12 to 24 inch fan sizes, with optional nozzle and four or two way louvres.
➡ Hazloc HHP2-30 is only available as horizontal projection.
Hazloc HHP2 Hydronic High Performance Heater Model Variants
| Model | HHP2-30 |
| Fan Diameter | 30″ (762.0 mm) |
| Air Delivery* | 7300 cfm (12403 m³/hr) |
| Motor Power | 1 hp (746 watts) |
| Horizontal Projection Type with One-Way Louvres | |
| Horizontal Air Velocity * | 1715 fpm (8.7 m/s) |
| Horizontal Air Throw*† | 78 ft (23.8 m) |
| Max. Mounting Height*† | 24 ft (7.3 m) |
| Weights and Shipping Crate Dimensions (wood packaging material is in compliance with ISPM No. 15) |
|
| Net before adders – lbs (kg) | 168 (76.2) |
| Shipping before adders – lbs (kg) | 227 (103.0) |
| Add for flanges – lbs (kg) | 16 (7.3) |
| Add for nozzle – lbs (kg) | 19 (8.6) |
| Add for four-way louvre – lbs (kg) | 10 (4.5) |
| Crate W x D x H – in. (mm) | 35.5 x 29.5 x 35.75 (902 x 749 x 908) |
* At 70°F (21°C), 60 Hz and sea level.
† The Air throws, Spreads and Max. Mounting heights listed above are based on an air temperature rise (∆T) of 40°F.
General Specifications for HHP2-20 20” Fan Size Hydronic High Performance Heater
1. Pressure/Temperature Ratings
Pressure = 450 psig (3103 kPa)
Temperature = 550°F (288°C)
MDMT = – 20° F (-29° C)
2. Heater Materials
Cabinet: 14 Ga, Yellow Epoxy/Polyester Powder Coated
Core: Carbon Steel with Copper-free Aluminium Fins
Louvres: Anodised Extruded Aluminium
3. Fluid Connections
1-1/2 in. NPT male Schedule 40 inlet and outlet. Optional 1–1/2″ (4 bolt) & 2″ (8 bolt) CL300# RF flanges available.
4. Mounting
9/16 in. diameter holes – Two at top and two at bottom of heater
5. Fan
Six-blade spark-proof aluminium fan blade with easy-off replacement feature
6. Fan Guard
Split design with close wire spacing. A 3/8 in.
(9.5 mm) diameter probe will not enter
7. Ex-Proof Motors
Class I, Divisions 1 & 2, Groups C & D
Class II, Divisions 1 & 2, Groups F & G
Temperature Code T3B
♦ See T Class Ratings | Hazardous Area Zones
NEMA motors are designed to be operated at rated voltage with tolerances of ± 10%. If the motor is marked 208-230V
the tolerance must be calculated from 230V. If motor is marked 230V it is still suitable for 208V operation but the tolerance must be calculated from 230V. For 3-phase motors the line-to-line full load voltage must be balanced within 1%. Standard Marathon NEMA ex-proof motor is suitable for hazardous area Class I & II, Div. 1 & 2, Groups C, D, F & G; T3B; Maximum ambient air temp of 40°C.

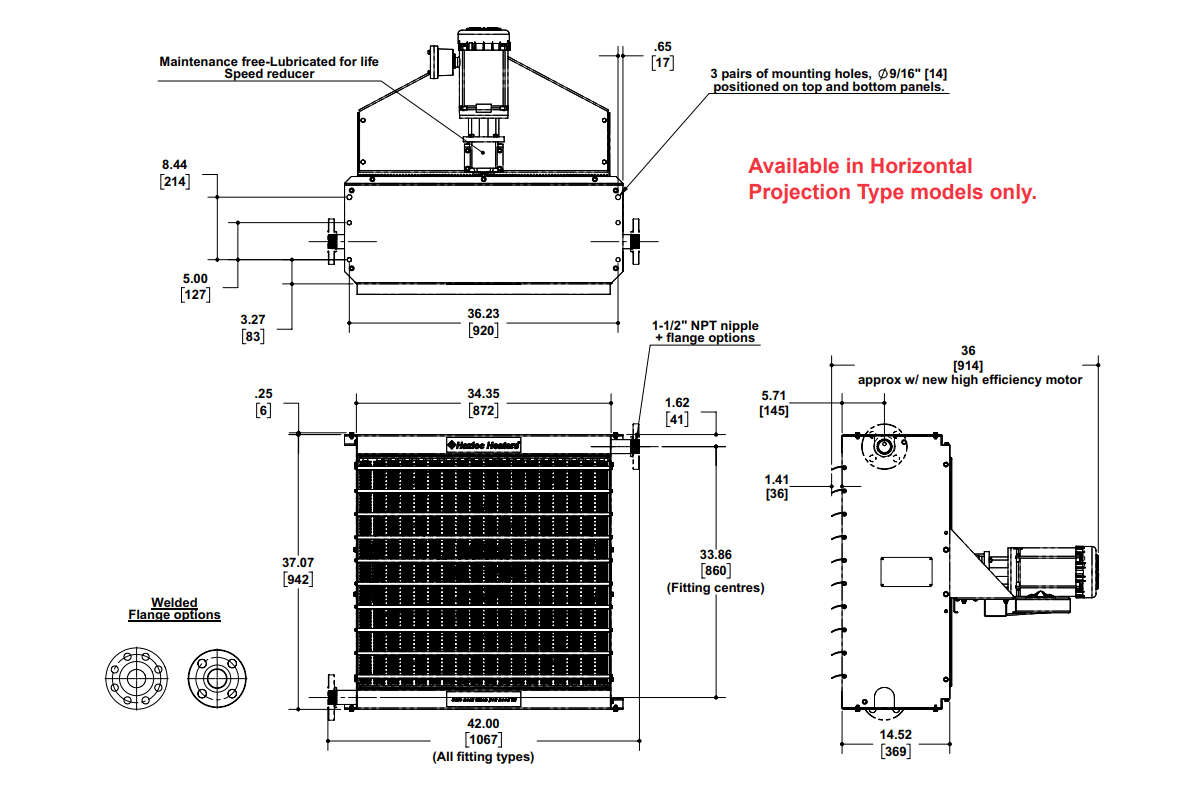

Hazloc HHP2-30 Industrial Hydronic High Performance Heater | Dimensions
