Oldham Caplamp AE16 – Hazardous Area Group 1 Mining M1 ATEX Lamps

ATEX Certified ◊ Group 1 Mining ◊ Hazardous Areas

Oldham Caplamps are Hazardous Area Group 1 Mining Caplamps for safe use in underground hazardous location mines and non-hazardous (hard-rock) type mines.

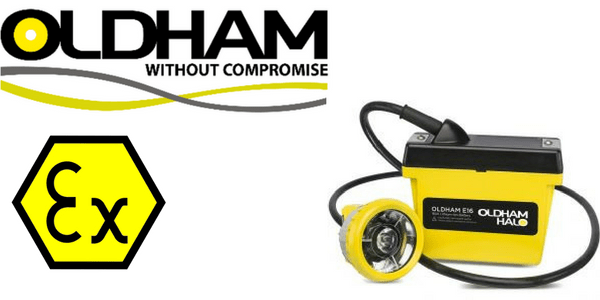

Oldham Caplamp AE16 combines reliability and rugged construction with the latest industry standard A-Series lamp headpiece with the smaller and lighter lithium-ion (li-ion) L9 battery pack.

The Oldham AE16 is not certified against mining safety standards and is therefore only recommended for use in hard-rock mining and tunnelling or other non-hazardous mining applications.

Oldham Caplamp AE16 ATEX Lamps – Features & Benefits

• Extreme lightweight of the Lithium-ion battery – reduced weight for user to carry, less fatigue.
• Lithium-ion battery does not suffer from “memory effect” – full capacity available every time after recharge.
• Lithium-ion battery has low self-discharge rate – long caplamp shelf life if stored during mine down-time.
• Rugged battery and headpiece design – longer life expectancy, even in the harshest environments.
• Increased safety “M1” hazard certification – Certified for use in M1 recognised hazard environments.
• Maintenance-free battery design – Reduced lamproom maintenance requirements.
• Maintenance-free “A-type” headpiece – No downtime due to maintenance or failed light source.
• 53 lumen output focussed over 4.5 degrees angle – High intensity light concentrated in the operator’s field of vision
• Dual reflector technology – Optimum focus of LED for precise and intense illumination.
• Genuine 3 Watt LED main light source – Greater light output intensity, superior to any competitor.
• Inter-modular battery and lamptop design – fully compatible & interchangeable with other Oldham products.

OLDHAM CAPLAMP AE16 ATEX LAMPS – Technical Specification

Oldham Caplamp AE16 – Hazardous Area Group 1 Mining M2 ATEX Lamps – “A Type” Headpiece & Cable Specification
Number of LEDs	2 (1 main, 1 auxiliary)
Main LED Rating	4.1V-3W 53 lumens ~12 hour shift
Auxillary LED Rating	0.08 watts
Type of Cable	Flexible twin core short lay polychloroprene sheath
Light Output	1200 lux at 1.0m
Max. beam intensity over 4.5º	10,000cd
Angle Over Which Intensity Is Not Less Than 1 Candela	120º
Burning Time With Auxillary Light	500 hours
Fuse Rating	3A
Length of Battery (At Base / At Lid)	111 / 152mm
Height of Battery Terminals / Cover	95 / 125mm
Width of Battery	55mm
Battery Case & Cover Material	Polycarbonate
Nominal Battery Voltage	4.20V
Numbers of Cells	8
Capacity to 3.3 Volts	E9 = 9Ah / E16 = 16 Ah
Lamp Weight	AE16 = 0.960kg
Maintenance	None – Maintenance Free
Charging	Care should be taken to recharge the AE16 lamp with Oldham approved multi-stage micro-processor chargers in order to achieve maximum life and performance.
Hazardous Area Classification	TS09ATEX2613 M 1 Ex ia I Tamb = OºC to +40ºC



OLDHAM CAPLAMP AE16 ATEX LAMPS

Battery & Caplamp PArt Numbers

• E9 Lithium-Ion Battery M456523
• AE16 Lamp (M1 certified safety lamp) M262751
• Single Lamp Charger M656501
• 10-Lamp Charger M656601

Group 1 Mining Lamps

Category M0, M1 & M2 Underground Coal Mining Hazardous Area Location Caplamps

Group 1 mining locations refer to underground coal mining areas and parts of surface mines liable to exposure of firedamp (methane) and/or combustible dusts. The 3 risk levels of explosion protection according to Group 1 are:

• Mining Category M2 Occasional Short Duration Risk
• Mining Category M1 Frequent Risk In Normal Operation
• Mining Category M0 Permanent Risk, Continually Present
